15kw Purlin Rolling Machine Hydraulic Cutting C Section Roll Forming Machine
15kw Hydraulic Cutting Automatic Purlin Roll Forming Machine With PLC
1. Description of C U Z Purlin Roll Forming Machine
Our purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically. Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.
2. Specifications of C U Z Purlin Roll Forming Machine
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 10m x 1.4m x 1.8m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5-3.0mm |
| Coil width | According to products size |
| Yield strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 14-16 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 10-15m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | Gcr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main motor power: 15kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customers requirement |

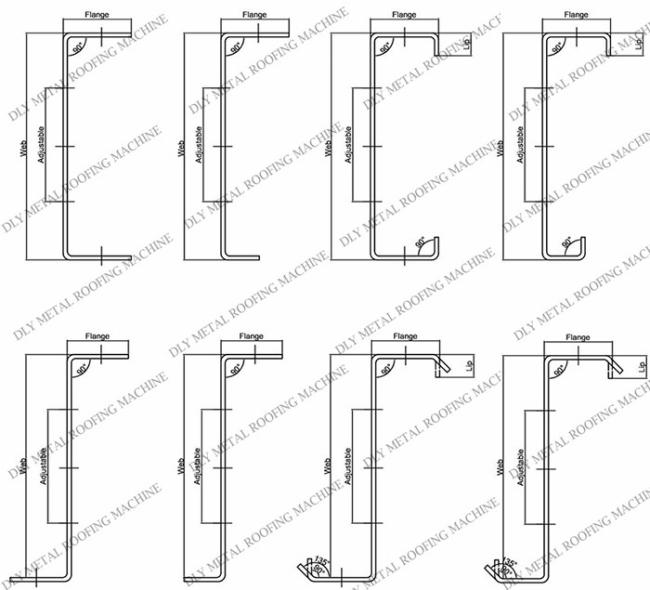

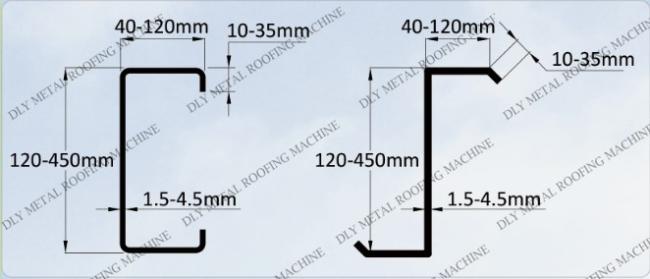

3. Profiles of C U Z Purlin Roll Forming Machine
4. Advantages of C U Z Purlin Roll Forming Machine
- 【Machine Long Lifer】Rollers are made from Cr12 mould steel being quenched treatment, HRC58-60, CNC machine tooled to increase rollers precision.
- 【High Efficiency】15-18m per minute. Produce 7000m per shift for 8 hours one day.
- 【High Preision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
- 【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system. Friendly man-machine interaction.
- 【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

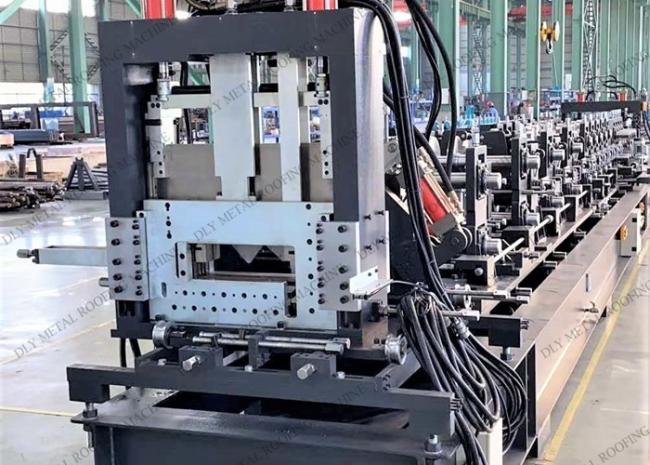

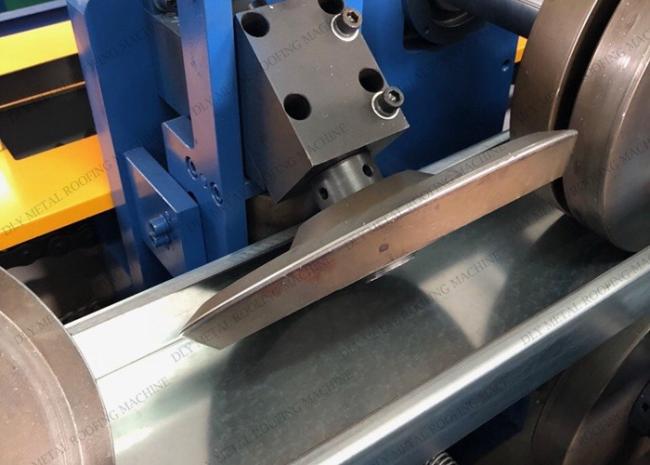

5. Detail photos of C U Z Purlin Roll Forming Machine
