Automatic 80mm Trapezoidal Roll Forming Machine 380V Glazed Tile Making Machine
Automatic 380V 50HZ Trapezoidal Roll Forming Machine With Hydraulic Cutting
1. Brief introduction of Trapezoidal Roll Forming Machine
Roll forming machines for the automotive, building, home appliances, energy, infrastructures, logistics sectors
Our products in the rollforming field include a large range of standard and customised machines that can meet all the requirements of the forming sector.
Our rollforming lines are fast, precise and flexible, and enable us to produce profiles for all industrial sectors, starting from coils with thickness ranging from 0.3 to 16 millimetres.
2. Description of Trapezoidal Roll Forming Machine
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm & 1450mm |
| Yield Strength | 235Mpa-550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 24 |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. After-Sale Service of Trapezoidal Roll Forming Machine
- The warranty is 24 months after the client receives the machine.
- Within The 24months, we will courier the replacement parts to the client free of charge
- We offer technical support for the entire life of our machines
- We can send our technicians to install and train the workers in the clients' factories with extra cost

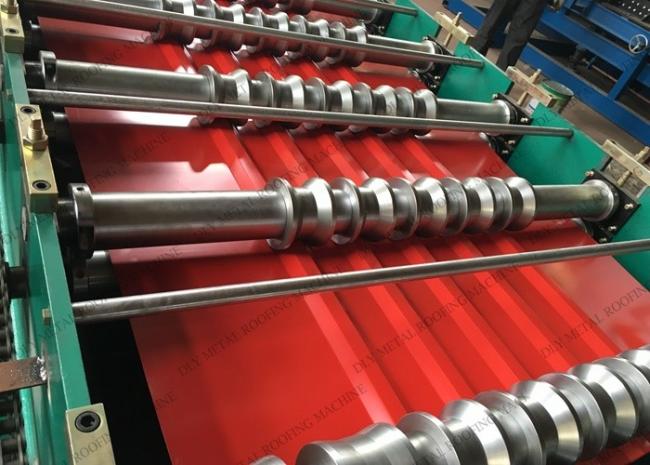

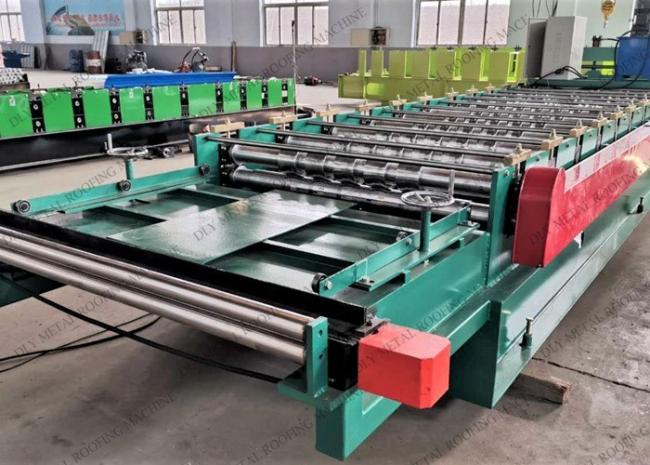

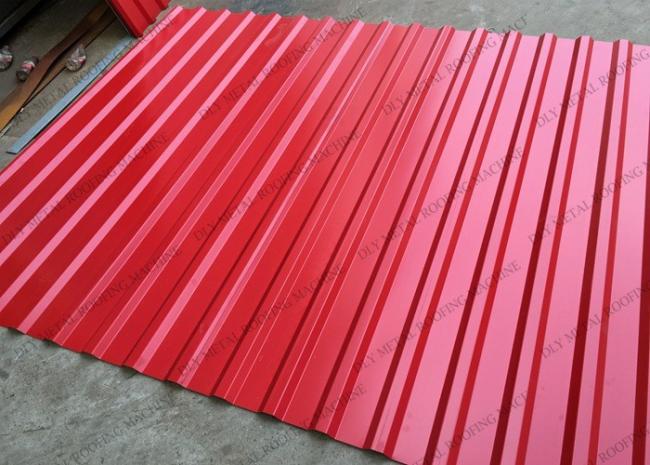

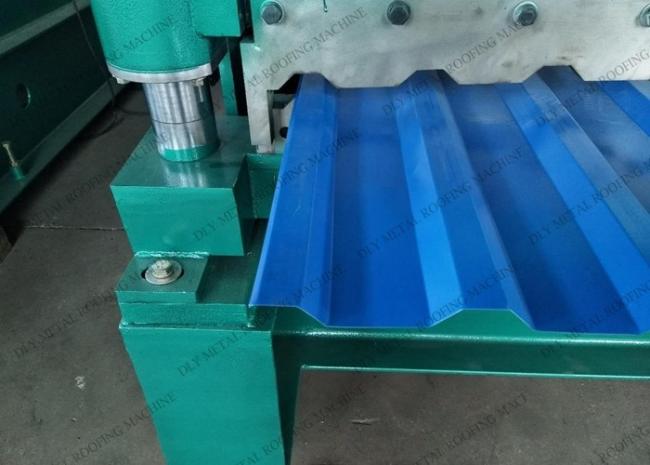

4. Detail photos of Trapezoidal Roll Forming Machine
