PLC Trapezoidal Roll Forming Machine 3P Aluminium Corrugation Machine
Metal Roofing 15kw PLC Trapezoidal Roll Forming Machine With Hydraulic Cutting
1. Brief introduction of Trapezoidal Roll Forming Machine
A trapezoidal sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.
Trapezoidal roofing sheets are the most popular metal roof panels not only for residential buildings but also for commercial or industrial buildings. There are so many different profiles for a variety of applications. People like to use low-profile trapezoidal sheets for elevation and IDT roofing, while for wide-span roofing and load-bearing structures, they tend to select high-profile trapezoidal sheets. In addition, trapezoidal sheets have other names in Africa as industrial trough IT4, IT5, IT6 roof profiles, therefore people can barely find two exactly the same trapezoidal sheet roll forming machine in the markets.
2. Description of Trapezoidal Roll Forming Machine
|
No.
|
Aluzinc calaminon trapezoid metal roof forming machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
13Rows
|
|
3
|
Dimensions
|
6.5*1.55*1.6m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4200kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
3. After-Sale Service of Trapezoidal Roll Forming Machine
- Warranty :Two years,and we will provide technical support for whole life of the equipment.
- Delivery time: Within 25 days after deposit receipt your payment
- Guarantee period: 24months free service/ pay service all the machine life
- Installation and training: If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.

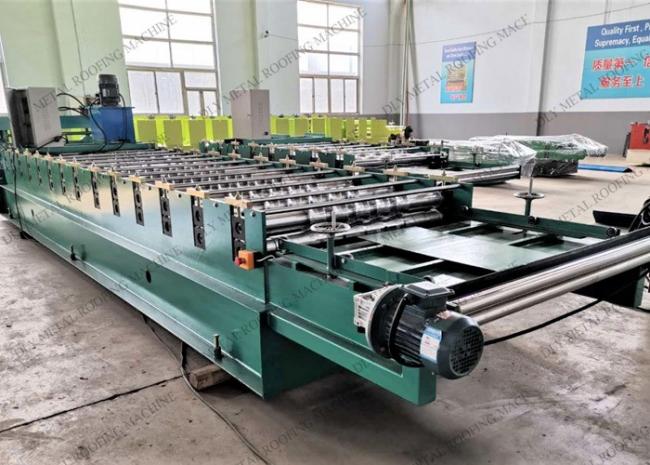

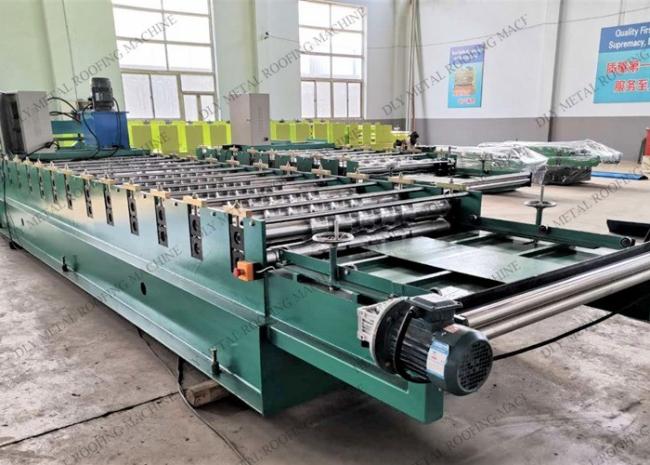

4. Detail photos of Trapezoidal Roll Forming Machine
