5.5kw Roofing Forming Machine Gi PLC Roofing Sheet Manufacturing Machine
Hydraulic Cutting 5.5kw Galvanized Steel Roofing Forming Machine With PLC
1. Description of Roofing Forming Machine
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
2. Specifications of Roofing Forming Machine
| Main Forming machine | Forming steps | 13 steps |
| Shaft diameter | 70mm | |
| Machine stand | Individual Arch Plate | |
| Machine frame | steel plate welded | |
| roller material | 45#steel | |
| shaft material | 45# steel with quenching and tempering | |
| Work speed | 0-15m/min | |
| Transport | By chains | |
| Power of main machine | 4kw | |
| Voltage | 380V-50HZ-3P(as required) | |
| Machine dimension | 6.5*1.5*1.2m | |
| Machine weight | About 3.5T | |
| Machine color | Yellow and blue(as required) | |
|
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. |
||
3. Feathers of Roofing Forming Machine
- Normally at the coil feeding system, we will give manual cutter then you can remove the untidy part coil or cut at any length.
- We Will use the rubber roller at leveling part to protect the coil surface.
- We will add two more gears for feeding coil smoothly.
- For the roller, we will do the chroming for long time use and beautiful.
- For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
- Use special special design of cutting system for cutting fast and the cutter can use long time.
- Good quality hydraulic jacks.
- Use strong thickness frame and holder.
- We will give remoter for control machine easily.
4. Production Flow of Roofing Forming Machine
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

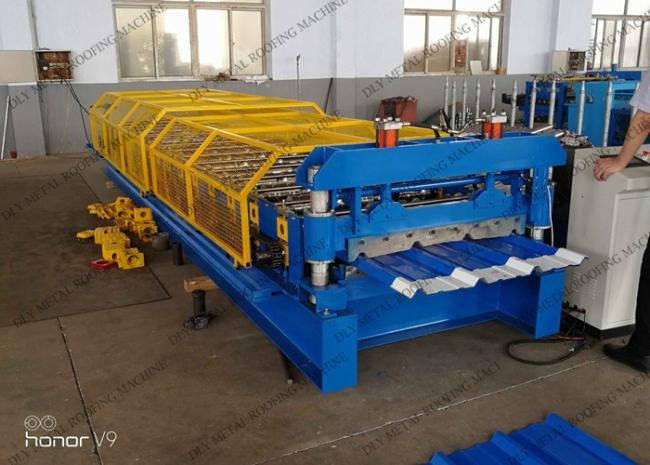

5. Details of Our Roofing Forming Machine
