380v 5.5kw Gutter Square Pipe Profiling Machine For PPGI

1. Description of Pipe Profiling Machine

Square downpipe rain pipe rolling forming machine is designed to make the rain pipe in batch fully automatically.
Our downspout pipe making machine could be used to make downspout pipes in a higher speed and good quality. For this machine, we take guide column frame style to make machine for making sure machine working speed and steady. And for the transmission, we will use gearbox with chain.

2. Specifications of Pipe Profiling Machine

Specifications

• Thickness of material : 0.8 mm ~ 2.5 mm
• Forming speed: 12~16 m/min.
• Hydraulic driving, cutting, notching, leveler system.
• Hard chrome coated rollers.

Advantages

• Customized profile and suggestions.
• Material handling solutions.
• Logo Marking.
• Full safety protection with cover guard, emergency switches, mistake proofing program.

Passive uncoil— Feeding—Roll forming—Cut to length—Output table—Elbow with pipe

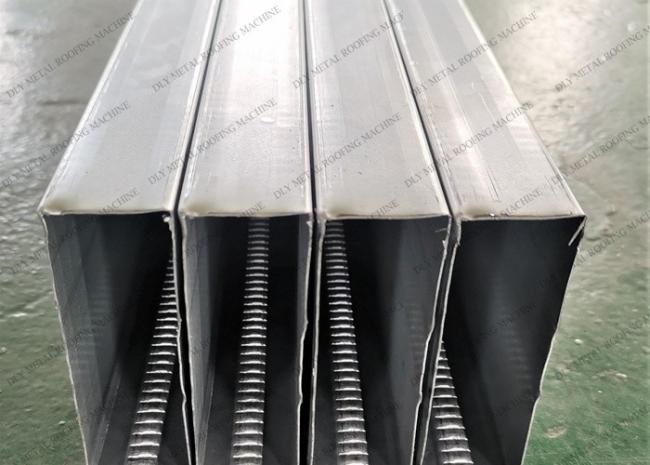

4. Detail Photos of Pipe Profiling Machine

The processing and detail of each part, the assembly of the machine, all determine the quality of a machine. We strive to do a good job in every link, every process, so that the machine in the process of use can be more stable, longer service life.
