Automatic 50Hz Metal Roofing Roller 0.8mm Standing Seam Rolling Machine
TR20 Trapezoidal Metal Roofing Roll Forming Machine 380V With PLC Automatic
1. Description of Roofing Forming Machine
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
2. Specifications of Roofing Forming Machine
| Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| Processing thickness (mm) | 0.3-1.0mm or as your customized |
| Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Material of shafts | 45# steel |
| Diameter of shafts | 70mm or as your customized |
| Forming speed | 8-12 m/min or as your customized |
| Under frame | 350 H-beam |
| Sidewall | 16mm |
| Connect bar | 25mm, zinc plated |
| Forming steps | 10-18 or as your customized |
| Control system | Delta PLC and Inverter |
| Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| Drive mode | Chain and sprocket, chain size 1 inch |
| Main motor | 3-5.5kw |
| Hydraulic pump station | 3-5.5kw |
| Cutting model | Hydraulic profile cutting |
| Dimension of the machine | 7.5m-11m×1.5mm×1.2m |
| Weight of the machine | 3.5 ton -6 ton |
3. Feathers of Roofing Forming Machine
- We Will use the rubber roller at leveling part to protect the coil surface.
- We will add two more gears for feeding coil smoothly.
- For the roller, we will do the chroming for long time use and beautiful.
- For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
- Use special special design of cutting system for cutting fast and the cutter can use long time.
- Good quality hydraulic jacks.
- Use strong thickness frame and holder.
- We will give remoter for control machine easily.
4. Production Flow of Roofing Forming Machine
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

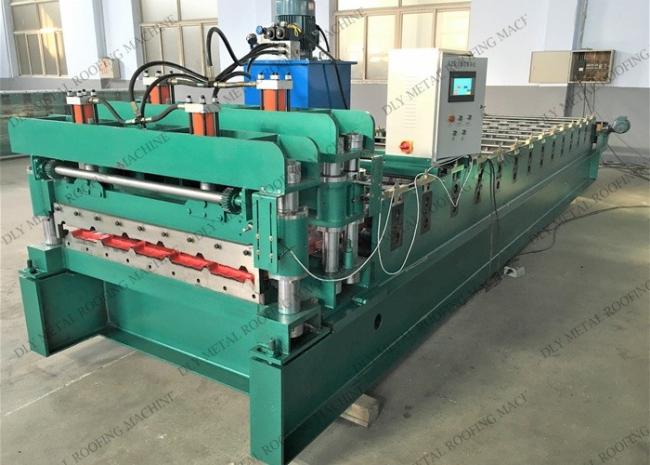

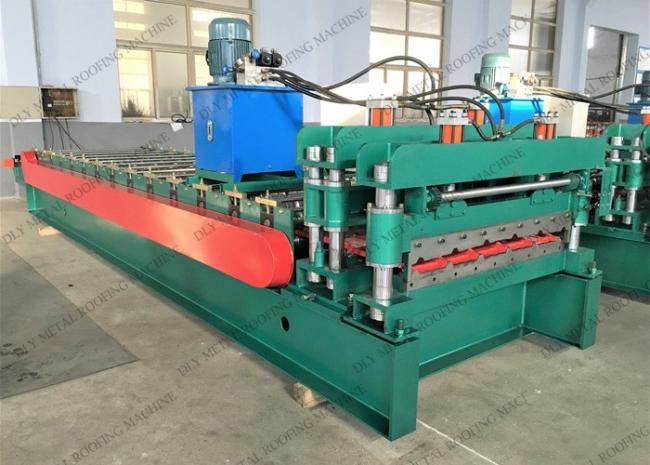

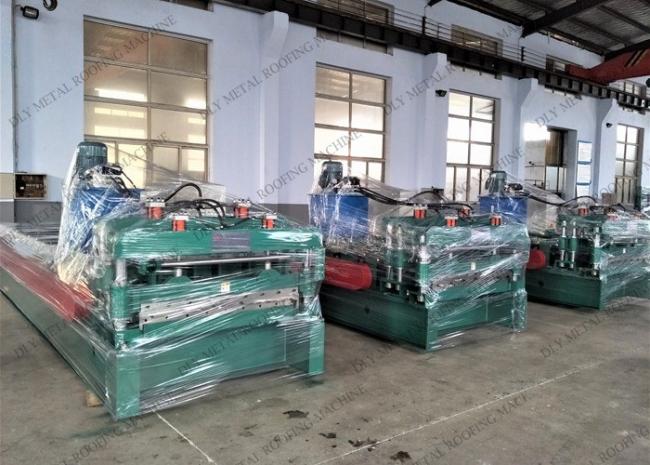

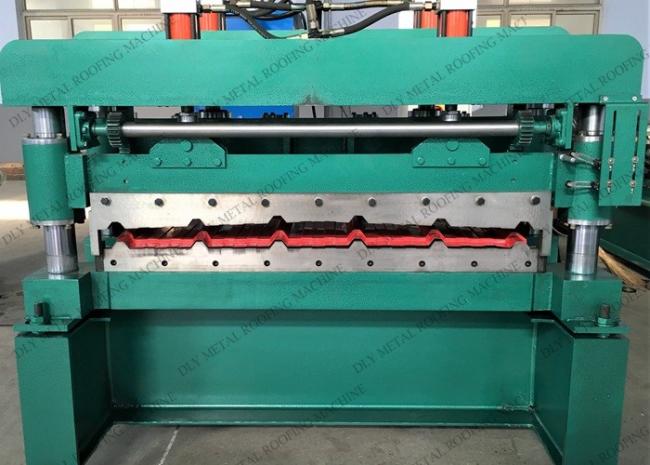

5. Details of Our Roofing Forming Machine
