TR35 Trapezoidal Sheet Roll Forming Machine 7.5m Color Steel Roll Forming Equipment
TR35 Trapezoidal Metal Roof Tile Making Machine 380V With Hydraulic Cutting
1. Description of Roofing Forming Machine
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
2. Specifications of Roofing Forming Machine
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
914mm/1000mm/1200mm/1220mm/1250mm
|
|
3
|
Thickness of the plate
|
0.3-0.8mm
|
|
4
|
De-coiler
|
Manual one, can load 5 tons raw material
|
|
5
|
Rollers for forming
|
16 rows
|
|
6
|
Diameter of the roller
|
80mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
5.5kw
|
|
9
|
Material of the cutting blade
|
Cr12 mov
|
|
10
|
Hydraulic cutting power
|
4kw
|
|
11
|
Processing precision
|
Within 1.00mm
|
|
12
|
Control system
|
Delta PLC control
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Main structure of the machine
|
350 H steel
|
|
15
|
Weight
|
About 5T
|
|
16
|
Dimensions
|
8.5*1.6*1.6m
|
|
17
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
18
|
Certificate
|
CE/ISO
|
|
19
|
Custom
|
According to customer's requirements
|
3. Feathers of Roofing Forming Machine
- We Will use the rubber roller at leveling part to protect the coil surface.
- We will add two more gears for feeding coil smoothly.
- For the roller, we will do the chroming for long time use and beautiful.
- For cutting, we use 4 pillar post cutting system to make sure the cutter can use long time.
- Use special special design of cutting system for cutting fast and the cutter can use long time.
- Good quality hydraulic jacks.
- Use strong thickness frame and holder.
- We will give remoter for control machine easily.
4. Production Flow of Roofing Forming Machine
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

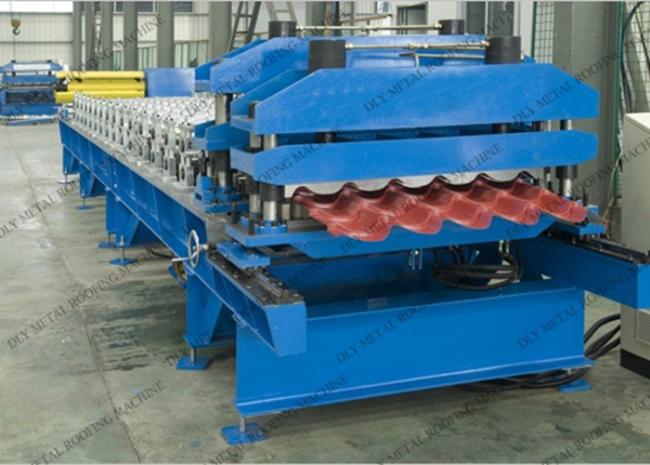

5. Details of Our Roofing Forming Machine
