Automatic 5.5kw Corrugated Roofing Machine Sinus 10 TON Steel Roofing Machine

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 40 days

Brand: DLY

Product Description

5.5kw Sinus 10T Corrugated Machine With PLC Automatic

1. Description of Corrugated Roofing Machine

This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
Fully Automatic Control System with PLC.
Easy operation: Key in the length and quantity on the control panel.
After-sales service
we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

2. Specifications of Corrugated Roofing Machine

SPECIFICATIONS FOR IBR ROOFING ROLL FORMING MACHINE
Machine specification	Electric power	Kw	5.5KW -11KW
	Machine Weight	Tons	8.0T–13.0T
	Machine Dimensions	m	9.0m x 1.8m x 1.5m
	Station quantity	stations	18–24 steps
Raw material	Steel Thickness (BMT)	mm	0.3–0.8mm
	Coil Width	mm	914–1250mm
	Material Strength		G300–G550
Production specification	Forming speed	m/min	20-24 (or customizable speed)
	Control system		PLC, HMI
	Rolling transmission		Hydraulic, Inverter
	Cutting and punching system		Hydraulic
	Length Tolerance	mm	± 2

3. workflow of Corrugated Roofing Machine

Manual decoiler——Feeding——Roll forming——Hydraulic stamp and cutting——Output table

4. Service of our Corrugated Roofing Machine

Free technical support and free accessories supply.
Engineer available to service machinery overseas.
One year warranty is provided.
Long life technical guidance for free.
We always offer technical support, quick response, all your inquire will be replied in 24 hours.

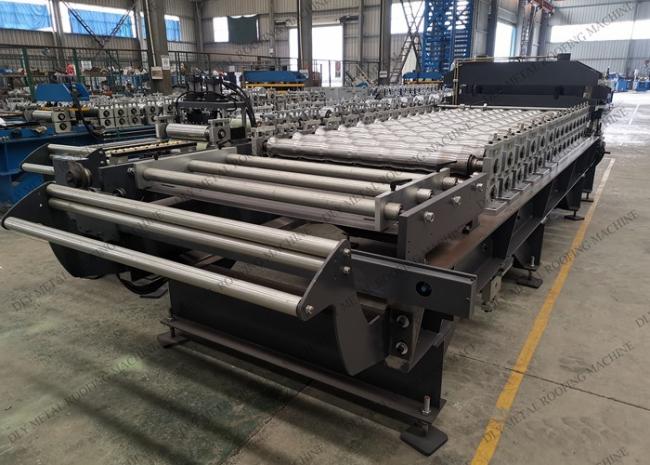

5. details of Corrugated Roofing Machine
