Nm400 Wear Resistant Steel Plate
Nm 400 Material Hot Rolled Wear Resistance Steel Plate for Industrial Applications
NM400 is one kind of Chinese wear/abrasion resistant steel plates, which is well received in middle east and Africa. An NM400 wear-resistant steel was hot rolled and then the plates were heat-treated by direct quenching and tempering and reheat quenching and tempering techniques, respectively. The impact test was carried out with an instrumented impact tester. The micro-structure and fracture surface were investigated by a combination of optical microscopy, transmission electron microscopy and scanning electron microscopy methods. With high mechanical strength, NM400 is 3 times to 5 times more than common low-alloy steel plates which can significantly improve surface hardness, usually achieved 360 ~ 450HB.
Application
1) Combustion power plant
2) Coal field
3) Cement plant
4) Loading machinery
5) Mine machinery
6) Construction machinery
7) Metallurgical machinery
|
Product name
|
AR 400 Wear Plate Low Carbon for Heavy Machine |
|
material
|
Q345B,Q345C,Q345D,Q345E,Q390,Q390B,Q390C,Q390D,Q390E
Q420,Q420B,Q420C,Q420D,Q420E,Q460,Q460D
Q500C,Q500D,Q500E,Q550C,Q550D,Q550E
Q620C,Q620D,Q620E,Q690A,Q690B,Q690C,Q690D,Q690E
Q890C,Q890D
|
| Thickness | 0.1-300mm.or as your request |
| Standard | AISI,ASTM,JIS,DIN,GB,SUS |
| Technique | Hot rolled,Cold rolled |
|
Application
|
Machine parts, metal components, agricultural machinery, machine tools, ships |
| Tolerance | Thickness: +/-0.02mm, Width:+/-2mm |
Chemical Composition of NM400
| Brand | C | Si | Mn | P | S | Cr | Mo | Ni | B | CEV |
|---|---|---|---|---|---|---|---|---|---|---|
| NM360 | ≤0.17 | ≤0.50 | ≤1.5 | ≤0.025 | ≤0.015 | ≤0.70 | ≤0.40 | ≤0.50 | ≤0.005 | |
| NM400 | ≤0.24 | ≤0.50 | ≤1.6 | ≤0.025 | ≤0.015 | 0.4~0.8 | 0.2~0.5 | 0.2~0.5 | ≤0.005 | |
| NM450 | ≤0.26 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.015 | ≤1.50 | ≤0.05 | ≤1.0 | ≤0.004 | |
| NM500 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.20 | ≤0.65 | ≤1.0 | Bt: 0.005-0.06 | 0.65 |
| Brand | Thickness mm | Tensile Test MPa | Hardness | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| YS Rel MPa | TS Rm MPa | Elongation % | ||||||||
| NM360 | 10-50 | ≥620 | 725-900 | ≥16 | 320-400 | |||||
| NM400 | 10-50 | ≥620 | 725-900 | ≥16 | 380-460 | |||||
| NM450 | 10-50 | 1250-1370 | 1330-1600 | ≥20 | 410-490 | |||||
| NM500 | 10-50 | --- | ---- | ≥24 | 480-525 | |||||

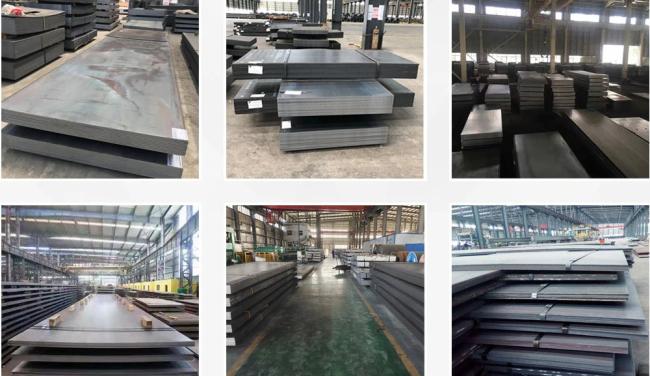

Products
Application

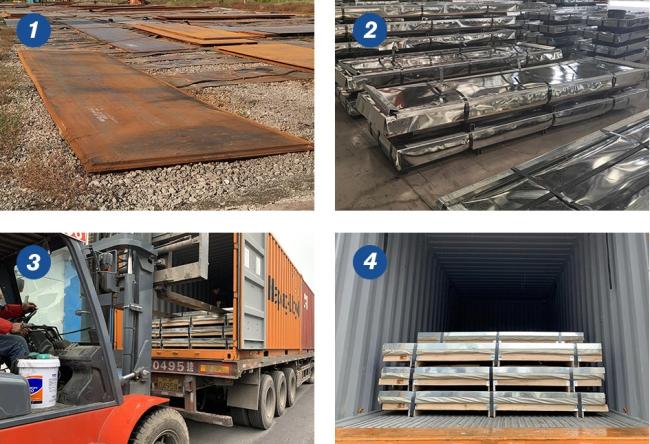

Package
