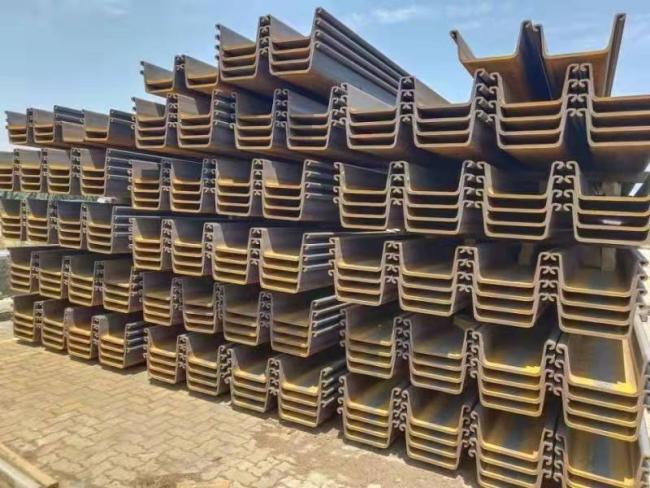

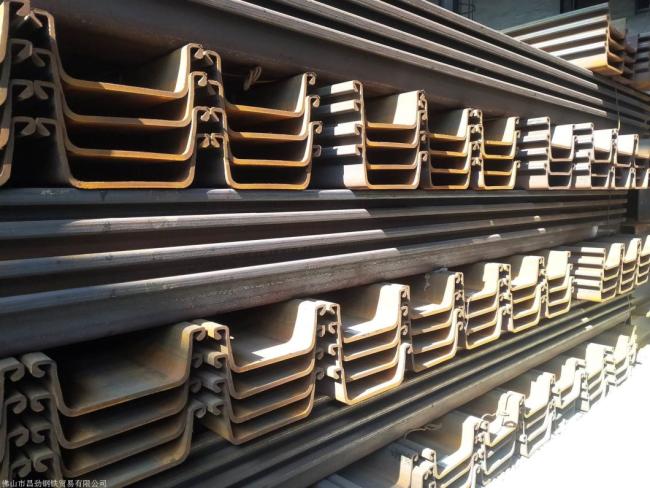

Steel Sheet Pile Z Type, U Type, European Standard En10249 S355jr S355j0
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Rigang Steel
Product Description
Specifications And Models Of Steel Sheet Pile
GB U type steel sheet piles
| Size | Per piece | ||||
| Specification | Width (mm) |
High (mm) |
Thick (mm) |
Section area (cm2) |
Weight (kg/m) |
| 400 x 85 | 400 | 85 | 8.0 | 45.21 | 35.5 |
| 400 x 100 | 400 | 100 | 10.5 | 61.18 | 48.0 |
| 400 x 125 | 400 | 125 | 13.0 | 76.42 | 60.0 |
| 400 x 150 | 400 | 150 | 13.1 | 74.40 | 58.4 |
| 400 x 170 | 400 | 170 | 15.5 | 96.99 | 76.1 |
| 600 x 130 | 600 | 130 | 10.3 | 78.7 | 61.8 |
| 600 x 180 | 600 | 180 | 13.4 | 103.9 | 81.6 |
| 600 x 210 | 600 | 210 | 18.0 | 135.3 | 106.2 |
| 750 x 205 | 750 | 204 | 10.0 | 99.2 | 77.9 |
| 750 | 205.5 | 11.5 | 109.9 | 86.3 | |
| 750 | 206 | 12.0 | 113.4 | 89.0 | |
| Specification | Width (mm) |
High (mm) |
Thick t (mm) |
Thick s (mm) |
Weight (kg/m) |
| SPZ12 | 700 | 314 | 8.5 | 8.5 | 67.7 |
| SPZ13 | 700 | 315 | 9.5 | 9.5 | 74 |
| SPZ14 | 700 | 316 | 10.5 | 10.5 | 80.3 |
| SPZ17 | 700 | 420 | 8.5 | 8.5 | 73.1 |
| SPZ18 | 700 | 418 | 9.10 | 9.10 | 76.9 |
| SPZ19 | 700 | 421 | 9.5 | 9.5 | 80.0 |
| SPZ20 | 700 | 421 | 10.0 | 10.0 | 83.5 |
| SPZ24 | 700 | 459 | 11.2 | 11.2 | 95.7 |
| SPZ26 | 700 | 459 | 12.3 | 12.3 | 103.3 |
| SPZ28 | 700 | 461 | 13.2 | 13.2 | 110.0 |
| SPZ36 | 700 | 499 | 15.0 | 11.2 | 118.6 |
| SPZ38 | 700 | 500 | 16.0 | 12.2 | 126.4 |
| SPZ25 | 630 | 426 | 12.0 | 11.2 | 91.5 |
| SPZ48 | 580 | 481 | 19.1 | 15.1 | 140.2 |
Advantages
U Type Steel Sheet Pile
1.Abundant specifications and models.
2.The symmetrical structure is conducive to repeated use.
3.The length can be customized according to customer requirements, which brings convenience to construction and reduces cost.
4.Convenient production, short production design and production cycle.
Z Type Steel Sheet Pile
1.Flexible design, a relatively high section modulus and mass ratio.
2.The stiffness of sheet pile wall is increased to reduce the displacement and deformation.
3.Large width, effectively save the time of hoisting and piling.
4.With the increase of section width, the water stop performance is improved.
5.More excellent corrosion resistance.
Application
1. Wharf wall, noise isolation wall, etc. Used in hydraulic engineering.
2.Used for wall protection and parking equipment in waterway civil engineering.
3.Used for the control of water conservancy project construction pollution.
