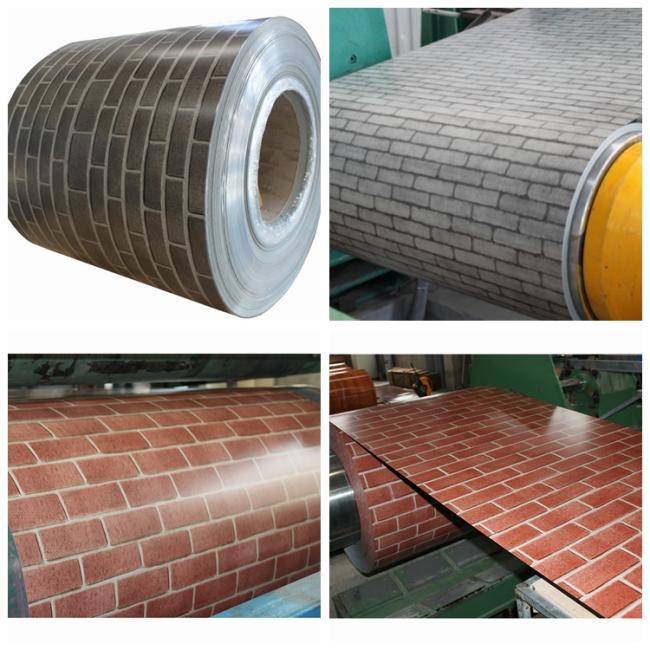

Brick Pattern Steel Coil PPGI Color Coated For Prefab House And Fencing
Brick Pattern Ppgi Color Coated Steel Coil For Prefab House And Fencing
Color coated coil is a product made of hot-dip galvanized sheet, hot-dip aluminized zinc sheet and electro galvanized sheet.
After surface pretreatment (chemical degreasing and chemical conversion treatment), one or several layers of
organic coatings are coated on the surface, and then cured by baking. It is named after the colorful steel coil coated with
various colors of organic coatings.
The gloss can changeable by Customers' Request.
we can also do some High gloss, with some sparkling granule in it.

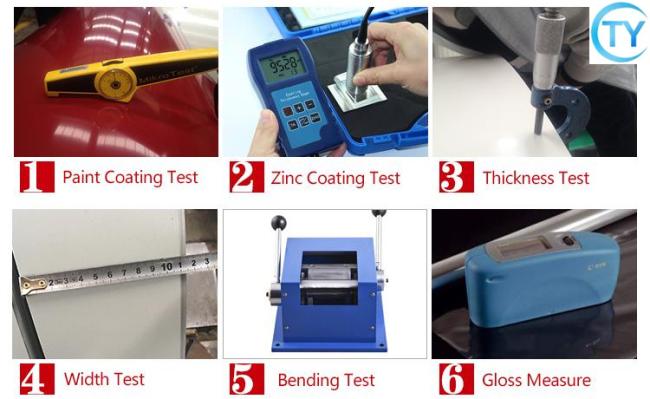

ΔE≤0.5, Paint Thickness:±1um,T-Bend Test:0T-2T ,Pencil hardness: min F.
MEK Test: min. 100 double rubs for top side.
Product Description :
| Base Material | Galvanized steel coil( GI), galvalume steel coil(GL) |
| Zinc Layer | Z40~Z275, or AZ40~AZ150(AL55%) |
| Paint type | Polyester(PE), Silicone Modified Polyester(SMP),HDP,PVDF |
| Color | RAL No.color, Wooden color,Military color,or as per customer's request |
| Coil Weight | 3~10Tons |
| Inner Diameter | 508mm / 610mm |
| Top side coating | 15~30um |
| Back side coating | 5-10um or 5+10~20um |
| MOQ | 25 MT (1*GP 20 FCL) |
| Year Capacity | 200,000Tons |
Printed Steel Coil features :
1) Excellent corrosion resistance: The zinc layer provides a good protection of sheet
2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away
and in turn reducing the amount of heat transmitted.
3) Aesthetics: Available in plethora of patterns and multiple sizes as per requirements
4) Versatility: can be used in the various areas
Printed Steel Coil applications :
1) Buildings and constructions:roofing,ceilings,gutters,venting lines,indoor decorations,window frames
2) Electrical appliances:computer shells,washing machines,refrigerators,dehumidifiers,video recorders
3) Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels
4) Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks
FAQ:
Q1. What are your company's main products?
A1: Our main products are Galvanized Steel Coil, Galvanized Steel Sheet, PPGI Steel Sheet, GI Roofing Sheet, PPGI Steel Coil etc.
Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO, SGS, Alibaba Verified.
Q3. What are the advantages of your company?
A3: We have specialized in the steel business for years, so we have mature production technology, stable capacity, more competitive prices,
we are dedicated to strict quality control and thoughtful customer service.
Q4. Can you provide a sample?
A4: We can provide the same samples in stock for free, as long as you contact us.
About us:
Wuxi Wilke Metal Materials Co., Ltd. is a leading supplier of high-quality galvanized steel materials. Established in 2012 in Wuxi, China, the company has quickly become a reputable and reliable supplier of metal materials to customers around the world.
At Wuxi Wilke Metal Materials Co., Ltd., we pride ourselves on providing superior quality products that meet international standards. Our products are sourced from reputable manufacturers who have a proven track record of delivering high-quality materials. We have established long-term relationships with these manufacturers, which enables us to offer our customers competitive prices and consistent product quality.
