500mm Penstock SSAW Steel Pipe Big Diameter For Nepal Hydropower Project
Ssaw Penstock Steel Pipe With Big Diameter For Nepal Hydropower Project
| Standard: | API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS 5950, ASTM A572 , JIS, IS, |
| Certificate: | EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT |
| Out Diameter: | 219.1 - 3048mm |
| Wall Thickness: | 5 - 30mm |
| Length: | Up to 70m |
| Steel Grade: | API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70 |
| ASTM A252 GR 1, GR 2, GR 3 | |
| ASTM A53: GR A, GR B, GR C, GR D | |
| BS 4360: Grade 43, Grade 50 | |
| EN: S275, S275JR, S355JRH, S355J2H | |
| Surface Treatment: | Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement |

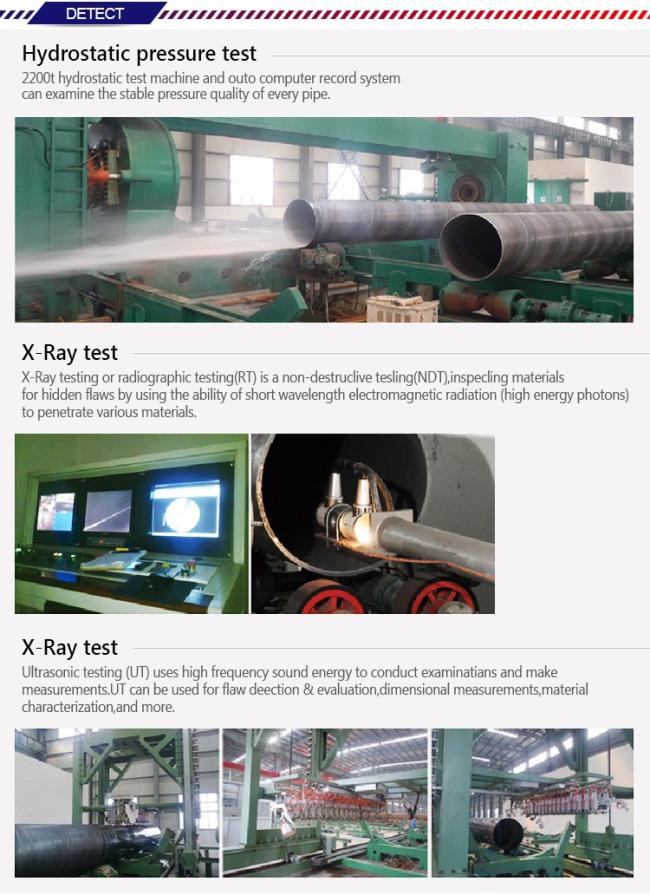

| Test: | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. |
| Mill Test Certificate: | EN 10204/3.1B |
Tianjin Xinyue Steel Group, located in Daqiuzhuang Industrial Area, Tianjin, China, is one of the most famous enterprise of steel pipe in China, since 1980. Consolidating steel pipe production, stocking, domestic & international marketing. Xinyue set up several production bases in Tianjin & Hebei Province, manufacturing ERW Steel Pipe, SSAW Steel Pipe, LSAW Steel Pipe, Seamless Steel Pipe, Scaffolding system and couplers, which is widely applied in petroleum & oil or gas pipeline, water pipeline, construction & building, dredging and piling projects.
We can offer you one stop purchasing for all kinds of steel items, welcome to visit our factory !
Application:
1.for manufacture of pipeline,vessels,equipment,pipe fittings and steel structures
2.for conveying gas,water and oil in both the oil and natural gas industries
3.for manufacturer wall panel,ecomomizer,reheater,superheater and
4.steam pipeline of boilers.
5.for conveying oil,gas and other fluid
FAQ
Q1: What's the main application of SSAW steel pipe?
A1: SSAW is widely used as water transmission pipe, Line pipe, and Piling Pipe.
Q2: What's Xinyue's Product Range for SSAW?
A2: Xinyue's Product Range for SSAW steel pipe is as below:
OD: 219.1mm to 4064mm
WT: 4mm-25.4mm
Length: up to 70m.
Q3: What kind of surface treatment can you offer?
A3: We can offer Anti-rust coating, bitumen coating, FBE, 2PE, 3LPE, Polyamide Epoxy, Rich Zinc Primer, Polyurethane, etc.
Q4: How much is MOQ?
A4:For the goods in stock ,1 ton is okay. For customized and special material orders,20 tons for each size.
Q5: Do you provide other steel pipes?
A5: Xinyue's main products include ERW, LSAW, SSAW, SMLS, Scaffolding, SHS and RHS, Couplers and pipe fitting. And we provide carbon steel, alloy steel, and stainless steel products.
