Relining UV CIPP Lining Water Main Municipal Sewers Repair DN200-1650 NO DIG
CIPP-UV material for municipal sewers repair DN200-1650 by NO-DIG

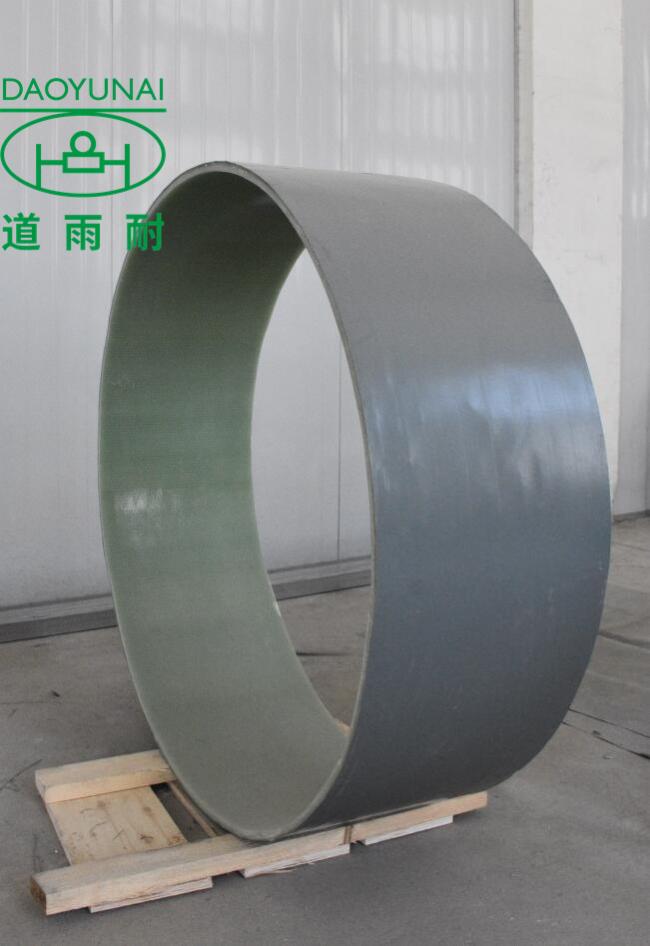

DAO CIPP-UV cure material is designed for underground municipal sewer trenchless repair using Cured-in-Place-Pipe technology. It is good to use the newly developed LED cure system or the traditional voltage Mercury light cure system, both types work great!
UV cure liner material features below:
1. The repaired pipeline structure meets the strength, stability, and deformation requirements TUV test report.
2. After repair, the pipeline is smooth and the water stream will be better.
3. The service life is more than 50 years according to the 10000hours creep test report by TUV.
4. Good ductility and fit the pipe wall closely, without holes.
| Product parameters | |
| Bending modulus (MPA) | ≥ 3100 |
| Bending strength (MPA) | ≥ 120 |
| Tensile modulus (MPA) | ≥ 3200 |
| Tensile strength (MPA) | ≥ 82 |
| Mild bending resistance (MPA) | ≥ 47 |
| Short term bending elastic modulus (MPA) | ≥ 6670 |
| Tensile strength (MPA) | ≥ 61 |
| Applicable pipe diameter | DN200-DN1650 |
