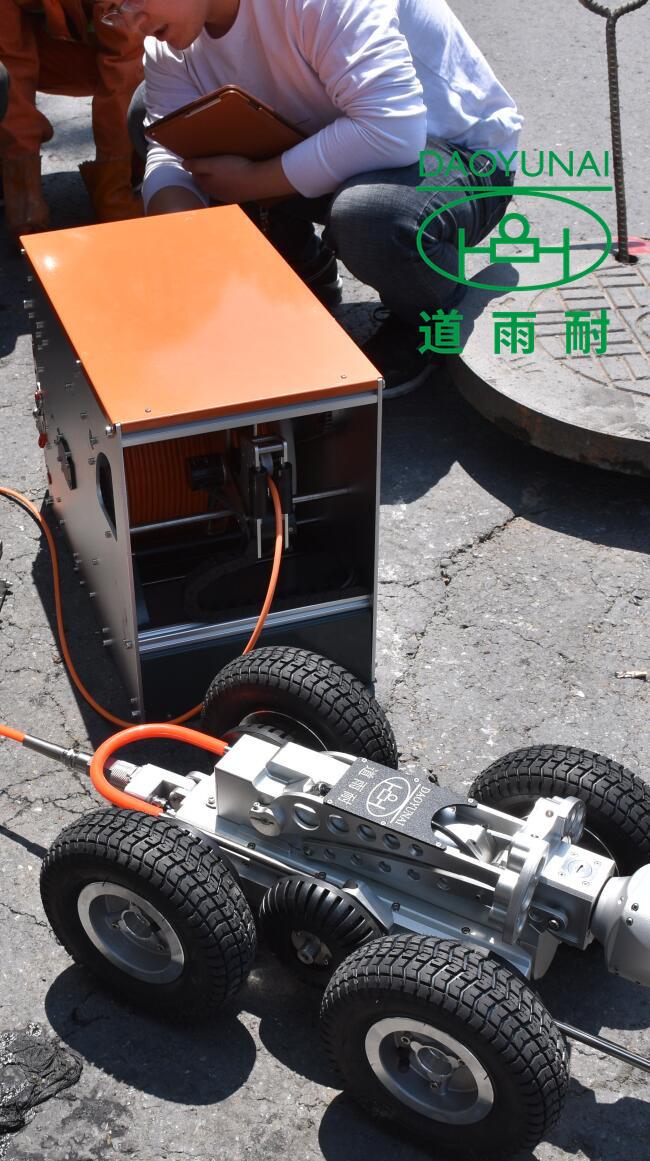

Sewer CCTV crawler for video visual inspection of internal situation and defects

How to use the CCTV operation software system?

After ensuring the correct installation of the crawler, PTZ, cable car, etc., after powering on, click the software to enter the main interface of the system, and click the exit button to exit the control of the dedicated touch terminal system.

After entering the system interface, it will automatically connect the cable car, you can through the software interface to check the connection status. If this icon appears, it indicates that the connection is normal. If the connection is abnormal when the device is turned on, click the signal connection at the top of the main interface to view.

After confirming the safety, slowly send the device into the well, adjust the PTZ camera lens, so that the camera as far as possible is always in the center of the pipeline.

According to the actual effect, adjust the light to the best state to make a check.

Video recording and photo taking as needed.

How to use the cable drum

The cable protection support for well and pipeline are installed, the switch can be adjusted to automatic position.
