P10 VMS motorway digital signs Remote control Full Color LED Display
P10 VMS Motorway Digital Signs Remote Control Full Color LED Display

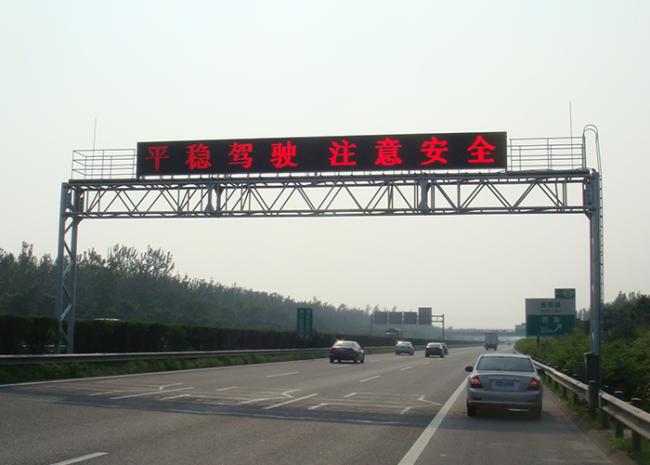

Road traffic safety variable message sign gantry DMS full color P10 10000 pixels/m²

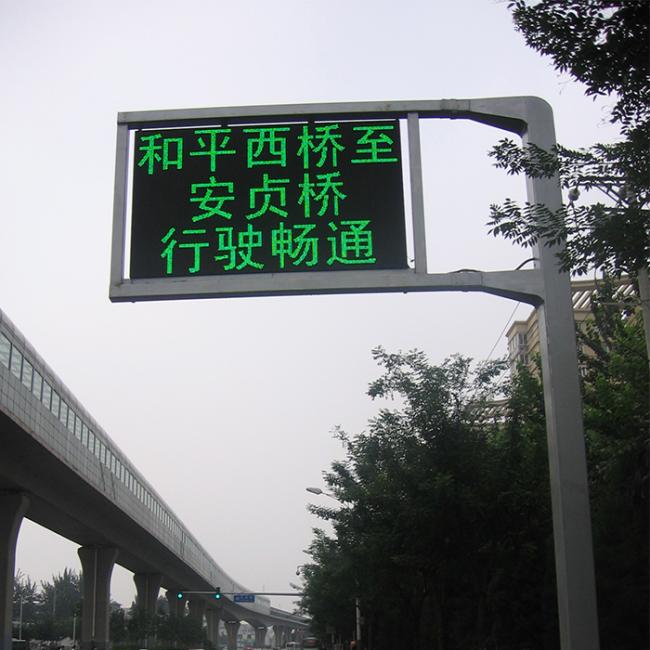

Variable information signs are used to publish road weather information, road construction information, road blocking information, road surface condition information, information on suggested detours, information on road dynamic operating conditions, and provide drivers with on-the-go information to facilitate travel.
product introduction:
Provide high brightness, standard brightness and high density 3 kinds of modules, in line with various application requirements of LED variable intelligence board.
The modular design covers the different needs of various road sections such as 2-lane, 3-lane, and 4-lane.

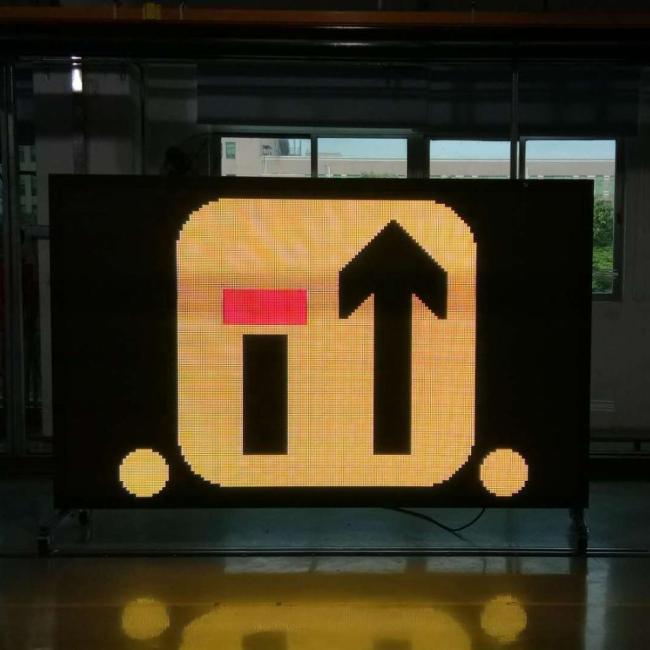

The brightness is optional from 8500 to 15000nits, and it can display the red, green and yellow Chinese characters and icons
specified by the national standard.
Strictly follow GBT 23828-2009 standard for material selection, design, production and testing
The quincunx pixel arrangement ensures the fullness of the font when viewed from a distance.
Green LED adopts Nichia NEPG510S
Blue LED adopts Nichia NSPB510AS
Red LED adopts Avago (HP) HLMP-EG37
Yellow LED adopts Avago (HP) HLMP-EL37
The single-pixel independent sunshade ensures the service life of the LED lamp and reduces light loss.
Dak embroidered black stainless steel screws guarantee 10 years of rust and discoloration.
Better contrast ratio
The surface of each optical len is designed with carved strips that could reduce light reflection.
NTCIP and MODBUS based
Yaham traffic information displays are programmed based on the world two most prevailing 1.programmed NTCIP (National Transportation Communications for ITS protocol) and Modbus, more than just that, we also provide customized protocol if necessary.
Remote control
Messages, photos are capable of being edited and displayed remotely and wirelessly. In addition, VMS can also be remotely switched on and off.
who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(41.00%),North America(30.00%),Southeast Asia(6.00%),Oceania(6.00%),Eastern Asia(4.00%),Northern Europe(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Mid East(2.00%),Western Europe(2.00%),South Asia(00.00%). There are total about 501-1000 people in our office.
| Item | YHT-VMS-OT10 |
| Pixel pitch | 10mm |
| LED type | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² |
| Module dimension | 320×160 mm |
| Module resolution | 32×16 |
| Cabinet material | 2mm aluminum Alloy |
| Screen weight | 65kg/m² |
| Cabinet dimension | 960×960 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) |
| Brightness adjustment | 32/256 |
| Color coordinates | C2: EN12966 |
| Viewing angle | H 15/-15 Deg. / V 8/-10 Deg.(B6:EN12966) |
| Refresh rate | >90+ Hz |
| Display control | Asynchronous control system available |
| Display capacity | Text, image, graphics animations |
| Lifespan | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC |
| Max. Power consumption | 400W/m² |
| Avg. Power consumption | 130W/m² |
| Operation temperature | -25~ +60°C |
| Storage temperature | -40~ +80°C |
| Store humidity | 15%~ 95% |
| Protection level | IP56(P3:12966) |
| Maintenance method | Rear service |
