12mm Fixed Motorway VMS Signs 3 in1 SMD lens Traffic Matrix display

Price Negotiable
Price: $1200-2000 Square Meter/Square Meters
MOQ: 16 Square Meter/Square Meters
Delivery Time: 39 days
Brand: YAHAM
Product Description

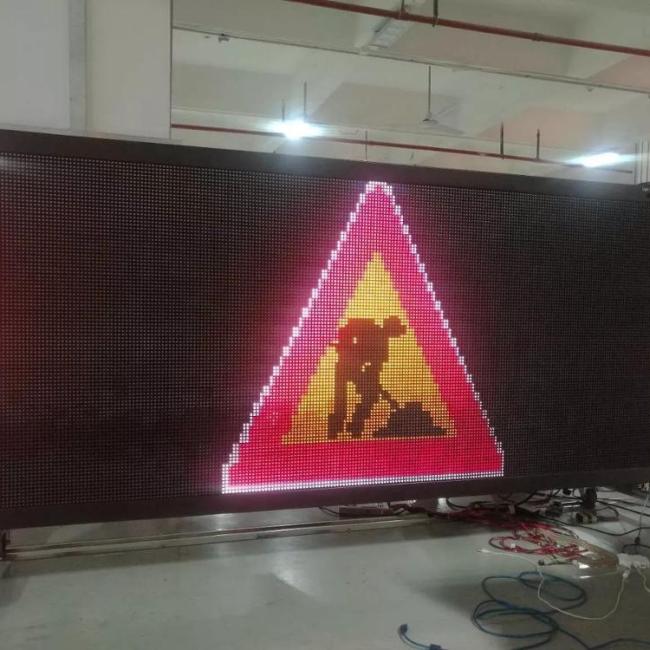

12mm Fixed Motorway VMS Signs 3 In1 SMD Lens Traffic Matrix Display



EN12966 vms fixed variable message sign traffic led motoways matrix signs lifespan >100000 hrs



Smart monitor



Yaham VMS can activate self-diagnosis and report health status, monitor can identify equipment health status, current message ID, current operating mode temperature, humidity, etc.



Global positioning system



Each VMS is paired with GPS, locations and VMS amount could be simply apparent to your eye.



Customized color



Yaham VMS is a highly customized product with color availability including monochrome,full-color and dual-color.



Yaham workshop covers 30,000 sq.m and owns a complete production line, including SMT, post-soldering, module assembly, gluing, burning, etc. Its capacity is over 5,000 sq.m per month.



YAHAM Optoelectronics' variable information signs have long service life, high brightness, low energy consumption, and are stable and durable under harsh conditions.



Provide high brightness, standard brightness and high density 3 kinds of modules, in line with various application requirements of LED variable intelligence board.



⊙The overall design of the structure with a downward slope of 4° ensures that the light normal is 250 meters away.

⊙A single point fault feedback system is built into the screen to ensure that the working status of the induction screen can be grasped at the first time in the control room.



Item YHT-VMS-OT10 YHT-VMS-OT12 YHT-VMS-OT16
Pixel pitch 10mm 12mm 16mm
LED type 3 in1 SMD+lens 3 in1 SMD+lens 3 in1 SMD+lens
Pixel density 10000 pixels/m² 6944 pixels/m² 3906 pixels/m²
Module dimension 320×160 mm 192×192 mm 256×128 mm
Module resolution 32×16 16×16 16×8
Cabinet material 2mm aluminum Alloy
Screen weight 65kg/m²
Cabinet dimension 960×960 mm 960×960 mm 1024×1024 mm
Brightness L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits)
Brightness adjustment 32/256
Color coordinates C2: EN12966 C2: EN12966 C2: EN12966
Refresh rate >90+ Hz >90+ Hz >90+ Hz
Display control Asynchronous control system available
Display capacity Text, image, graphics animations
Lifespan >100000 hrs >100000 hrs >100000 hrs
Power supply 12-24V DC/110-230V AC
Max. Power consumption 400W/m² 380W/m² 250W/m²
Avg. Power consumption 130W/m² 120W/m² 80W/m²
Operation temperature -25~ +60°C
Storage temperature -40~ +80°C
Store humidity 15%~ 95% 15%~ 95% 15%~ 95%
Protection level IP56(P3:12966) IP56(P3:12966) IP56(P3:12966)
