12400 Nits Car Park Counting Systems LED Display Screen Guidance
12400 Nits Car Park Counting Systems LED Display Screen Guidance
Parking Spaces Vehicle Counting System Direction Arrow LED Display Screen

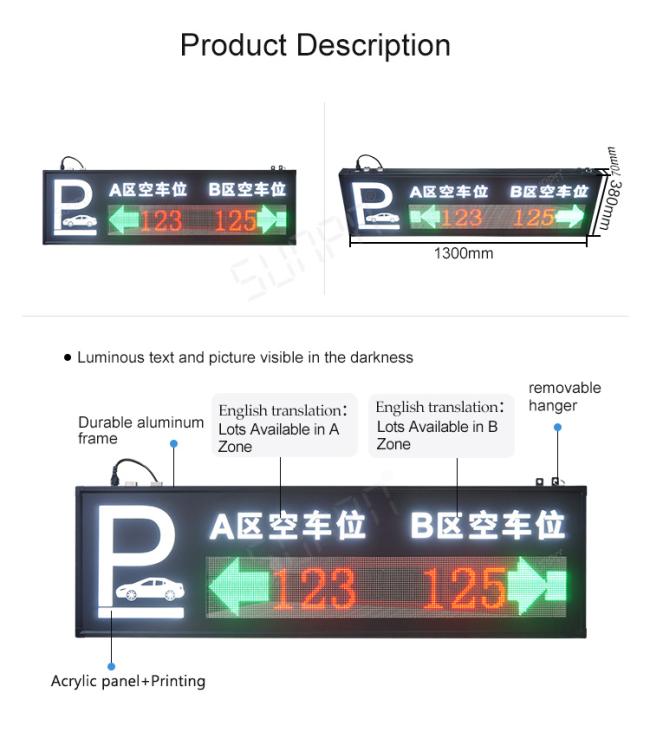

Product Description

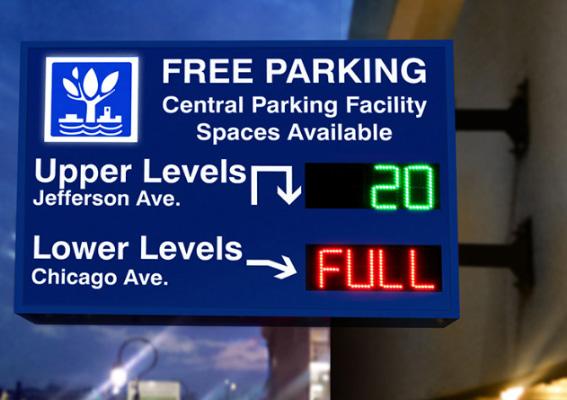

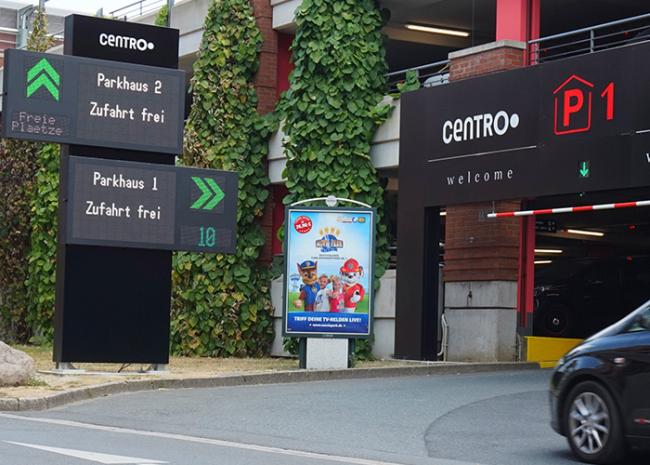

YAHAM's Parking space indicator displays are uniquely designed and engineered for PGS(Parking Guidance Syestem),the sign face to the placement and terface with the parking equiment, digital alpha number digits in amber/red /green color for parking space available ,green arrow for direction to driver.Our signs are designed,engineered and manufactured to your requirements.
Features
● Low voltage driver IC maximizes energy savings.
● Automatic brightness adjustment of the screen to ensure daytime brightness and no glare at night.
● Box 360 degree sealed IP65 protection, double door active cooling structure design.
● Industrial power distribution system components.
Saving electricity
● Low voltage driver IC
● Screen body automatic brightness adjustment
Reliability
● IP65 protection class
Packaging&Shipping
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
| Item | YHT-VMS-D12 | YHT-VMS-D16 | YHT-VMS-D20 | YHT-VMS-D25 |
| Pixel pitch | 12mm | 16mm | 20mm | 25mm |
| LED type | 346 DIP | 510 DIP | 510 DIP | 510 DIP |
| Pixel density | 3944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² |
| Module dimension | 192×192 mm | 256×256 mm | 320×160 mm | 200×200 mm |
| Module resolution | 16×16 | 16×16 | 16×8 | 8×8 |
| Cabinet material | 2mm aluminum Alloy | |||
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | |||
| Driving method | 2S | Static | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Contrast ratio | / | R3: EN12966 | R3: EN12966 | R3: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | |||
| Display capacity | Text, image, graphics animations | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 200W/m² | 200W/m² | 200W/m² |
| Operation temperature | -25~ 60°C | |||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
