P3 P4 P5 Bus LED Display Board Low Power Consumption GPS Location
P3 P4 P5 Bus LED Display Board Low Power Consumption GPS Location
Bus Advertising Screen Ultra Light Cabinet GPS Location Low Consumption P3 P4 P5 Bus Mobile Led Screen Led Display
Product details

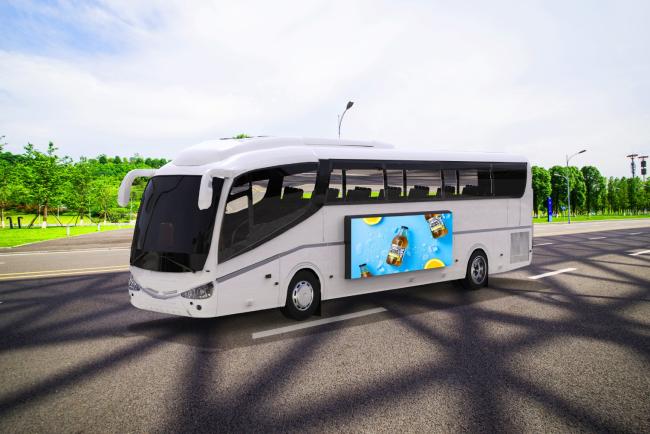

Yaham bus LED display is a new mobile media platform that could display advertising and news
coverage. It can play a variety of media resources such as text, photos, animation, video.
Product Specifications
|
Item |
BUS-P3 |
BUS-P4 |
BUS-P5 |
|
Pixel |
3 |
4 |
5 |
|
Led Type |
1R1G1B SMD1515 |
1R1G1B SMD1515 |
1R1G1B SMD1515 |
|
Pixel density(pixel/m^2) |
105625 |
105625 |
105625 |
|
Moudle dimension(W*H) |
320x160mm |
320x160mm |
320x160mm |
|
Cabinet dimension(W*H*D) |
1924x676x87mm |
1924x676x87mm |
1924x676x87mm |
|
Cabinet resolution(W*H*Side) |
640x214pixels |
640x214pixels |
640x214pixels |
|
Cabinet weight(Kg/unit) |
60kg |
60kg |
60kg |
|
Cabinet material |
Aluminum |
Aluminum |
Aluminum |
|
Access |
back |
back |
back |
|
Ingress protection |
IP66 |
IP66 |
IP66 |
|
Brightness(nits/m) |
≥4500 |
≥4500 |
≥4500 |
|
Viewing angle |
135±10° |
135±10° |
135±10° |
|
Max.power consumption(W/m) |
≤786W |
≤838W |
≤770W |
|
Ave.power consumption(W/m) |
≤241W |
≤279W |
≤279W |
|
Input voltage |
DC 12/24V |
DC 12/24V |
DC 12/24V |
|
Driving method |
1/13 |
1/10 |
1/8 |
|
Refresh rate (Hz) |
3840 |
3840 |
3840 |
|
LED lifespan(Hrs) |
100000 |
100000 |
100000 |
|
Operation temperature(℃) |
20-40℃ |
20-40℃ |
20-40℃ |
|
Storage temperature(C) |
-40-85℃ |
-40-85℃ |
-40-85℃ |
|
Working humidity(RH) |
10％-90％RH |
10％-90％RH |
10％-90％RH |
|
Control PC |
Windows, Andriod , Mac OS |
Windows, Andriod , Mac OS |
Windows, Andriod , Mac OS |
|
Control way |
Computer, laptop, cellphone |
Computer, laptop, cellphone |
Computer, laptop, cellphone |
|
Control system |
Andriod+4G+AP+WiFi+GPS+8GB Flash |
Andriod+4G+AP+WiFi+GPS+8GB |
Andriod+4G+AP+WiFi+GPS+8GB Flash |
Product advantages
HIGH PERFORMANCE DISPLAY,ENERGY EFFICIENT
Yaham bus LED display,High brightness,High refresh,High resolution,Low power consumption
HIGH INGRESS PROTECTION
Yaham bus LED display With IP66 High Ingress Protection, It ensures perfect screen performance in
the harshest environment and severe weather conditions.
Control way is more easy

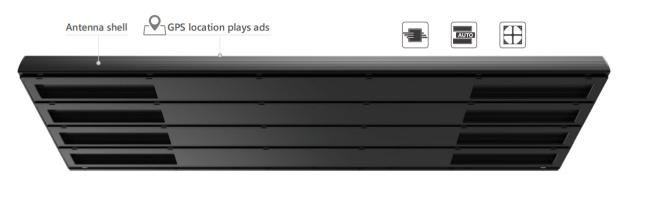

With GPS function,it can play advertising in point places. Control way is more easy through 4G / wifi/ Lan port or USB disk ,It can be controlled with computer ,laptop,cellphone .
Easy to install and maintain
The cabinet is made of aluminum material, with the display size of 1920X160, 1600X160, 1280X160,
960X160, 640X160mm. The cabinet is very thin and can be assembled freely, which facilitate the instal
lation and maintenance of the screen.
