China Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen for sale

Polcd 2.8 inch 240*320 Spi Mcu interface Tft Lcd Color Display Module Transflective LCD screen

Price Negotiable
Price: Please contact us for latest price
MOQ: 1 piece
Delivery Time: 1-7 working days
Brand: Polcd
Product Description

Parameter:

Model P028BFT01-40
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.06(H)x0.18(V)mm
Pin 20 pin
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) Transflective
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 500:1
Interface MCU 8/16bit SPI 3wire/4wire
Back-light 4*LED Parallel type
Drive IC ST7789T3

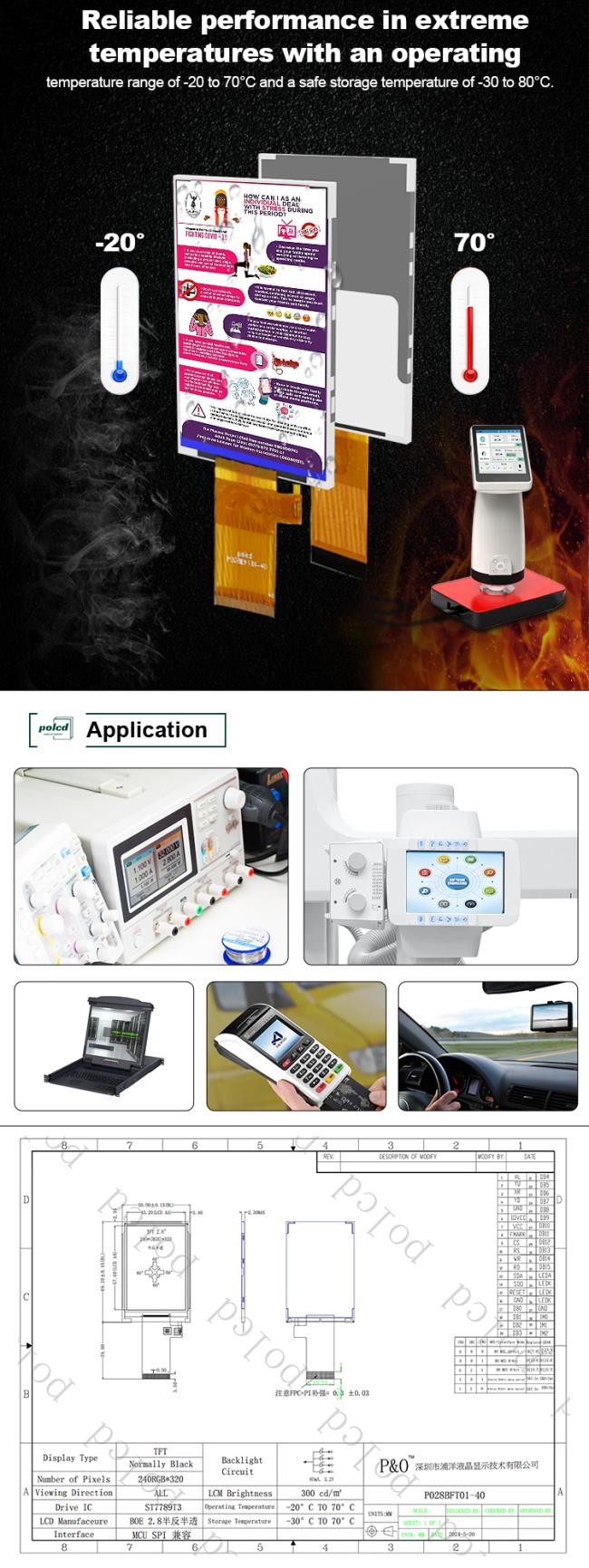

Operation Temperature -20~70℃
Storage Temperature -30~80℃
