Polcd LQ035NC111 3.5 inch LCD Panel Module 320x240 RGB SPI Interface color 54 pin Square TFT LCM Display
TFT Display Description:
A 3.5 inch TFT LCD with RGB interface and 6 o'clock direction viewing angle provides clear and accurate image display from below, making it ideal for applications such as car navigation systems and industrial control panels.
Parameter:
| Product name | TFT LCD |
| Diagonal size | 3.5 inch |
| Model | LQ035NC111 |
| Type | TFT-LCD, liquid crystal module |
| Resolution | 320(RGB)x240 QVGA 115PPI |
| Display area | 70.08(H)x52.56(V) mm ; |
| Open area | 73.03(H)x55.50(V) mm |
| Display brightness | 300 cd/m2 (Typ.) |
| Pixel arrangement | RGB vertical bars |

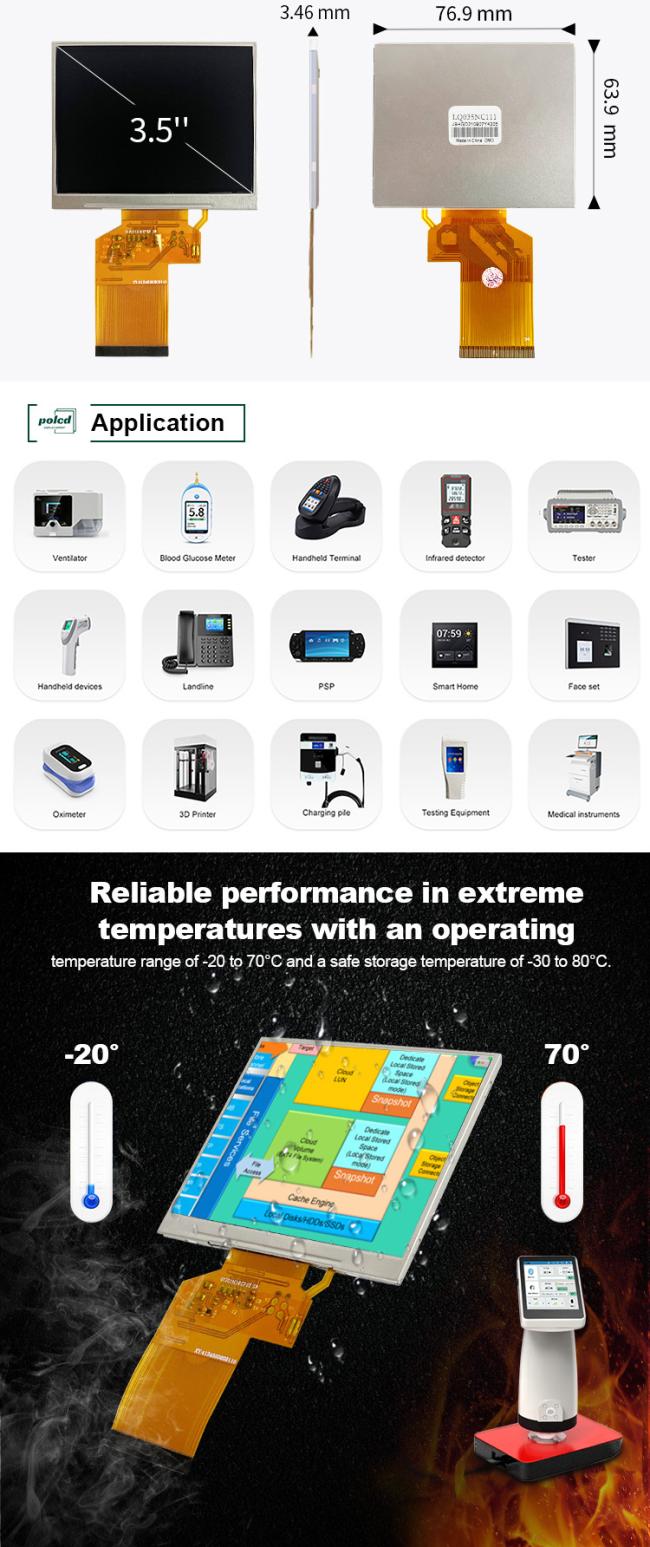

| Physical dimension | 76.9(H)x63.9(V) x3.46(T) mm |
| Surface treatment | Haze (Haze 20%) |
| Contrast | 400:1 (Typ.) (Transmission) |
| Response time | 10/15 (Typ.)(Tr/Td) ms |
| Display mode | TN, normally white display, transmissive |
| Recommended viewing angle | 6 o'clock |
| Viewing angle | 60/60/50/55 (Typ.) (CR210) |
| Color support | 16.7M , 60% NTSC |
| Weight | 30.0g (Typ.) |
| Frame rate | 60Hz |
| Interface Type | 54 pins Digital RGB (8/24-bit) + SPI, CCIR601/656, FPC |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Operating temperature: -20~ 70 °C; Storage temperature: -30~ 80 °C |
| Type of light source | WLED [6S1P], 10K hours, no driver |
| Touch technology | No; supports custom touch |
Applications
A 3.5 inch TFT LCD with RGB interface and 6 o'clock direction viewing angle has a wide range of applications. It is commonly used in automotive electronics for display screens in infotainment systems, rearview cameras, and GPS navigation systems. It is also used in industrial control systems such as PLCs, HMIs, and data loggers. Additionally, it is suitable for use in portable devices such as smartphones, digital cameras, and portable media players due to its compact size and low power consumption. Its 6 o'clock direction viewing angle makes it an ideal choice for applications where clear and accurate image display from below is required, such as navigation systems in vehicles and control panels in industrial settings.
