Polcd 2.8 Inch TFT Module 240x320 Resolution SPI MCU interface ILI9341v TFT Transmissive 2.8" LCD Display
Features:
2.8 inch TFT LCD offer high resolution, touch input, durability, low power consumption, and customization, making them suitable for various handheld devices, such as gaming consoles, medical devices, portable media players, and handheld measurement devices.
Parameter:
|
Model |
P028H026-TP |
|
Screen Size |
2.8 inch |
|
Number of Pixel |
240RGB(H)x320(V) |
|
Display area |
43.20(H)x57.60(V)mm |
|
Pixel pitch |
0.06(H)x0.18(V)mm |
|
Pin |
40 pin |
|

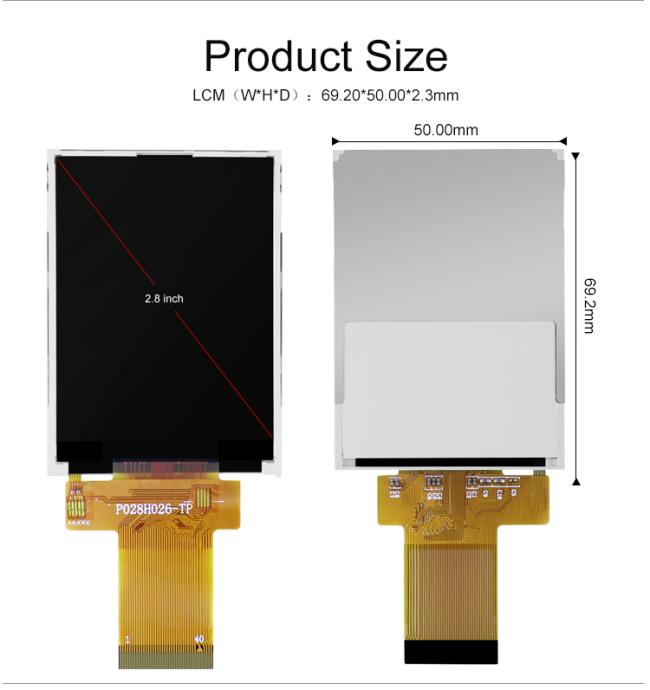

Outline Dimension |
50.00x69.20x3.50mm |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally White |
|
Viewing Direction(eye) |
12 0'CLOCK |
|
Display Color |
262K |
|
Luminance(cd/m2) |
260 nit |
|
Contrast Ratio |
500:1 |
|
Interface |
MCU 8/16bit SPI 3wire/4wire |
|
Back-light |
LED Side-light type |
|
Drive IC |
ILI9341V |
|
Operation Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
Customization services:
Size customization: We can customize TFT LCD screens in different sizes according to customer requirements, such as 2.8 inches, 3.5 inches, 4.3 inches, 5 inches, etc.
Resolution customization: We can provide TFT LCD screens with different resolutions according to customer needs, such as QVGA, WQVGA, VGA, SVGA, etc.
Touch screen customization: We can provide different types of touch screens for TFT LCD screens, such as resistive touch screens, capacitive touch screens, and customize touch screen parameters according to customer requirements.
Brightness customization: We can adjust the brightness of TFT LCD screens according to customer requirements to adapt to different environments and application scenarios.
Temperature range customization: We can provide different temperature ranges for TFT LCD screens according to customer requirements to meet their application needs in different environments.
Backlight customization: We can provide different types of backlight sources, such as LED, EL, etc., for TFT LCD screens, and adjust the brightness and color temperature of the backlight according to customer requirements.
Interface customization: We can customize the interface of the TFT LCD screen to match the specific requirements of the customer's device or application. This may include adjusting the position and layout of buttons, adding logos or other graphics, or providing specific input/output interfaces.
Viewing angle customization: We can adjust the viewing angle of the TFT LCD screen to meet specific application requirements. This is particularly important for devices that may be viewed from different angles, such as in-car displays or public information kiosks.
Power consumption customization: We can customize the power consumption of the TFT LCD screen to optimize battery life for battery-powered devices. This may include adjusting the backlight brightness, or using a different backlight technology to reduce overall power usage.
Color customization: We can adjust the color performance of the TFT LCD screen to meet specific application requirements. This may include adjusting color temperature, contrast, or saturation to provide a more vivid or accurate display.
Touch sensitivity customization: We can adjust the sensitivity of the touch screen to provide a better user experience for different applications. For example, a gaming device may require a more responsive touch screen compared to a medical device.
Custom packaging and labeling: We can provide custom packaging and labeling for TFT LCD screens to meet specific customer requirements. This may include adding customer logos, specific labeling or instructions, or providing custom packaging for shipping and handling.
