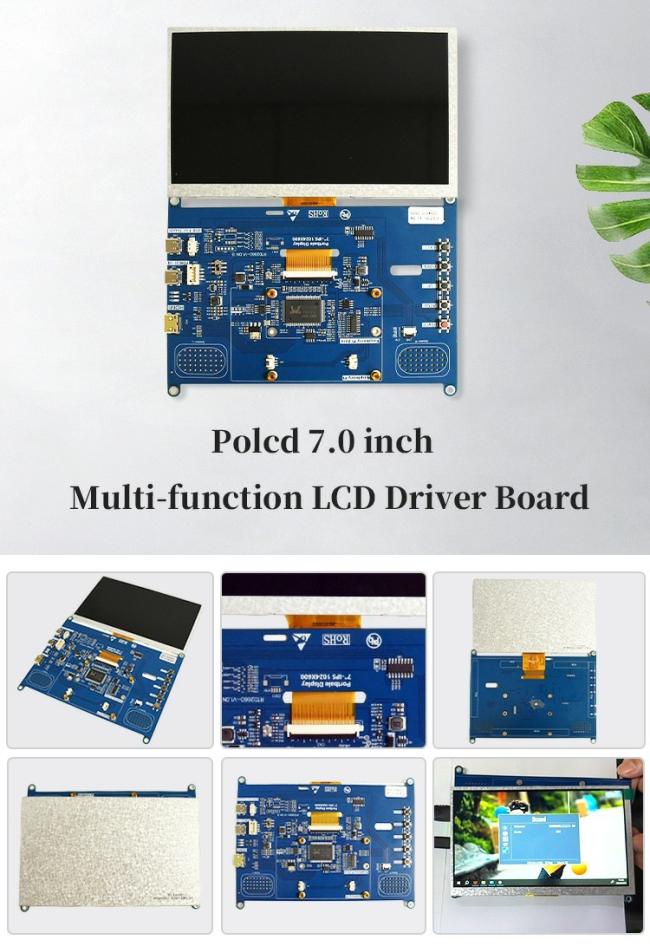

Polcd High Brightness 7 Inch 1024x600 RGB LCD Drive Board RTD2281 with Audio Speaker for Industrial Outdoor Display
|
Product name |
7 inch Multi-function Universal LCD Driver Board |
|
Model |
P070A1001 |
|
Main Chipset |
RTD2281CL |
|
Resolution |
800x480 / 1024x600 |
|
Luminance(cd/m2) |
350-1000 nit |
|
Video Input |
PC-RGB, HD-MI:Up to 1920*1080@60HZ |
|
Operating Speed |
155MHz |
|
Audio Output |
Analog audio signal input and speaker output |
|
Back-light |
LED Side-light type |
|
Touch Support |
Capacitive Touch / Resistance Touch or No Touch |
|
Key Functions |
Menu, Up, Down, Exit, Power |
|
power to panel |
3.3V |
|
standard interface |
USB, MINI H-D-M-I |
|
Relative humidity |
≤80% |
|
Storage temperature |
-20~+70 ℃ |
|
Operation temperature |
-10~+60 ℃ |
Technical Highlights
Main Chipset: RTD2281CL
Video Input: Mini HD-MI (Supports up to 1080P signal input)
Display Support: Optimized for 7-inch 50-Pin RGB interface LCD
Audio Output: Built-in speaker interface for integrated sound solutions
Touch Interface: USB touch support for capacitive panels
Versatile Application Scenarios
Maker & DIY Projects: Custom portable monitors, gaming consoles, and secondary PC displays.
Industrial HMI: Equipment monitoring panels and embedded control systems.
Smart Home & IoT: Interactive wall panels, security system monitors, and smart appliances.
Automotive & Medical: In-car entertainment displays and portable medical diagnostic screens.
