Hot Air Circulation Tray Food Dehydrator Industrial Drying Furnace OEM
Price:
Negotiate
MOQ:
Negotiate
Delivery Time:
10-60days after confirmed payment or by contract stipulation
Brand:
GSKA
Product Description
Hot Air Circulation Tray Food Dehydrator Industrial Drying Furnace OEM
Product Description:
The tray dryer is equipped with a low-noise, high-temperature-resistant axial flow fan, and an automatic temperature control
system. The entire circulation system is fully enclosed, which improves thermal efficiency. A forced dehumidification centrifugal
fan is optional for the dryer; it can regularly discharge the hot and humid air from the dryer, which can increase the efficiency
and achieve an energy-saving state. The Tray dryer is equipped with an automatic temperature control system for precise
temperature control. it is widely used in all kinds of materials.
Applicable Materials:
system. The entire circulation system is fully enclosed, which improves thermal efficiency. A forced dehumidification centrifugal
fan is optional for the dryer; it can regularly discharge the hot and humid air from the dryer, which can increase the efficiency
and achieve an energy-saving state. The Tray dryer is equipped with an automatic temperature control system for precise
temperature control. it is widely used in all kinds of materials.
Applicable Materials:
Drying process of powder, paste-like, and filter cake-like materials.
Typical Application:
Herbal plants and leaves, dehydrated vegetables, agricultural products, meat products, seafood, seeds, nuts, fiber garlic slices,
date slices, carrot sticks, cassava slices, onion shreds, feed, coconut, bamboo fiber, palm fiber, coconut shell, activated carbon
particles, synthetic rubber, catalyst particles, electronic components, plastic resins, etc.
Specifications:
| Model | GSKA-1 | GSKA-2 | GSKA-3 | GSKA-4 | GSKA-5 | GSKA-6 |
| Drying Unit | 4*3 | 5*3 | 4*3 | 5*3 | 4*3 | 5*3 |
| Mesh Belt(m) | 1.2 | 1.6 | 2 | |||
| Drying Length(m) | 8*3 | 10*3 | 8*3 | 10*3 | 8*3 | 10*3 |
| Material Thickness(mm) | 10-80 | |||||
| Drying Temperature(ºC) | 50-150 | |||||
| Steam Pressure(MPa) | 0.2-0.8 | |||||
| Heat exchange area(m²) | 816 | 1020 | 1056 | 1320 | 1344 | 1680 |
| Evaporation Capacity(kg/h20/h) | 150-450 | 240-650 | 220-600 | 280-750 | 300-600 | 350-850 |
| Number of fans | 14 | 17 | 14 | 17 | 14 | 17 |
| Power(kw) | 30.8 | 32.6 | 30.8 | 32.6 | 54.2 | 56 |
| Total Power(kw) | 35.3 | 37.1 | 35.3 | 37.1 | 58.7 | 60.5 |
| Dimensions(L*W*H) | 9.77 | 11.7 | 9.77 | 11.77 | 9.77 | 11.77 |
| 2.2 | 2.2 | 2.6 | 2.6 | 3.06 | 3.06 | |
| 4.7 | 4.7 | 4.7 | 4.7 | 4.9 | 4.9 | |
| Weight(kg) | 4800*3 | 5780*3 | 5400*3 | 6550*3 | 6350*3 | 7800*3 |
Product Details:

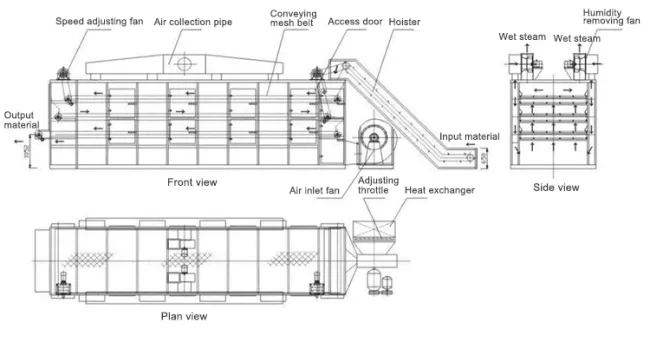

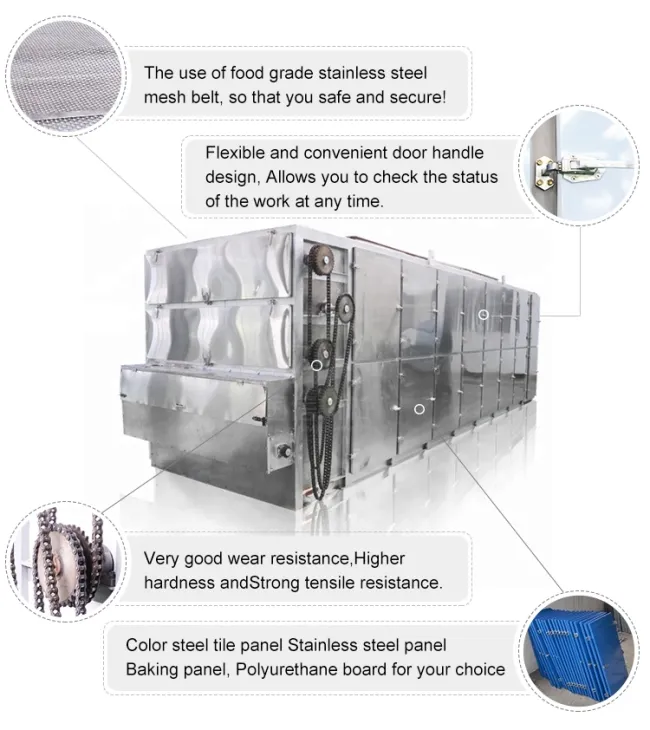

![Industrial Hemp Continuous Drying Oven]()
About Us Pre-sale services:
Act as a good advisor and assistant of clients; enable them to get rich and competitive
from the returns of their investment.
1) Select a suitable equipment model.
2) Design and manufacture products according to clients' special requirements.
3) Train technical personnel for clients.
4) Professional suggestion for the customer.
