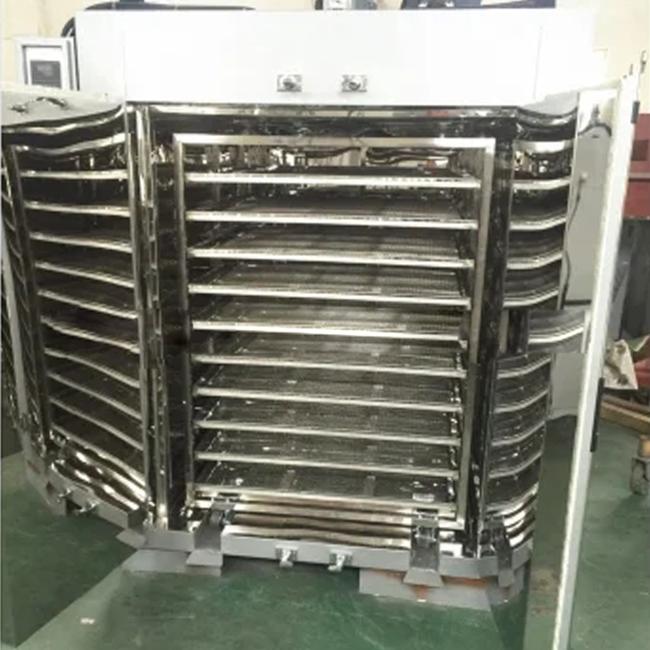

Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven
Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven
Industry usage:
DYG series special silicone rubber industry is the role of secondary vulcanization oven of silicone rubber products in an environment of high temperature secondary sulfide, the sulfide in the process of sulfide has a pungent odor, using exhaust fan to exclude outside the workshop at the top of the strong, avoiding the accumulation, in the formation of crystals attached on the inner wall of the oven, and the sealing strip.
Main Feature of vacuum drying oven price:
A vacuum drying oven is widely used in biochemical, chemical engineering, pharmaceutical, medical care and public health,agricultural scientific research, environmental protection and other research areas. It is applicable for powder drying, baking,as well as the disinfection and sterilization of various glass containers. In particular, it is suitable for rapid and efficient drying treatment of heat-sensitive, easily decomposed, easily oxidized materials and complex components.
Can be customized:
| Industrial Drying Oven | ||||||
|
Inner Size W*H*D (cm) |
External Size W*H*D (cm) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| 45×40×40 | 66×92×55 |
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| 50×60×50 | 70×125×65 | 4.5 | ||||
| 60×90×50 | 80×156×65 | 5.5 | ||||
| 80×100×60 | 100×166×75 | 8 | ||||
| 90×120×60 | 110×186×75 | 10 | ||||
| 140×120×60 | 160×186×75 | 12 | ||||
| 160×140×80 | 180×206×97 | 14 | ||||
| 180×140×100 | 200×200×118 | 16 | ||||
| This model is based on your requirements, including the design. | ||||||
Best material and stable performance:
The outer shell is made of high-quality steel plate, the surface is electrostatically sprayed, the inner liner is made of
galvanized sheet, and the outer casing is filled with thermal insulation material. The silicone sealing strip is used between the box door and the box body, which is safer to use and has a longer service life.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
