China Electronic Components And Equipment Pneumatic Bump Test Machine CE for sale

Electronic Components And Equipment Pneumatic Bump Test Machine CE

Price Negotiable

Price: Negotiate

MOQ: Negotiate

Delivery Time: 10-60days after confirmed payment or by contract stipulation

Brand: GSKA

Product Description

Electronic Components And Equipment Pneumatic Bump Test Machine CE

Product description:

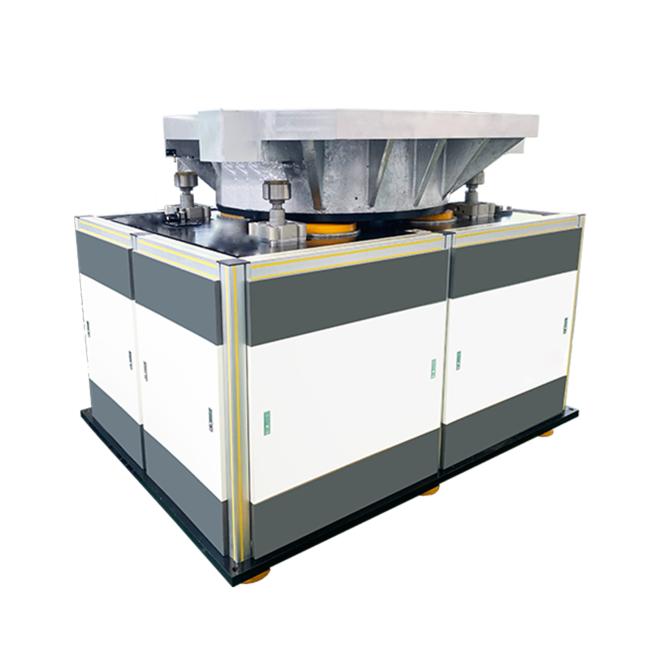

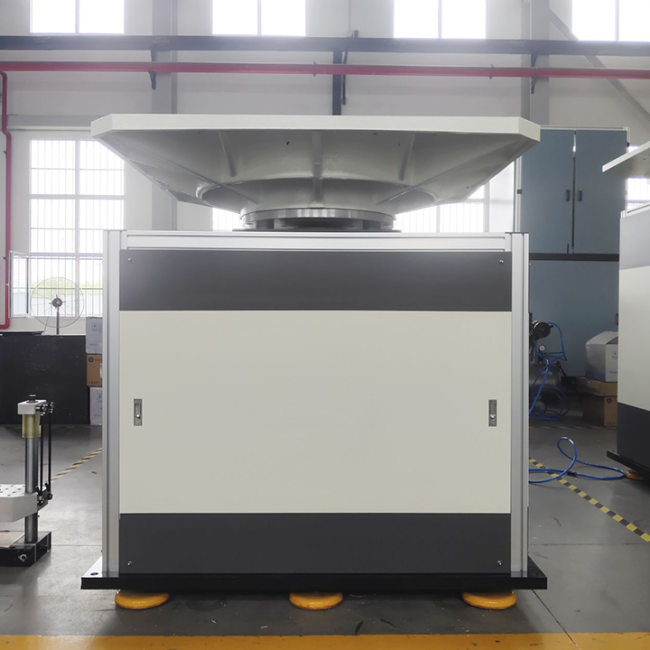

The GSKA20 series pneumatic bump test machine replaces the traditional mechanical cam-type crash bench and is suitable for repeated impacts on electronic components, equipment and other electrical and electronic products during transportation or working.

Fully pneumatic driven, clean and environmentally friendly, good repeatability and high reliability.

Control the frequency of collisions by adjusting the gas pressure to achieve continuous high-frequency collisions.

Test time and collision frequency can be set arbitrarily, and it will stop automatically after the test is completed

Shock test for battery packs more than 500kg, we recommend use KRD20 bump test machine

GSKA20 bump test machine is suitable for large size battery pack, and with middle acceleration and large pulse duration, such as:

1. 16g～60ms

2. 24g～16ms

3. 25g～15ms

4. 50g～11ms

5. 50g～15ms

Technical Specifications:

Model Parameters	GSKA 20－50	GSKA 20－100	GSKA 20－200	GSKA 20－500	GSKA 20－800	GSKA 20－1000	GSKA 20－1500	GSKA 20－2000	GSKA 30－2000
Load (kg)	50	100	200	500	800	1000	1500	2000	2000
Table Size (mm)	500× 500	600× 600	800× 800	1000× 1000	1500× 1500	1800× 1800	2000× 2000	2500× 2000	2500× 2500
Shock Waveform	half sine wave
Peak Acceleration (g)	3～150	3～120	3～100	3～80	4～60	5～50	5～50	5～40	5～30
Pulse duration (ms)	2～30			3～30	5～30	6~30	6~30	8~30	11~30
Bump Rate (Times/Min)	1~120		1~120	1~100	1~100	1-80	1~60	1-30	1-20
Overall Dimension (mm)	1050× 1050 ×1300	1050× 1050 ×1300	1100× 1100 ×1300	1200× 1200× 1500	1500× 1500× 1600	1800× 1800× 1600	2000× 2000× 1850	2500× 2000× 1950	2500× 2500× 2100
Weight (kg)	1500	1500	2000	2500	2800	7500	8500	9500	11000
Power Supply	AC220V ± 10%,50Hz
Air Source	≤1MPa
Working Environment	Temperature range 0 ~ 40℃; Humidity ≤ 80% non-condense
Standards	MIL-STD-810F IEC68-2-29

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair
