PLC Controlled Temperature And Humidity Chamber 20kg-60kg Practical
Programmable High Low Temperature Cold Heat Cycle Shock Test Chamber
(1) With magnetic USB recorder, an extra record is not necessary.
(2) Refrigerant Servo Valve Flow Calculation Control----energy saving 30%
(3) GSKA is ahead of peers for its unique technology: no condensation under high heat and high humidity test.
(4) The heater is no need to work at temperatures approaching absolute zero. The temperature in test chamber is thermostatic by PWM ---- a technology that adjusts the flow of cooling pipe, cold bypass pipe, hot bypass pipe under control in the flow and direction of chiller.
(5) Temperature Slope Controls in IEC68-2-56,68-2-30, and no condensation happens.
(6) Comparison: Ø The traditional refrigerant compressor has a problems of big fluctuation in temperature--- an obsolete technology, and it shortens service life of the compressors. The heating adopts PID temperature adjustment--- The cooling capacity is offset from the heating to achieve dynamic equilibrium, which is a waste of electricity.Ø The new developed one, PWM refrigerator, can save energy under low temperature operation.
|
Name
|
Thermal Shock Chamber | |||
|
Model
|
GSKA-010 |
GSKA-011
|
GSKA-012
|
GSKA-013
|
|
Inner dimensions of test room
|
300*300*250mm
|
450*450*360mm
|
650*650*500mm
|
850*850*700mm
|
|
Volume of test room
|
22L
|
72L
|
211L
|
505L
|
|
Load of test room
|
20kg
|
30kg
|
50kg
|
60kg
|
|
Upper limit preheat temperature
|
+220℃
|
|||
|
Heating time
|
Ambient temperature to ~ + 200℃, within in 30 minutes.
|
|||
|
Lower limit pre-cool temperature
|
-75℃
|
|||
|
Cooling time
|
Ambient temperature to ~ -70℃, within in 30 minutes
|
|||
|
High temperature exposure range
|
Ambient temperature +20 to +200°C
|
|||
|
Low temperature exposure range
|
–65 to -5°C
|
|||
|
Recovery time
|
Within 15 minutes
|
|||
|
Temperature fluctuation
|
≤±0.5℃
|
|||
|
Temperature deviation
|
≤±3 ℃
|
|||
|
Controller
|
Programmable color LCD touch screen controller
|
|||
|
Cooling system
|
Mechanical compression refrigeration system
|
|||
|
Exterior material
|
Steel Plate with protective coating
|
|||
|
Observation window
|
Interior lighting , double-layer thermo stability silicone rubber sealing
|
|||
|
Power Supply
|
380V 50HZ
|
|||

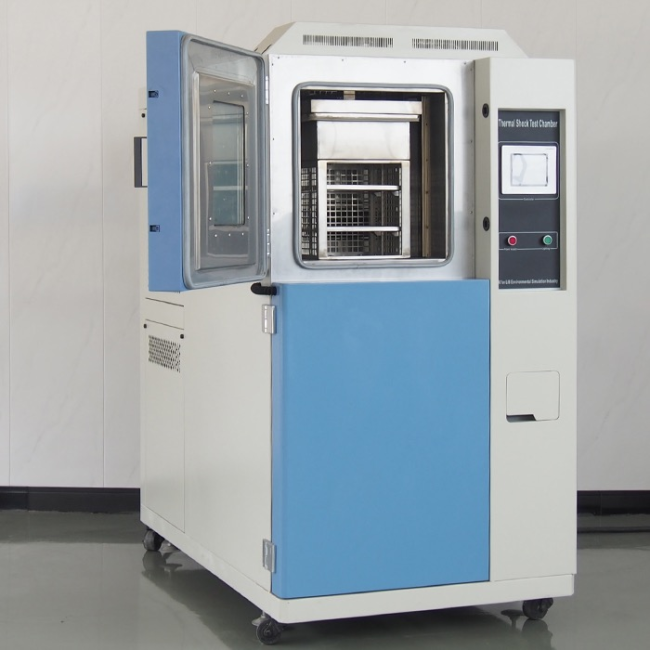

High Low Temperature Cold Heat Cycle Shock Test Chamber Thermal Shock Tester used to test the material structure or composite material in an instant by the extremely high temperatures and very low temperature continuous environment which can endure the degree of order in the shortest possible time to test its thermal expansion and contraction caused by chemical changes physical harm. The applicable the object material, including metals, plastics, rubber, electronic, ..., etc., High quality thermal shock test chamber can be used as the basis of its product improvement or reference.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Ways of service:
● Solve the problems in using the test chambers timely and Effectively
● Response within 6 hours once got questions from customers.
● Engineers available to service machines overseas to install and commissioning
● Training how to install, operate and maintain the machine
● On-site diagnosis and repair / Online diagnosis and repair
● Business Negotiations
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
