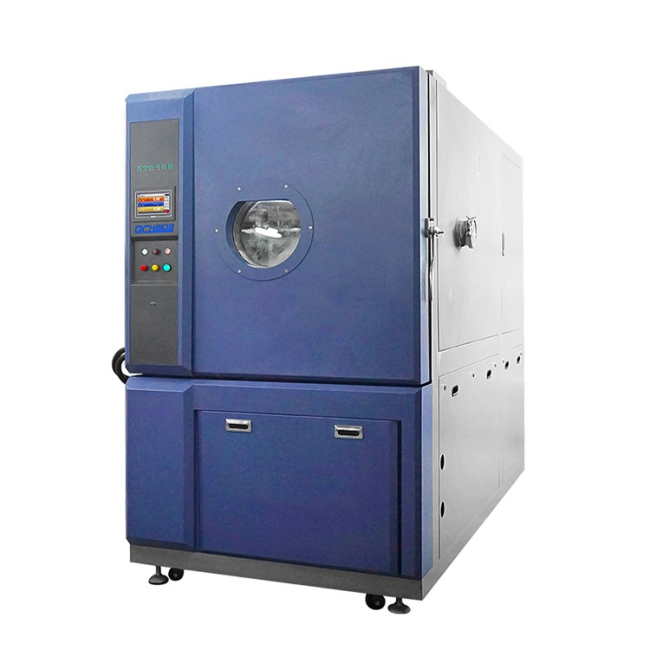

UL Temperature High Altitude Simulation Chamber Waterproof Multipurpose
UL Temperature High Altitude Simulation Chamber Waterproof Multipurpose
The Temperature humidity test chamber is applied to test the capabilities of heat-resistance, cold-resistance of materials.It's mainly used in testing the adaptability of electronics, electrical appliances,food,automobile,rubber and plastic,metal and other materials or finished products,components in the high and low temperature environment when storage,transport and using.You can select from a variety of sizes,ranges,and options to meet your specific testing requirements.
Characteristics:
1. Altitude test chamber Main box structure internal pressure structure
2. Climatic chamber temperature humidity altitude low pressure test chamber Control system of temperature and humidity: fan, heater, evaporator, humidifier
3. Refrigeration mode: mechanical compression binary refrigeration system
4. Vacuum units: rotary vane vacuum pump
5. Control panel: temperature, humidity and pressure controlled display screen, over temperature protection device, light switch.
Features:
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7. Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
|
Item
|
Specification
|
|
Internal material
|
#304 stainless steel, mirror finished
|
|
External material
|
Stainless steel with paint spray
|
|
Temperature range
|
-40~+100℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Temperature uniformity
|
±2℃
|
|
Cooling speed
|
1℃/min in average (without loading)
|
|
Heating speed
|
3℃/min in average (without loading)
|
|
Humidity
|
20 to 98% RH, without loading
(temperature from +20℃ to +85℃) |
|
Humidity fluctuation
|
±2.5%
|
|
Humidity uniformity
|
±3%
|
|
Controller
|
TATO PLC touch screen controller,
With RS232 and USB port, APP remote control function |
|
Vacuum range
|
Ordinary pressure ~ 1Kpa
|
|
Pressure fluctuation
|
±5%
|
|
Decompression time
|
≤10min
|
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantages:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM, ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
