Humidity Range ≥95% R·H Uv Weathering Chamber Ac 220v 50hz 5kw
Humidity Range ≥95% R·H Uv Weathering Chamber Ac 220v 50hz 5kw
use:

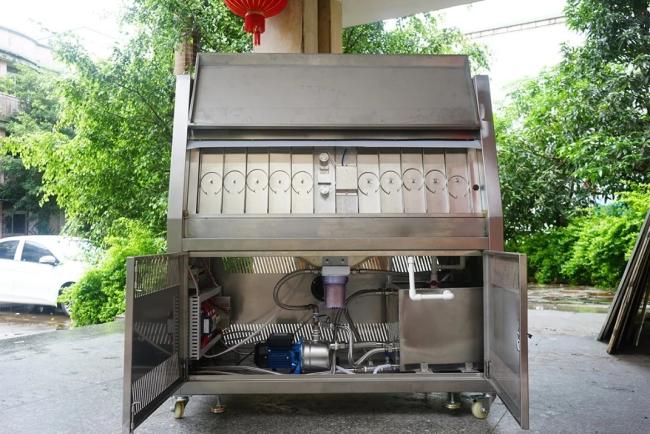

UV Accelerated Weathering Tester is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical... and so on.
Our UV aging test chamber series includes 4 different types of UV aging test boxes, QUV/se, QUV/basci, QUV/spray and QUV/cw. It can meet the testing standards of coatings, ink, adhesives, plastic products and other industries.
1. Different test methods and procedures: Automatic control, real-time monitoring and display.
2. The sample frame temperature: Sample temperature BPT directly display and automatic control.
3. Condensation control: Condensation directly display and automatic control.
4. Circular manner: Light, condensation and spray directly display and automatic control.
5. Light irradiance: Testing process can be set light irradiance energy and time and monitoring.
6. Spray water: Adjustable and display, automatic control, test process can be set spraying time.
7. The calibration function: Automatic temperature calibration, convenient, fast.
8. Alarm function: Automatic alarm .
9. Water supply way: Automatic feed water.
10. PC connection method : RS232
|
Model
|
GSKA-11
|
|
Control system
|
The man-machine interface, color LCD touch screen
|
|
Machine size
|
500×1300×1460(D×W×H)mm
|
|
Temperature range
|
RT+10℃~+70℃
|
|
Temp fluctuation
|
±1℃
|
|
Temp uniformity
|
±3℃
|
|
Humidity range
|
≥95% R·H
|
|
Distance between lamps
|
70mm
|
|
Distance between samples and lamps
|
50±2 mm
|
|
Lamp life
|
1600~1800h(Imported lamps)
|
|
Light source
|
UVA-340 or UVB-313 8 pcs(40W/each lamp)
|
|
Wavelength of UV light range
|
UV-B Wave (280~315nm) or UV-A Wave (320~400nm)
|
|
Power
|
AC 220V 50HZ 5KW
|
|
Size of standard specimen
|
75×150×10mm WHD (customized available)
|
|
Net Weight
|
150KG
|
|
|
● SAE J2020 ● PREN 1062-4 ● ISO4892-3 ● ASTM G53 ● EN534 ● ISO11507 ● ASTM D4587 ● ISO 11507 ● ASTM D4329 ● ASTM D5208 ● ISO4892-3 ●ASTM D4587
|
Our advantages:
1) Direct factory with 10+ years manufacturing experience in test equipment.
2) Products are in accordance with ASTM, IEC, ISO, JIS and other international standard.
3) Overseas technical and onsite installation support, have been 8 countries, such as America, Turkey, Australia etc.
4) Professional R&D staff with more than 5 years experience in this filed.
More produced:
1. Thermal Shock Chamber
2. Walk In Test Chamber
3. Salt Spray Test Chamber
