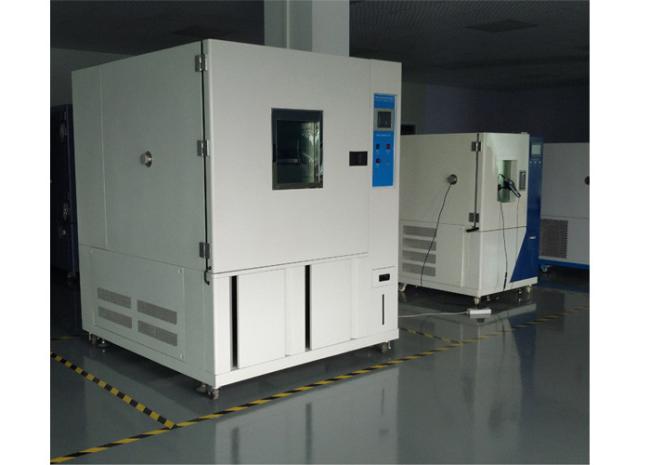

Programmable LCD Touch Screen Benchtop Environmental Test Chambers 20%-98%RH
Programmable LCD Touch Screenbenchtop Environmental Test Chamber 20%-98%RH
Led high and low temperature test room use:
Test the heat, cold, dry and moisture resistance of various materials. Suitable for electronics, electrical appliances, food, vehicles, metal, chemical, building materials and other factories. Can meet the following standards: GB2423.1-89 low temperature test method, GB2423.2-89 high temperature test method, GB2423-93 test D6 alternating damp heat test method, IEC68-2-30 test method.
This Programmable Constant High-Low Temperature Humidity Testing Cabinet can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.
Related Standards for Constant High Low Temperature Humidity Test Chamber Cabinet Programmable:
IEC60068 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Features about temperature humidity test chamber:
1.Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design, built-in lights to facilitate the test sample state of real-time observation in the course of testing.
2.Large-size LCD display screen, simple operation, easy to edit programs. PID with automatic calculation function, show failure message .
3.Material quality of inner box is SUS304 # mirror-face stainless steel imported, and outer box is steel plate and the paint. Box body is processed shape using CNC machine tool, its shape is beautiful and fine.
4.An RS-232 communication interface, matching recorder, strong expandability.
5.Heat preservation material used glass fiber cotton of high-intensity PU foam and high density, which can avoid unnecessary energy loss.
Specification:
| Material | Inner material | SUS 304# steel plate | |||
| Outside material | SUS 304# steel plate(surface disposing) | ||||
| Thermal insulation material |
Thermostability high density chlorine formic acid foam insulator material |
||||
| System wind pathround-robin mode | centrifugal fan-broadband enforce circulation | ||||
| Refrigeration way | Single stage compression refrigeration | ||||
| Refrigerator | whole sealing piston France Taikang brand Compressor | ||||
| Freezing fluid |
R4O4A or USA Dupont environmental protection refrigerant(R23+R404) |
||||
| Condensation way | forced air cooling or water-cooling | ||||
| Heater | Nichrome heating wire heating | ||||
| Humidifier | Semi-enclosed steam humidification | ||||
| Water-provide way | full-automatic periodical feeding | ||||
| Standard configuration |
1 Observe window(double-deck cavity toughened glass),1 50mm test hole in the left,1 PL inner chamber lamp,2clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
||||
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection,Protection switch,fuse stoppage warning system |
||||
| Power | 1φ 220V AC±10% 50/60Hz 3φ 380V AC±10% 50/60Hz | ||||
Constant High Low Temperature Humidity Test Chamber Cabinet Programmable special for you , any question , please let us know,thank you
