Low Noisehigh Temperature Test Chamber Test Chambers Range -100C +300C
Low Noisehigh Temperature Test Chamber Test Chambers Range -100C +300C

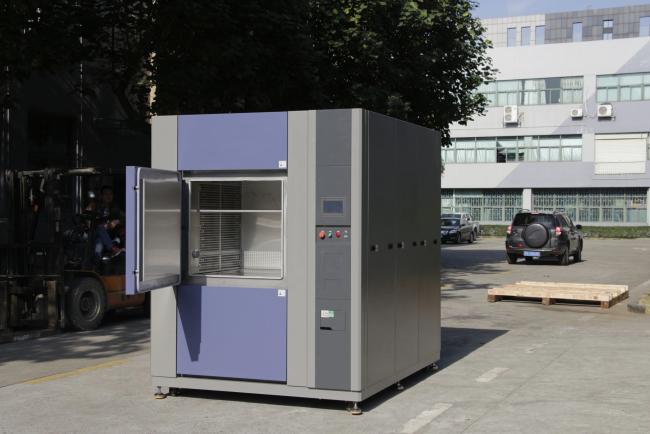

Brief introduction of high and low temperature test chamber:
this series of temperature test box can simulate a variety of temperature and humidity environment, suitable for detecting electronics, electrical appliances, food, automobile, rubber, plastic glue, metal, printing products, furniture products and other products, Meet GB/T10586, GJB150.9A, GJB150.6A, GB/T22894, JJFI101, GB/2423.3 GB/T2423.4, IEC68-2-30, GB/T4857.2, GB/T9278; Providing reliability and stability parameters in various harsh environments will provide you with the basis for predicting and improving product quality and reliability.
This Programmable Constant High-Low Temperature Humidity Testing Cabinet can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.
Features about temperature humidity test chamber:
1.Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design, built-in lights to facilitate the test sample state of real-time observation in the course of testing.
2.Large-size LCD display screen, simple operation, easy to edit programs. PID with automatic calculation function, show failure message .
3.Material quality of inner box is SUS304 # mirror-face stainless steel imported, and outer box is steel plate and the paint. Box body is processed shape using CNC machine tool, its shape is beautiful and fine.
4.An RS-232 communication interface, matching recorder, strong expandability.
5.Heat preservation material used glass fiber cotton of high-intensity PU foam and high density, which can avoid unnecessary energy loss.
Specification:
| Material | Inner material | SUS 304# steel plate | |||
| Outside material | SUS 304# steel plate(surface disposing) | ||||
| Thermal insulation material | Thermostability high density chlorine formic acid foam insulator | ||||
| System wind pathround-robin mode | centrifugal fan-broadband enforce circulation | ||||
| Refrigeration way | Single stage compression refrigeration | ||||
| Refrigerator | whole sealing piston France Taikang brand Compressor | ||||
| Freezing fluid | R4O4A or USA Dupont environmental | ||||
| Condensation way | forced air cooling or water-cooling | ||||
| Heater | Nichrome heating wire heating | ||||
| Humidifier | Semi-enclosed steam humidification | ||||
| Water-provide way | full-automatic periodical feeding | ||||
| Standard configuration | 1 Observe window(double-deck cavity toughened glass),1 | ||||
| Safety device | Non- fuse-switch(compressor overload, refrigerant high low voltage, | ||||
| Power | 1φ 220V AC±10% 50/60Hz 3φ 380V AC±10% 50/60Hz | ||||
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Constant High Low Temperature Humidity Test Chamber Cabinet Programmable special for you , any question , please let us know,thank you
