Auto Chart Projector Ophthalmology Equipment Visual Acuity Examination Apparatus

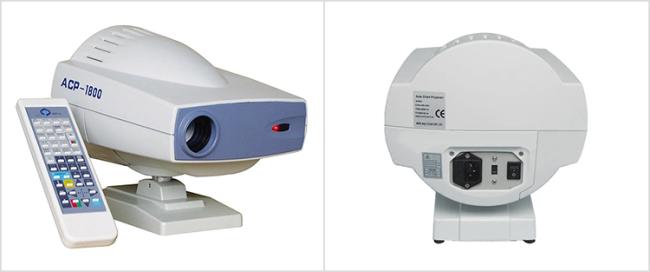

Auto chart projector ACP-1800LA with CE certificate
1. Using cool lights:
This kind of light can be used long time, the clearness of its natural light is very high. Moreover, this light is energy-saving.
2. Customer Programmable:
Icons can be displayed in predefined sequence by programming.
3. Display Single Icon:
Display single icon by multi-function mask plate.
4. Tilted Placement:
Perfect image position can be obtained by adjusting the horizontal axis of projector.
Features:
1.Easy installation and maintenance: It is quite easy to replace light bulks, and unnecessary to adjust its focus and position.
2.Customer Programmable: Icons can be displayed in predefined sequence by programming.
3.Display Single Icon: Display single icon by multi-function mask plate.
4.Tilted Placement: Perfect image position can be obtained by adjusting the horizontal axis of projector.
5.Standards parts: Metal plate with polarized coating (410x 410mm)
Technical Specification:
| Model | ACP-1800A/B/C | ACP-1800LA/LB/LC | |
| Projection Distance | 1.5m~6m | ||
| Projection Magnification | 30x (at 5m) | ||
| Projection Size | 330mm (w) x 270mm (H) (at 5m) | ||

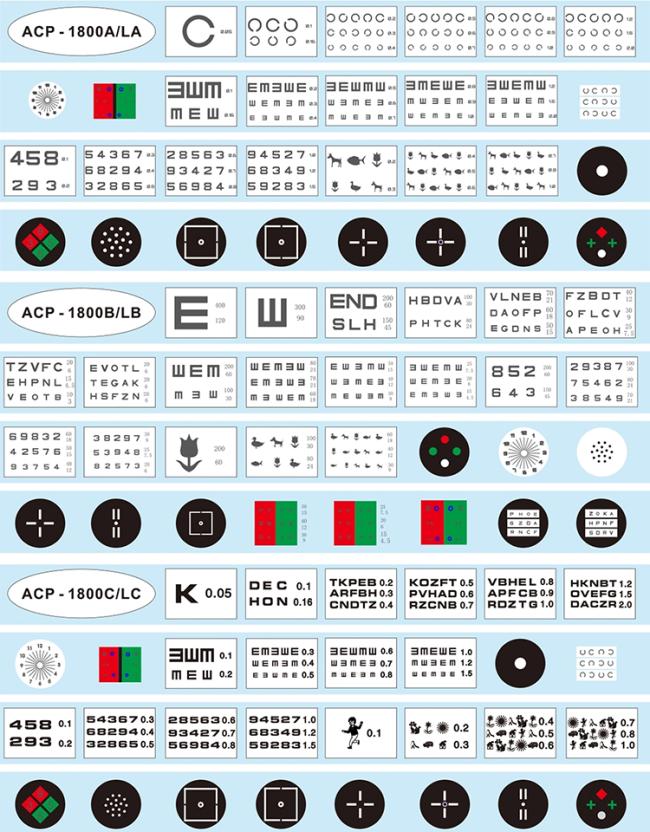

| Chart | 30 different pattern | ||
| Speed of chart conversion | One chart per 0.03s | ||
| Mask | 1 open, 5 horizontal different lines, 8 vertical lines, 21 single letters, 1 red/green | ||
| Speed of mask conversion | One mask per 0.03s | ||
| Program | 2 sets programs, each program contains up to 30 steps | ||
| Light source | 12V, 50W Halogen Lamp | LED lamp | |
| Auto-off function | After 10 minutes idle time | ||
| Power source | AC 220V, 50HZ 0r 110V, 60Hz | ||
| Power consumption | 80W | 40W | |
| Accessories | Remote control, polarized metal screen, halogen lamp, polarized glasses, fuses (2), batteries (2) | Roommate control, Polarized metal screen, polarized glasses, fuses (2), batteries | |
