ODM-2100S Low price stable quality Opthalmology Ultrasonic A/B Scanner with ISO, CE
ODM-2100S Ultrasonic A/B Scanner for Ophthalmology is specially designed for doctors those having a higher demanding with his diagnosis. From the fine image to the possibility of working with PC, each feature gives a feeling of profession. Besides these, you could also make two images the same time for comparing purposes. While working with computer, you may save images, video and diagnostic reports as many as you like into your PC or laptop.
Features

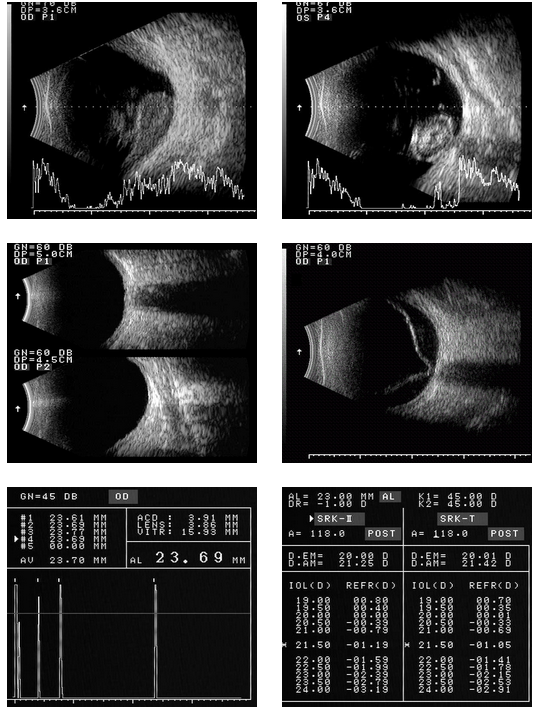

l Imaging Mode: B, B+A, B+B, A
l High Resolution Images
l Memory: up to 4 Images
l Zoom: 8 Steps
l Image Post Processing
l Distance Measurement
l 7” non-interlaced CRT Monitor
l Foldable Keyboard & Portable Design
l Trackball for Easy Measurement and Operation
l Real-time Clock
l Optional Image Output: Video Printer or Workstation
Specifications
B-SCAN
l Probe Frequency: 10MHz
l Scanning Angle: 53°
l Total Gain: ≥98dB, adjustable
l Resolution: axial ≤ 0.2mm, lateral ≤ 0.4mm
l Zoom: 31mm ~ 63mm, 8 steps adjustable
l Post Processing: 4 groups of curves (Linear, Logarithmic, Exponential, S-curves)
l Multi-groups of Electronic Calipers for Distance Measurement
l Various Area Measurement Methods
l Gray Scale: 256 levels
A-SCAN
l Probe: 10MHz with Fixation Red Light
l Resolution: 0.01mm
l Gain: ≥ 98dB with an adjustable range of 0 ~ 59dB
l Biometry Accuracy: ≤ ±0.06mm
l Measuring Range: 16 ~ 39mm
l Measuring Parameters: Anterior Chamber Depth, Lens Thickness, Vitreous Length, Axial Length
l 5 Different Measuring Modes: Automatic (Normal, Dense Cataract, Aphakic and Pseudo-aphakic) &Manual
l 5 Axial Readings
l IOL Formula: SRK/II, SRK-T, BINKHOST-II, HOLLADAY, HOFFER-Q,HAIGIS
Others
l AC 100 ~ 240V, 50/60Hz
l Weight: 10Kg
l Dimension: 360 x 300 x 260 mm
