Portable Syringe Hospital Infusion Pump With Drug Library
Price:
$150.00 - $350.00/Units
MOQ:
1PC
Delivery Time:
about 5 days
Brand:
SUCE
Product Description
IS01PLUS Single Channel Syringe Pump with Drug Library
IS01plus Serial Syringe Pump is a kind of micro syringe pump with certain rate and constant volume. It implements its injection function through a microprocessor which accurately controls the stepping motor to produce the horizontal movement force through a mechanical transmission device to drive the piston rod of syringe. There are various kinds of sensors in the pump which can accurately control the injection rate of syringe and monitor the injection process. Therefore, it is a kind of high-precision intelligent syringe pump.
Application
IS01plus Serial Syringe Pump is especially suitable for clinical treatment that needs long-time accurate control of injection rate and supervision of injection process. It can be widely applied in traditional intravenous, anesthetic, anticoagulant injection and chemotherapy for patients. It can also be applied in ICU and CCU etc.
Features
* Drug Library.
* Separate operation between the two single channels.
* Three working modes: rate mode, time-volume mode, dosage-weight mode.
* Automatically calibration and compatible with all standard syringes of 10ml~50ml..
* Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.
* Large LCD screen displays working status.
* KVO and Bolus functions.
* Save the last infusion rate automatically when there is unpredicatable switch off.
* Transfer the message between the Nurse-call System and the pumps.
* Separate operation between the two single channels.
* Three working modes: rate mode, time-volume mode, dosage-weight mode.
* Automatically calibration and compatible with all standard syringes of 10ml~50ml..
* Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.
* Large LCD screen displays working status.
* KVO and Bolus functions.
* Save the last infusion rate automatically when there is unpredicatable switch off.
* Transfer the message between the Nurse-call System and the pumps.
Specification
|
Applicable Syringe Size
|
10ml, 20ml,30ml,50/6oml
|
|
Rate
|
5ml: 0.1~100.0ml/h
10ml: 0.1~300ml
20ml: 0.1~600ml
30ml: 0.1~900ml
50/60ml: 0.1~1500ml
|
|
Bolus Rate & volume
|
5ml: 0.1~100ml/h
10ml: 0.1~240ml/h 0.1~5ml
20ml: 0.1~480ml/h 0.1~10ml
30ml: 0.1~720ml/h 0.1~10ml
50/60ml: 0.1~1200ml/h 0.1~10ml
|
|
KVO Rate
|
0.1~5.0ml/h
|
|
Injection Accuracy
|
within ±3%(after calibration)
|
|
Occlusion
|
High: 800mmHg±200mmHg(106.7kPa±26.7kPa)
Medium: 500mmHg ±100mmHg (66.7kPa±13.3kPa)
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) |
|
Alarms
|
Injection soon finish, end of injection, occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose
etc. |
|
Power Source
|
AC 100V～240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
|
|
Dimension
|
280mm (L) × 210mm (W) × 130mm (H)
|
|
Weight
|
2.2kg (net weight)
|

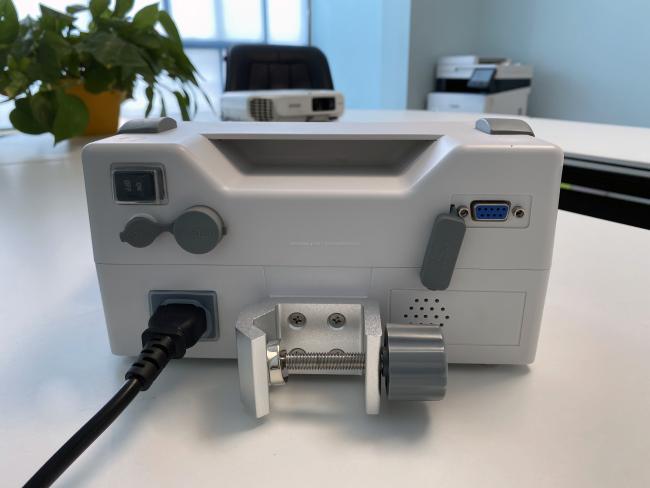

Detail images
