Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38
Price:
$399.00/Sets
MOQ:
1pc
Delivery Time:
about 5 days
Brand:
CONTEC
Product Description

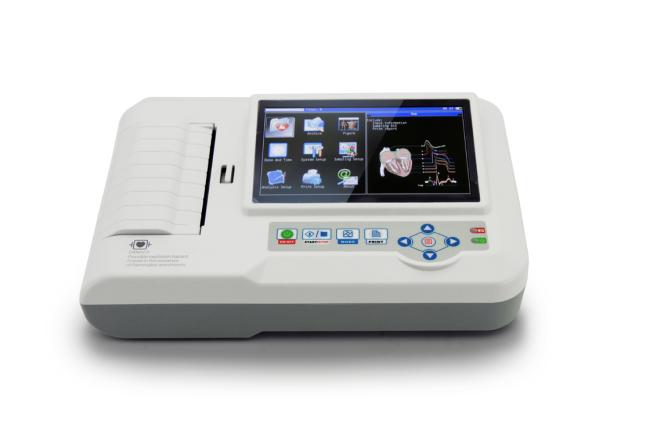

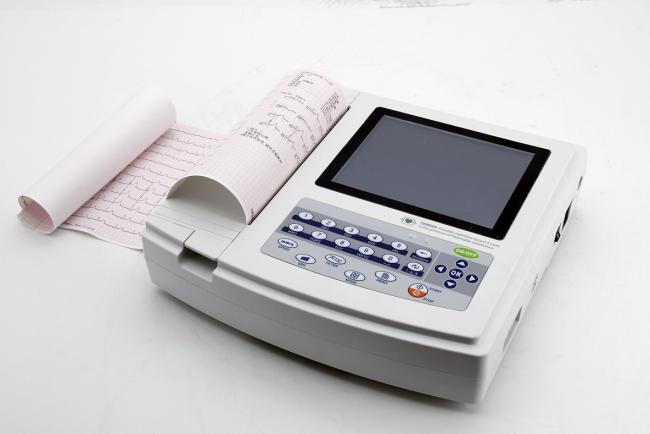

Factory wholesale price CONTEC Digital Twelve channels touch screen ECG electrocardiogram machine EC38
Overview - Digital Twelve Channel ECG Machine
1.7" TFT, touch screen, LED backlight 2. Digital isolation technology and signal PRO-cessing solution, digital filter 3. Patient managment, name and age and ID. 4. Detail analysis report. 5. Multi-language options: Germany, France, Italian, Turkey, etc 6. Built-in lithium rechargeable battery, wide thermall printing system 7. USB and LAN socket. Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive 8. Auto-measurement, auto-analysis, and auto-interpretation.
Technical parameters
|
Standard 12 leads
|
Standard 12 leads
|
|
Measurement parameters
|
HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
|
|
Patient leak current
|
<10µA
|
|
Frequency response
|
0.05 ~ 150Hz(-3dB)
|
|
Time Constant:
|
≥ 3.2s
|
|
CMRR:
|
> 100dB
|
|
Dimention of recording paper
|
80mmx20m
|
|
Paper speed
|
25mm/s, 50mm/s
|
|
Input Circuit:
|
< 50μA
|
|
Noise Level:
|
≤ 15μVp∽p
|
|
Sensitivity valve:
|
5, 10, 20mm/mV.
|
|
Polarization Voltage:
|
±300mV
|
|
Calibration Voltage:
|
1mV ±2%
|
|
Product safety type
|
Class I, CF. Defibrillation and pacing protection
|
|
Dimension
|
130mm(L)¡Á 74mm(W)¡Á 25mm(H)
|
|
NET Weight
|
2.3KG
|
|
Input Impedance:
|
≥ 50 MΩ
|
Detailed Images
