Factory 50kw 630ma High Frequency Digital X ray Machine DR System in Stock Medical Imaging Equipment
Price:
$7,000.00 - $7,899.00/Units
MOQ:
1pc
Delivery Time:
about 10 days
Brand:
SUCE
Product Description

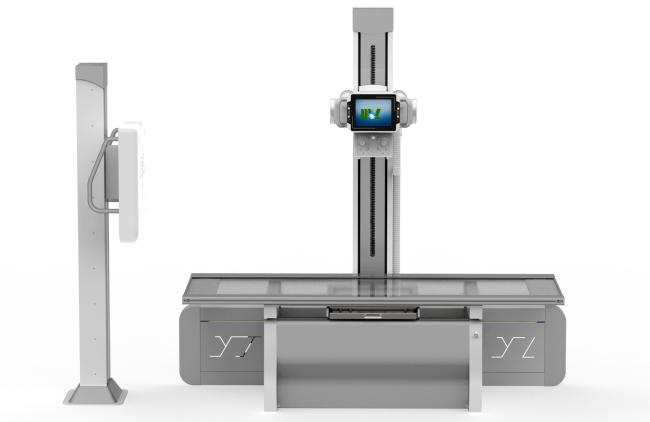

Hospital Medical Equipment High Frequency Digital X-ray Machine
Fixed type digital X ray machine price HX04
50kw 630ma, 32kw 400ma, 20kw 200ma
New Design
Main configurations:
1. High frequency high voltage generator (including control console)
2. X-ray tube
3. Focus: small focus:1.0mm, large focus:2.0mm
4. Anode thermal capacity:140khu
5. Collimator power supply:ac24v
6. Radiography bed
7. X-ray components supporting frame
8. Braking mode:elecrtomagnetic brake, braking force>=98N,
9. Buttor operation filter:N40,r10,11,stationary type,size:14”*17”
10. Bed size: L2000mm*w760+H685mm
11. Vertical moving range: >=825
12. Horizontal moving range: >=250mm
Applications & Advantages
Applicable to orthopedics, emergency room, operating room, etc., As human head, limbs, chest, spine, lumbar spine for medical diagnosis.
Detailed Parameters
|
Parameter
|
20kw 200mA
|
32kw 400mA
|
50kw 630mA
|
||
|
Intermittent mode
|
100kV ,200mA,20kW
|
100kV ,630mA,50kW
|
|
||
|
Power Voltage
|
Three-phase five wires 380V±38V
|
|
|
||
|
tube current
|
Radiography16mA~200mA
|
Radiography16mA~630mA
|
|
||
|
Output Voltage
|
Radiography 40-125KVstep 1kV
|
|
|
||
|
resistance power
|
less than 0.5Ω
|
|
|
||
|
Output power
|
20kW
|
32kW
|
50kW
|
||
|
Exposure Time
|
Radiography 0.0025s~6.4s adjustable
|
|
|
||
|
Nominal Frequency
|
≥30kHz
|
|
|
||
|
Anode speed
|
2800r/min
|
|
|
||
|
Anode heat capacity
|
140KHU
|
|
|
||
|
Focus
|
Small focus:1.0mm Large focus:2.0mm
|
|
|
||
|
L*W*H of bed surface
|
2100mm×825mm×650mm
|
|
|
||
|
Horizontal moving range
|
≥250mm
|
|
|
||
|
Vertical moving range
|
≥825mm
|
|
|
||
|
grid density
|
≥40 lines/cm.
|
|
|
||
|
grid ratio
|
10:01
|
|
|
||
|
Focus Distance
|
100cm
|
|
|
||
|
Cassette size
|
5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″
|
|
|
||
Main Parts
X-ray generator
Rich DR upgrade reserve interface Fault self-diagnosis and protection Automatic calibration of tube current X-ray tube has the function of filament dormancy AEC function, different ionization chamber as optional Analog一digital double一loop control, simple operation, high intelligence High kV, high current, high power,strong penetration,able to handle obese patients
Filming bed
Lengthways moving range: 1000mm Transverse moving range: 230mm Moving range of flat panel detector holder: 350mm Load-bearing of the filming bed: no less than 150kg Thickness of filming bed board: 8mm solid carbon fiber plate

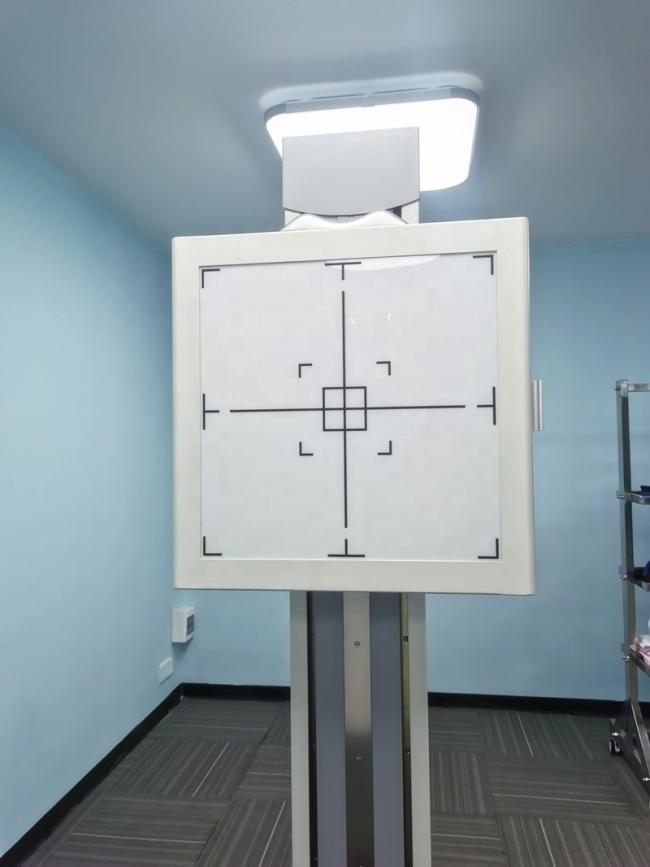

Vertical Type Filming Rack
Height of vertical type filming racks: 1920mm
Up-and-down motion range of flat panel detector:1300mm( manual operation)
Up-and-down motion range of flat panel detector:1300mm( manual operation)
