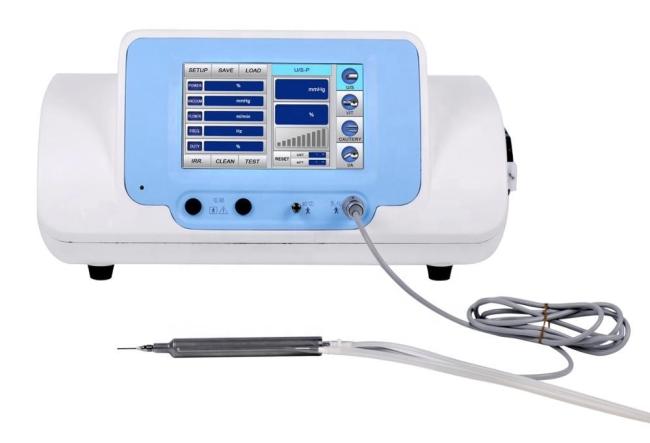

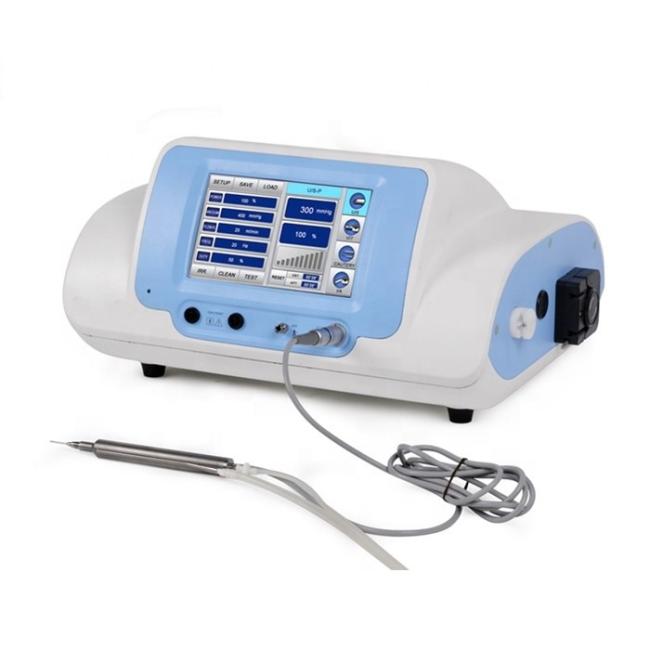

Portable 40kHz Ophthalmology Equipment Ultrasonic Phaco Emulsifier Machine

Portable 40kHz Ultrasonic phaco emulsifier machine for cataract extraction

1, All parts of the system are fully controlled and monitored by Microprocessor Technology

2, Smoothly and efficently controlling the emulsifier process with digital frequency tracing technology of handpiece

3.Easy operation and user-friendly interface with large touch screen TFT and functional menu

4, Up to 10 sets of parameters preset meets different requirements and simplifies the surgery operation

5, Auto test checks tubing and handpiece problems(e.g: block or leakage

6, The peristaltic pump gives complete control of aspiration flow rate as well as freedom from anterior chamber shallowing. This way can give stronger sution when working in I/A

7, Built-in vitrectomy and cautery

8, Intelligent voice reminder

Portable 40kHz Ultrasonic phaco emulsifier machine for cataract extraction

Ultrasonic Emulsification(U/S):

1. Frequency: 40KHZ

2. Functional mode: Continuance. Pulse Linear, Burst

Continuance: Emulsifying Power range: 0-100%

Pulse: Frequency range 1-99HZ

Linear: Emulsifying power linearly controlled by

the Footswitch. varies between 0-100%

Burst-stopping Time: 1.5-0s

Burst-working Time: 5-100ms

3. Maximum Vacuum: 500 mmhg

4. Maximum Flux Rate: 40 ml/min

Irrigation/Aspiration(/A):

Flux Rate: 0-40 ml/min

Reflux Rate: 20 ml/min

Max Vacuum: 0-500 mmh

Vitrectomy (VIT):

Cutting Power Source: Air pump

Cutting Frequency: 20-600/min, Single cut mode

Maximum Vacuum: 500 mmhg (2000)

Maximum Flux Rate: 40 ml/min

Cautery

Maximum Power: 10 W+20%(2000

Type: Bipolar

Power Preset between: 0-100
