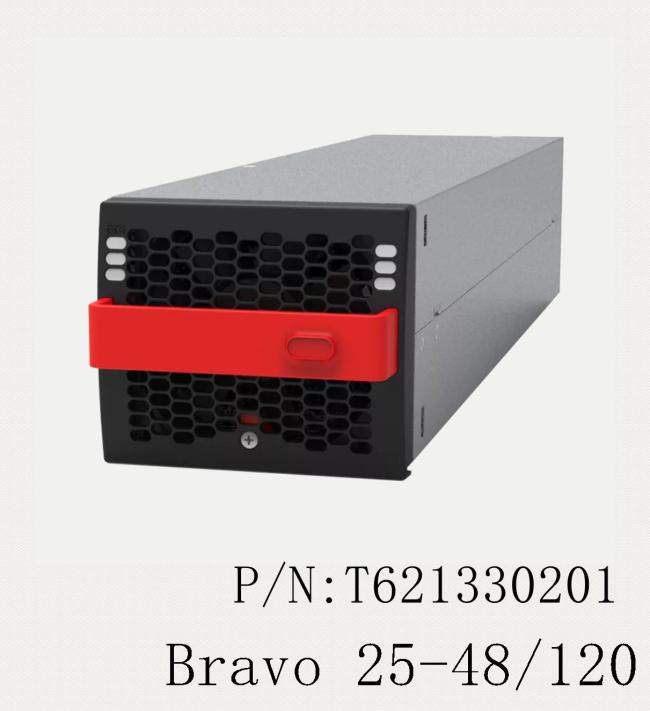

Bravo 25 - 48/120 DC AC Inverters 2250W 120Vac P/N T621330201
CET Modular Inverter Bravo 25 - 48/120 2250W 120Vac Inverter (P/N.: T621330201)
Description:
Bravo 25 is a compact modular inverter that converts a 48 Vdc power source into 120 Vac. By using several modules,
we can offer solutions for two-phase (2x120Vac + N) or three-phase (3x208Vac + N) infrastructures.
An additional AC input is used under normal conditions to achieve an overall conversion efficiency of 95%.
In the event of a grid failure, it automatically switches to the DC to secure the loads.
Invest step-by-step in your power infrastructure with a modularity from 2.75 kVA to up to 88 kVA.
The hot swap feature makes maintenance easier.The low ripple voltage avoids any disturbances on DC loads and batteries.
Key features
- Extra AC input for increased efficiency
- Compact design
- From 2.75 to 88 kVA
- 1P or 3P infrastructure
- No disturbances on DC loads & batteries
Application:
- telecom
- Data computer
- Mass transport
- Industry
- Power Utilites
- Renewable
Main Features
• High efficiency (DC to AC >93%)
• Compact design
• Dual input sources (AC & DC) with wide AC input range 90 Vac to 140 Vac
• Transfer time reduced to 0 ms
• Up to 11 kVA in 2 U
Parameters:
| In: DC voltage (input range) | 48 Vdc (40-60) |
| In/Out: AC voltage (input range) | 120 Vac (90-140) |
| Output power | 2.75 kVA / 2.25 kW |
| Efficiency: DC/AC | 93% |
| Efficiency: AC/AC | 95% |
| Temperature | -20°C to 65°C |
| Dimension | 2U x 103 mm x 435 mm |
| Part number | T621330201 |
