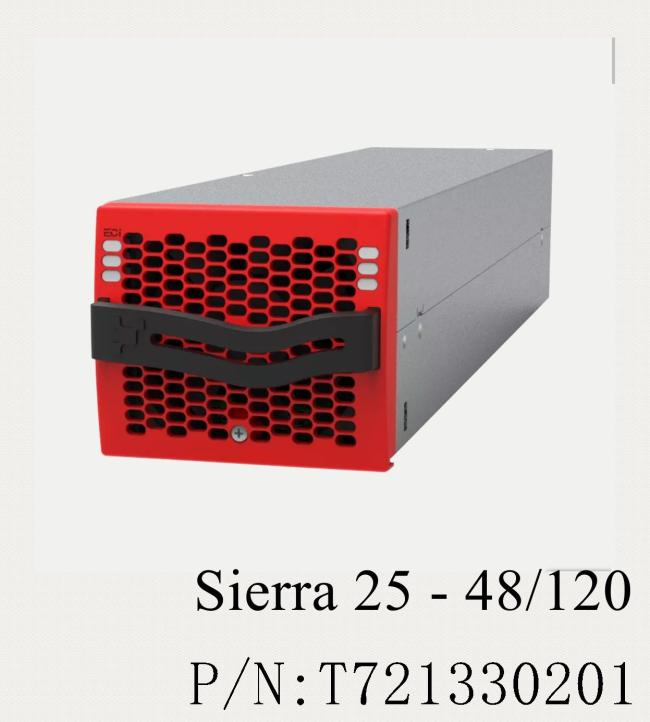

Sierra 25 - 48/120 2.75KVA 2.55KW 48v To 120v Converter For AC DC Load P/N T721330201
CET converter Sierra 25 - 48/120 2.75KVA 2.55KW Converters for AC &DC load (P/N:T721330201)
Description:
Sierra 25 – 48/120 can be used as a UPS to secure AC & DC loads and charge the batteries.
The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,
phase balancing or energy sharing through DC distribution, among many others.
By using several modules, we can offer solutions for two-phase (2x120Vac + N) or three-phase (3x208Vac + N) infrastructures.

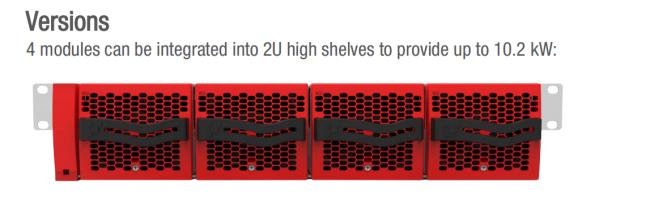

The module can be integrated in small or large cabinets to reach up to 1.85 MW. With our new Inview S monitoring,
you can benefit from a unique experience.
Key Features:
- Secure AC & DC loads;
- Many innovative applications;
- Compatible with Inview S;
- Modularity: from 2.55 kW to 1.85 MW;
Parameters:
| In/Out: DC voltage (range) | 48 Vdc (40 – 60) |
| In/Out: AC voltage (range) | 120 Vac (90 – 140) |
| Output power | 2.75 kVA / 2.55 kW |
| Efficiency: DC/AC | 92.5% |
| Efficiency: AC/AC | 94.5% |
| Temperature | -20°C to 65°C |
| Dimension | 2U x 103 mm x 435 mm |
| Part number | T721330201 |
more......
