MK-710WS Water-Cooled Screw Chiller 749.9KW - Industrial Refrigeration Machine
Description
The waterrcooled screw chiler is an efficent and stable industrial relrigeration equioment that adopts advanced screwcompression technology and high-efficiency shell and tube condenser, designed specilically for industrial environmentsthat require large cooling capacily and continuous cooling. It has high refrigeration efficiency, stable aperation, energyconservation and environmental protection, and is widely used in industries such as central air conditioning systems,chemicals, food and beverage, pharmacoutical manutacturing, clectronics, etc., providing customers with relablerefrigeration solutions.
Specification
|
型号 Model |
MK-710WS |
MK-830WS |
MK-930WS |
MK-410WD |
MK-510WD |
MK-620WD |
MK-710WD |
||
|
参数 Parameter |
|||||||||
|
额定制冷量 |
KW/h |
50HZ |
749.9 |
878.5 |
991.1 |
815.8 |
1035.4 |
1287.8 |
1499.8 |
|
X1000Kcal |
644.9 |
755.5 |
852.3 |
701.6 |
890.4 |
1107.5 |
1289.8 |
||
|
温度范围 |
5℃-15℃/25℃-30℃ |
||||||||
|
电源 |
3N-380V/50Hz |
||||||||
|
压缩机 |
类型 |
半封闭螺杆式 Semi-hermetic screw |
|||||||
|
数量 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
||
|
额定功率 KW |
154.0 |
181.4 |
204.9 |
175.0 |
214.4 |
270.0 |
308.0 |
||
|
额定电流 A |
267.3 |
317.4 |
357.7 |
308.8 |
370.0 |
465.6 |
534.6 |
||
|
能效调节 |
0.25%-50%,75%-100% |
||||||||
|
制冷剂 |
种类 |
R22 |
|||||||
|
充注量KG |
160.0 |
184.0 |
208.0 |
96*2 |
120*2 |
144*2 |
160*2 |
||
|
节流方式 |
外平衡式能力蒸发器 Thermal expansion valve |
||||||||
|
冷凝器 |
形式 |
壳管式冷凝器 Shell and tube condenser |
|||||||
|
水量 M3/h |
155.5 |
182.3 |
205.7 |
170.4 |
215.0 |
267.9 |
310.9 |
||
|
进出水规格 |
DN150 |
DN150 |
DN200 |
DN150 |
DN200 |
DN200 |
DN200 |
||
|
蒸发器 |
形式 |
壳管式蒸发器 Shell and-tube evaporator |
|||||||
|
水量 M3/h |
129.0 |
151.1 |
170.5 |
148.3 |
178.1 |
221.5 |
258.0 |
||
|
进出水规格 |
DN150 |
DN150 |
DN200 |
DN150 |
DN200 |
DN200 |
DN200 |
||
|
机器尺寸 |
L/mm |
3600 |
3600 |
3600 |
3200 |
3400 |
3600 |
3600 |
|
|
W/mm |
1600 |
1600 |
1600 |
1700 |
1700 |
1700 |
1800 |
||
|
H/mm |
1700 |
1700 |
1700 |
1850 |
1850 |
1850 |
1800 |
||
|
机组重量 |
KG |
3200 |
3450 |
3700 |
3500 |
4000 |
4500 |
5000 |
|

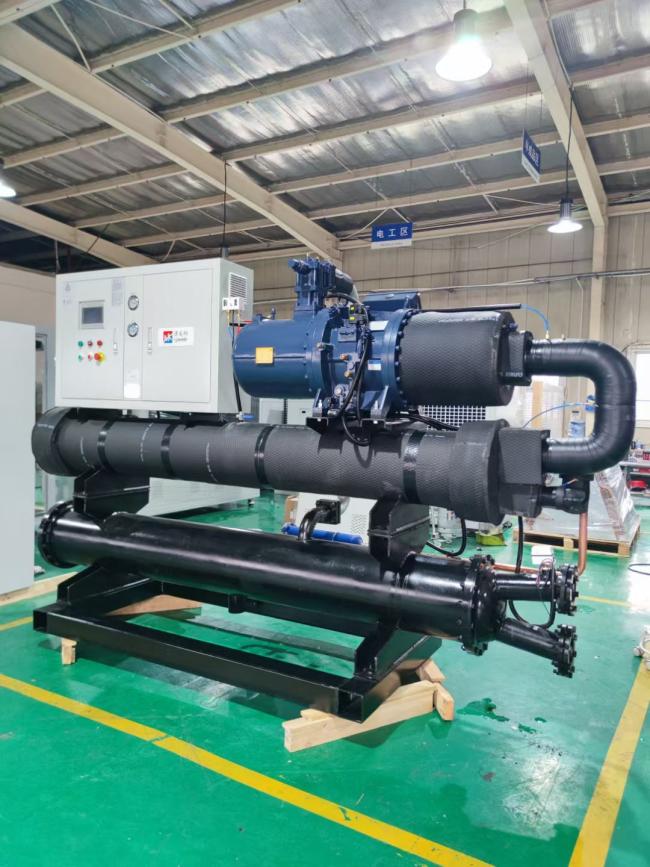

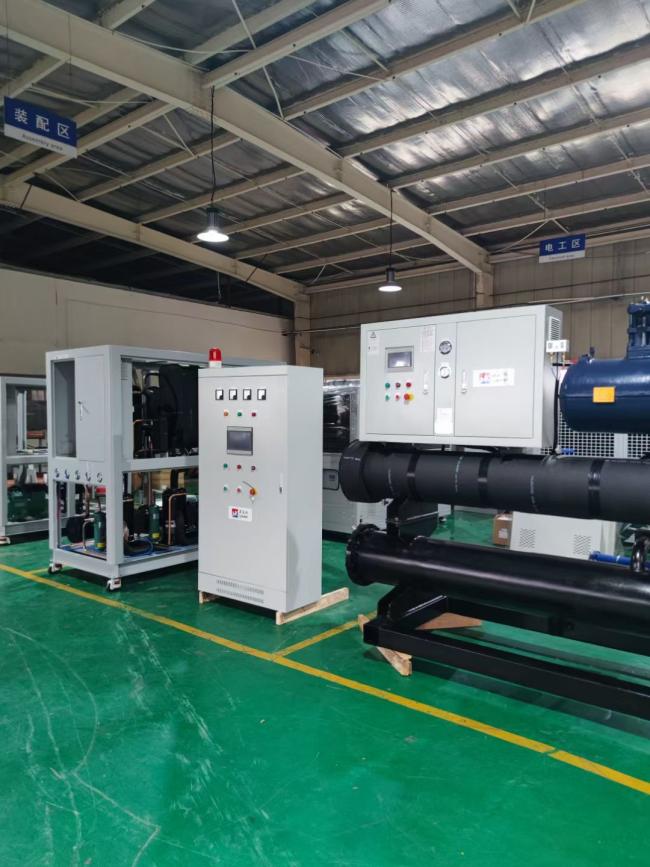

Product Display
