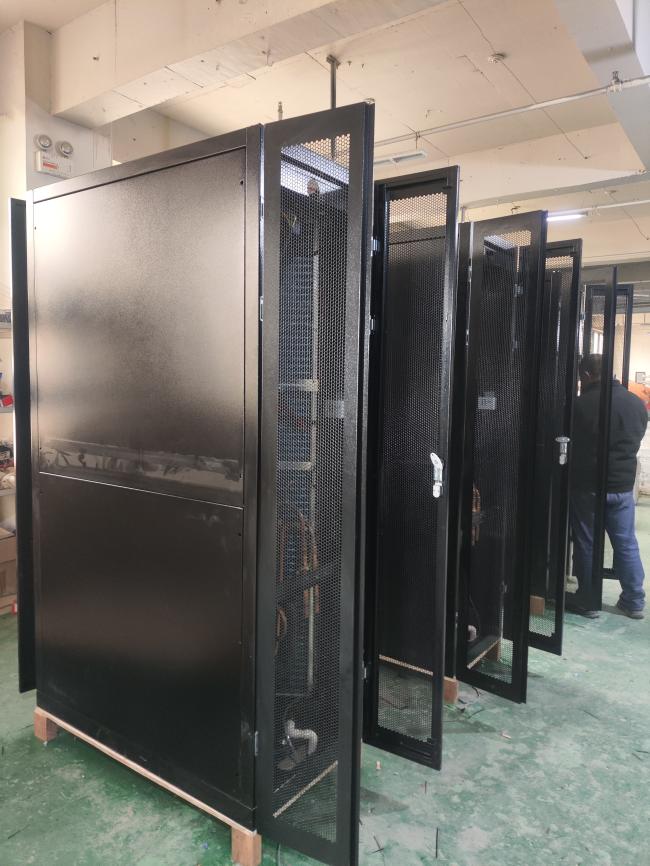

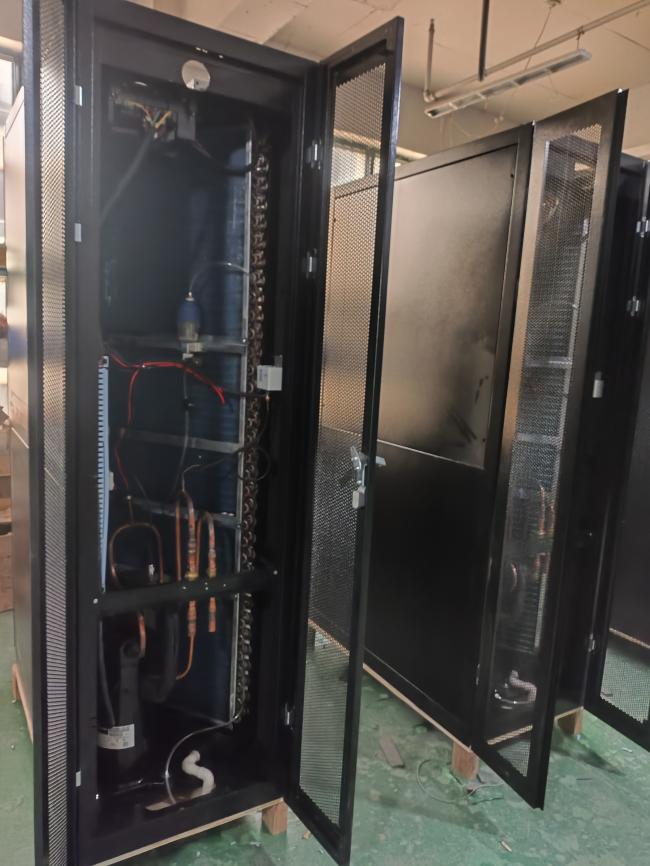

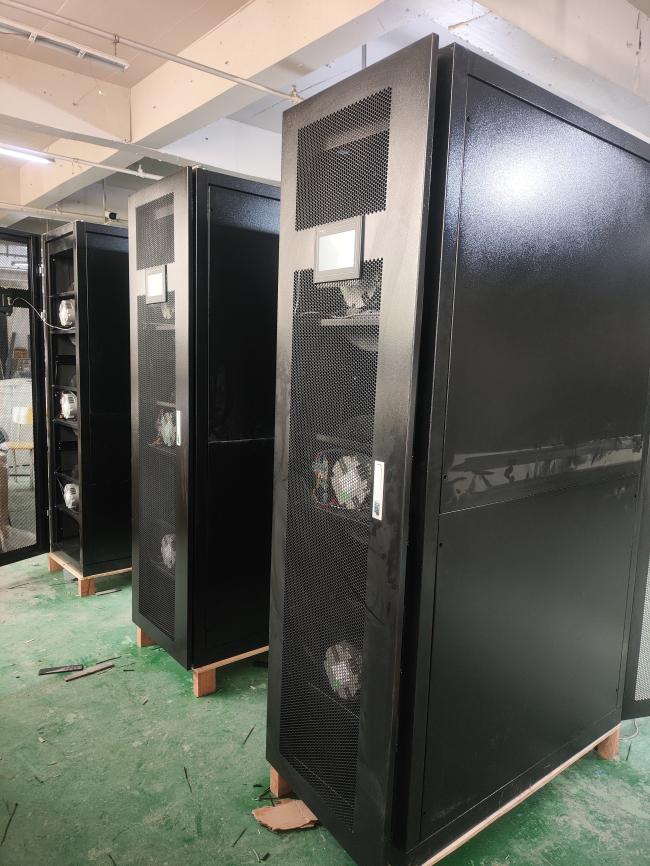

In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 25.2KW

Price Negotiable

Price: Inquiry

MOQ: 1

Delivery Time: 5-8 weeks

Brand: Hailos

Product Description

Description

in-row air condktionerL series is a serles of precision airconditioners for high heat density data centers. It has variaus refrigeratlion methods such as air-cooled direct expansion type and chilled water type. Designed close to the heat source, cosing thecold and hot aisles, greatly improving the cooling effidency, and eftectively reducing the PLE af the equipment room through high AER system design and precise control

Appllcation

Modular Data Center
High Thermal Density Data Center
Container Data Center

Specification

No.	Description		Model
1		Model	L25
2	Unit performance	Air volume (m³/h)	5500
3		Cooling capacity (kW)	25.2
4		Number of compressors (units)	1
5		Operating mode	Constant temperature and humidity type
6		Compressor type	Variable frequency scroll compressor
7		External static pressure (Pa)	50--300
8		Power supply (V)	220V-3Ph-60Hz
9		refrigerant	R410A
10		Expansion valve	Electronic expansion valve
11		Electric heating type	PTC
12		Electric heating power (kW)	3
13		Humidifier type	wet film
14		Humidification rate (kg/h)	3
15		Temperature control range (°C)	18-30
16		Humidity control range (RH%)	45-70
17		Temperature control accuracy (°C)	±2
18		Humidity control accuracy (RH%)	±5
19	Indoor unit	Evaporator type	Copper tube with aluminum fins
20		air filter	G4 Level Initial Effect
21		Indoor fan type	EC
22		External dimensions (mm)	W	300
23			D	1200
24			H	2000
25		Unit weight (Kg)	295
26	outdoor unit	Condenser type	Copper tube sleeve aluminum fin
27		Number of outdoor units (units)	1
28		Outdoor unit weight (Kg)	125
29		External dimensions (mm)	W	850
30			D	550
31			H	1600
32	other	Indoor unit air supply method	Rear intake/front discharge
33		Tracheal tube dimensions (φmm)	19
34		Liquid tube dimensions (φmm)	16
35		Condensate drain pipe (φmm)	19
36		Humidifier water inlet pipe (φmm)	G1/2"
37		It is recommended to use the main cable.	10²3+4²2
38		Cables are used to connect indoor and outdoor units.	2.5²*3
39		Remote control system interface	RS485
40		It has a power failure memory function	Automatic power-on after power failure and reset
