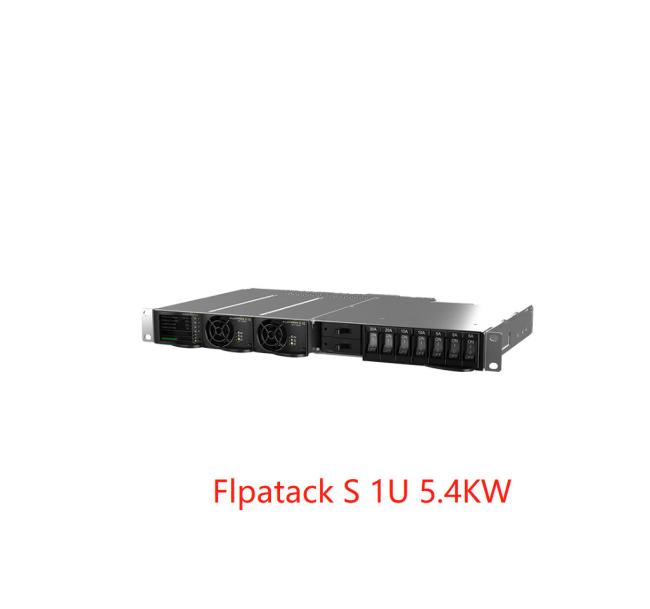

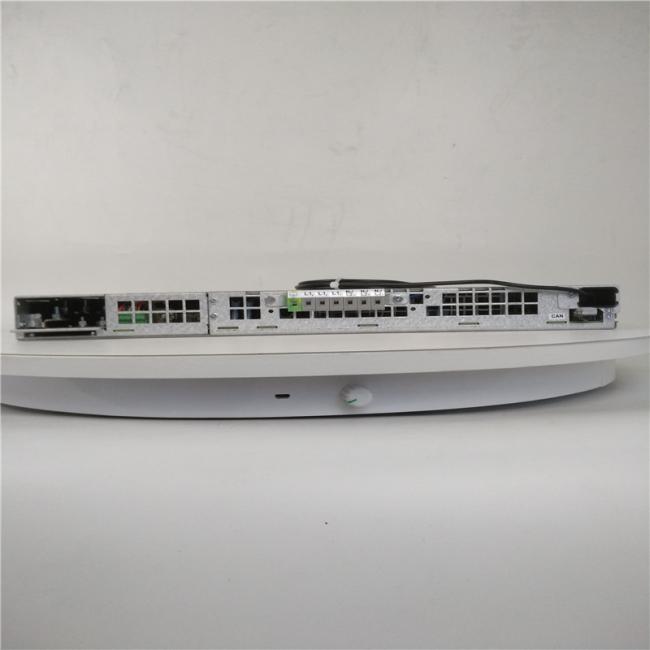

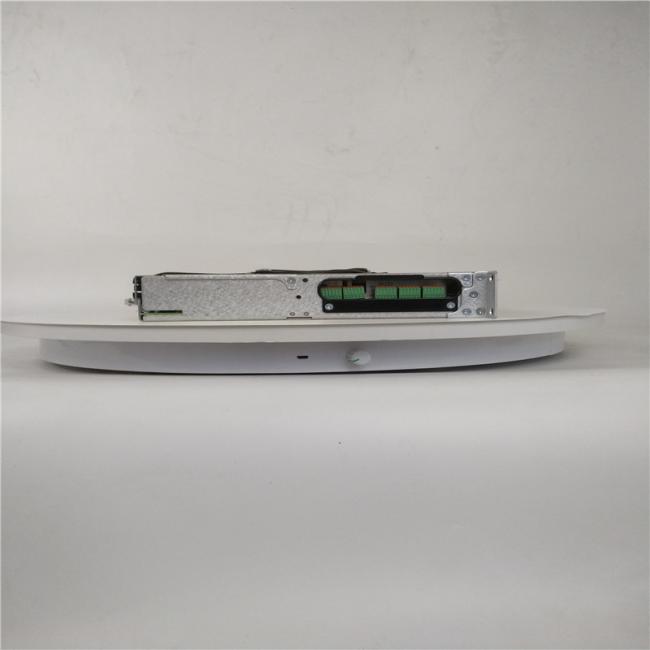

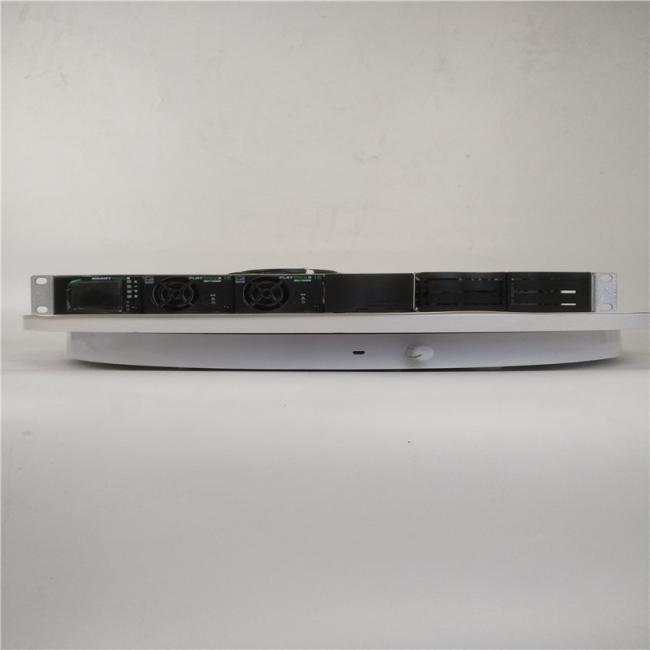

Compact HE Eltek Flatpack S 1U Power Systems 2KW 3.6KW Embedded power supply ( P/N:: CTOS0201.XXX CTOS0301.XXX )
Eltek Flatpack S 1U 3KW 5.4KW DC power system with Flaptack S 48/1000W or Flatpack S 48/1800HE
Compact HE 1U power systems
Increasing network speed demands flexible and expandable DC power solutions. Due to its small size, high efficiency, reliability and wide range of communication, the Flatpack S System is the key for future needs. The shallow depth makes the system suitable for most cabinets and thereby excellent as a replacement unit.
Key features
- Complete system
- SmartpackS controller

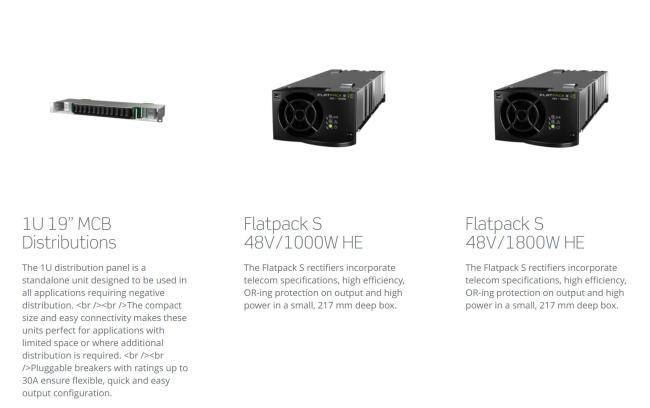

- Rectifiers
- Battery distribution
- Load distribution
- 262 mm system depth
- 1U height
- Hot pluggable rectifiers
- Hot pluggable controller
- Advanced control and monitoring through ethernet port
- 2R (40A)
- Load options
- 7 x 30AMCB drawer (optional LVLD)
- 4 x 30A MCB front
- 7 x 15A fuse front
- 3R (100A)
- Load options
- 2 x 80A
Parameters :
| Model | 1 | Controller + 2 Rectifiers | 1 Controller + 3 Rectifiers |
| Part number | CTOS0201.xxx | CTOS0301.xxx | |
| INPUT DATA | |||
| Voltage | 100 - 250V AC | 100 - 250V AC | |
| Mains Configuration | 230VAC, 1 phase or 2 x 1phase | 230VAC, 3 x 1 phase or 3 phase( ∆) 230/ 400V AC, 3 phase (Y) | |
| Mains Connection | 2,5mm 2 Terminal blocks, rear connection | ||
| Frequency | 45 to 66Hz | ||
| OUTPUT DATA | |||
| Voltage | - 48Vdc | - 48Vdc | |
| Max. Current | 40A | 100A | |
| BATTERY DISTRIBUTION | |||
| LVBD | Default | Default | |
| Breaker (Plug-in type) maximum size | 2 x 40A 1) | 2 x 80A 1) | |
| Connection (rear) | 16mm 2 Terminal blocks | M6 cable lug | |
| LOAD DISTRIBUTION | |||
| Rear connections | N/ A | 2 x 80A, M6 cable lug | |
| Rear cabel entry, front access Connections, screw terminals Optional LVLD |
7 x 3 0A MCB 2) 7 X 4mm 2 on MCB 1 and 2 |
N/ A |
|
|
Front connections Plug-able screw terminals |
4 x 3 0A MCB / 7 x 15A Fuse 4mm2 |
N/ A | |
| CONTROL & MONITORING | |||
| Smartpack S | 6x Input/ Output and Ethernet, See Smartpack S datasheet | ||
| MECHANICAL DATA | |||
| Dimensions (W/ H/ D) |
19"/ 1U/ 262mm Recommended minimum cabinet depth, 300 mm |
||
| Weight, including controller and distributions, excluding rectifiers | 5.3 kg [11.7 lbs] | 5.2 kg [11.5 lbs] | |
| DESIGN STANDARDS | |||
| Electrical safety | UL 60950-1, EN 60950-1 | ||
| EMC |
ETSI EN 300 386 V.1.4.1 EN 61000-6-1 (immunity, light industry) EN 61000-6-2 (immunity, industry) EN 61000-6-3 (emission, light industry) EN 61000-6-4 (emission, industry) |
||
| Environment |
ETSI EN 300 019-2-1 Class 1.2 ETSI EN 300 019-2-2 Class 2.3 ETSI EN 300 019-2-3 Class 3.2 |
||
|
1) If only one string is used, one of the battery breakers can be configured as a load breaker. 2) Drawer solution, front access for actual connection, but cables enters from rear |
|||
