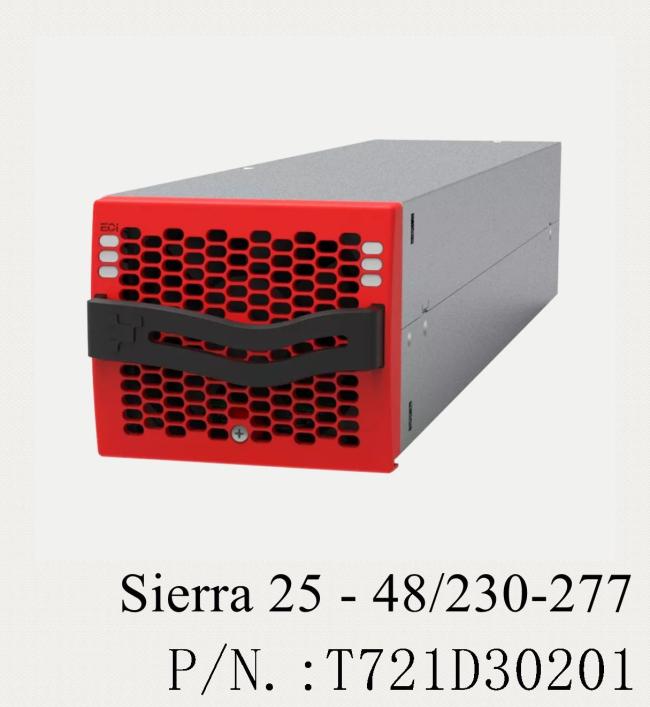

UPS Sierra 25 - 48/230-277 Dc Ac Converter 3KVA 2.7KW 2.7KW To 2MW P/N T721D30201
Sierra 25 – 48/230-277 can be used as a UPS to secure AC & DC loads and charge the batteries.
The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,
phase balancing or energy sharing through DC distribution, among many others.
By using several modules, we can offer solutions for three-phase (3x400Vac + N) infrastructures.
The module can be integrated in small or large cabinets to reach up to 2 MW. With our new Inview S monitoring,
you can benefit from a unique experience.

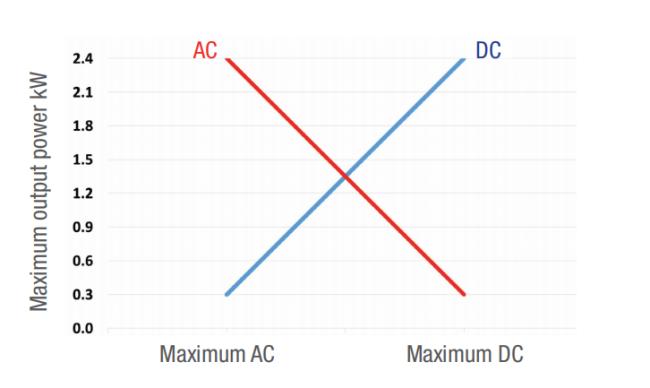

Total output power per module is 2.7 kW 3KVA , limited to 2.4 kW for each AC or DC.
How it works?
At the heart of each module, there is a DC energy buffer. It uses the energy that comes, whatever its source,
to feed what needs it. The total
output power is shared live between the loads and the batteries. It’s that simple! No configuration is required,
you are totally autonomous. Ke
Parameters:
| In/Out: DC voltage (range) | 48 Vdc (32 – 63) |
| In/Out: AC voltage (range) | 208, 230 & 277 Vac (150 – 293 Vac) |
| Output power | 3 kVA / 2.7 kW |
| Efficiency: DC/AC | 93.7% |
| Efficiency: AC/AC | 96% |
| Temperature | -40°C to 65°C |
| Dimension | 2U x 103 mm x 435 mm |
| Part number | T721D30201 |
