LiFePO4 Lithium Battery 36V 48V 60V 72V 30AH 60AH 80AH 120AH OEM Lithium Battery Packs Wholesale For E-Bike/Wheelchair
If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.
Chalong Fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.

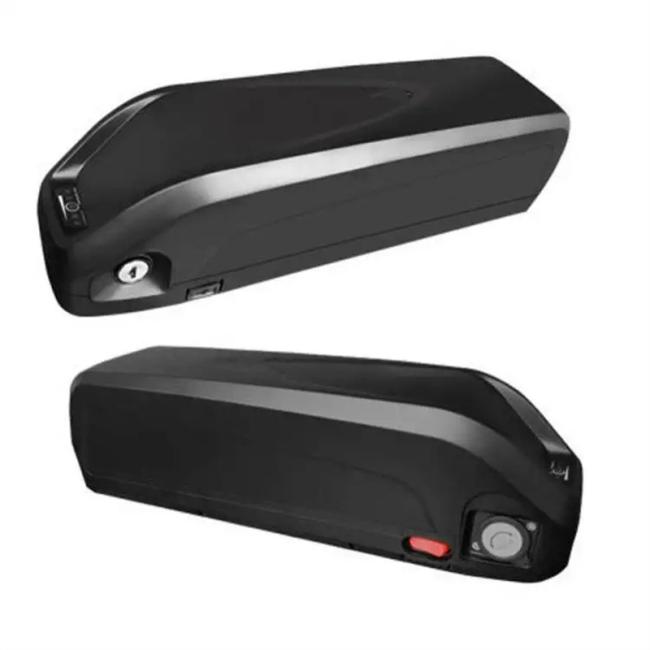

1. Electric Bicycle Battery Features | ||
Model | E-bike Battery | |
Weight | 3.5kg | |
Size | 360mm*92mm*90mm | |
2. Technical Data | ||
Rated Voltage | 36V/48V/52V/customized | |
Cycle Life | 1000 times | |
Charging Time | 7-8 Hours | |
Rated Capacity | 12.5Ah/15Ah/17.5Ah/20Ah | |
Maximum continuous discharge current | 3C | |
Maximum Continuous Charge Current | 1C | |
Size | 360*90*115mm | |
Working temperature | Charge temperature | 0℃~45℃ |
Discharge temperature | -20℃~65℃ | |
Charging data | Way of charge | CC/CV(Constant Current/Constant Voltage) |
Standard charge current | 2A or customized | |
Max charge voltage | 42V or customized | |
Discharging data | continuous discharger current | 20A or customized |
Peak discharge current | 60A or customized | |
Discharge cut-off voltage | 28V | |
3. Safty test | ||
Short circuit safety test | No fire, no explosion | |
Over-charge safety test | ||
Over-discharge safety test | ||
Over-current safety test | ||
Features:
- The battery cells are grade A, AlI of our cells are grade A, and we promise never to use grade B or C. All brand cells can be selected.
- Suitable for high-strength protection boards, the voltage output is stable and supports current (protection the board is used according to battery output) to prevent overcharge, over-discharge, and short circuits.
- You can add boards and wires and different interfaces according to customer requirements. Please contact online customer service for details
- Custom charger: The charger plug adapter can be customized according to your country or your requirements.
FAQ:
Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.
Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.
Q3. Can I have a sample order first?
A: Yes, sample order is acceptable.
Q4. How will my order be shipped?
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.
Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Q6. Can we sign a NDA in order for a long-term cooperation?
A: Yes, the client’s requirements is respected.
O7: Is there any warranty or After-Sale Service?
A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.
Q8. Why do you choose Chalong Fly?
A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
Contact us for more informations!
