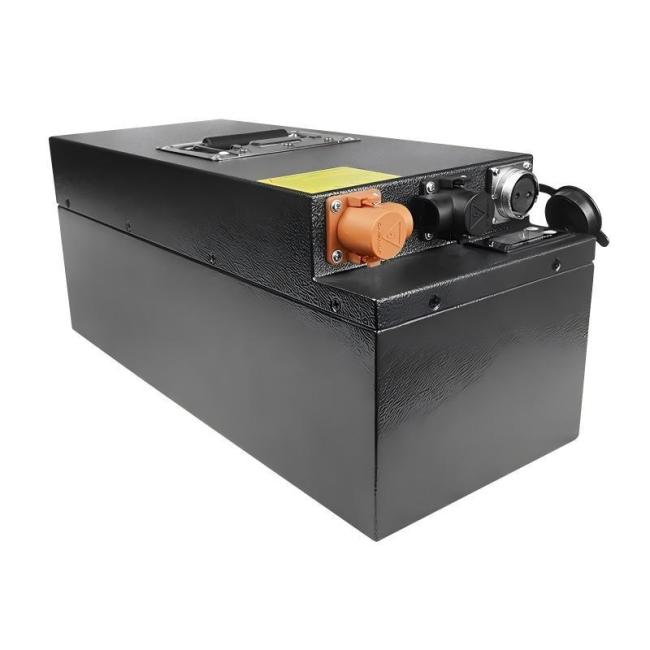

CLF Square Lithium Battery Pack 24V 80Ah High-Power Energy Storage Lithium-Ion External Battery
Our 24V 80Ah square lithium battery pack is an advanced power solution designed for high-power energy storage needs. Utilizing the latest lithium-ion technology, it delivers stable and reliable power support, widely used in outdoor operations, emergency power supply, mobile equipment, and off-grid energy storage systems.

-
80Ah High Capacity: Provides 1920Wh of large energy storage to meet long-term power demands
-
24V Standard Voltage: Compatible with most industrial equipment and appliances, no additional conversion needed
-
Continuous High Discharge: Supports stable operation of high-power equipment
-
Peak Power Output: Meets instant high-load startup requirements
-
Square Battery Design: High space utilization, stable structure
-
Multi-Protection System: Comprehensive protection against overcharge, over-discharge, short circuit, and overtemperature
-
Shock and Impact Resistant: Durable housing suitable for various environments
-
High Energy Conversion Efficiency: Over 95% conversion efficiency, minimizing energy loss
-
Smart BMS: Real-time battery status monitoring, extended service life
-
Eco-Friendly Materials: Compliant with RoHS standards, green and recyclable
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC |
| Nominal Capacity | 80Ah |
| Energy | 1920Wh |
| Cycle Life | ≥2000 cycles (80% capacity retention) |
| Charging Temperature | 0°C ~ 45°C |
| Discharging Temperature | -20°C ~ 60°C |
| Max Continuous Discharge Current | 80A |
| Peak Discharge Current | 120A (≤30 seconds) |
| Protection Rating | IP65 (Dustproof and Waterproof) |
| Dimensions | Approx. 340×260×185mm |
| Weight | Approx. 12.5kg |


High-Quality Cells: Grade A lithium-ion cells with high consistency
Professional Assembly: Laser welding, low internal resistance design
Strict Quality Control: Each battery undergoes 72-hour testing before shipment
Comprehensive After-Sales: 18-month warranty, technical support services
Complete Certifications: UN38.3, CE, RoHS certified
-
RV, yacht power systems
-
Outdoor photography, camping power support
-
Mobile workstations, emergency rescue
-
Solar energy storage systems
-
Home emergency backup power
-
Small commercial off-grid power supply
-
Centralized power supply for electric tools
-
Backup power for communication base stations
-
Power assurance for medical equipment
