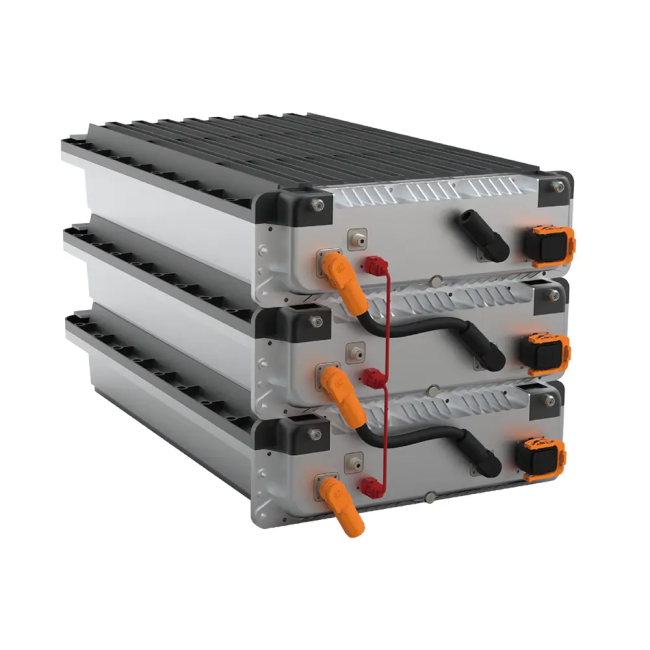

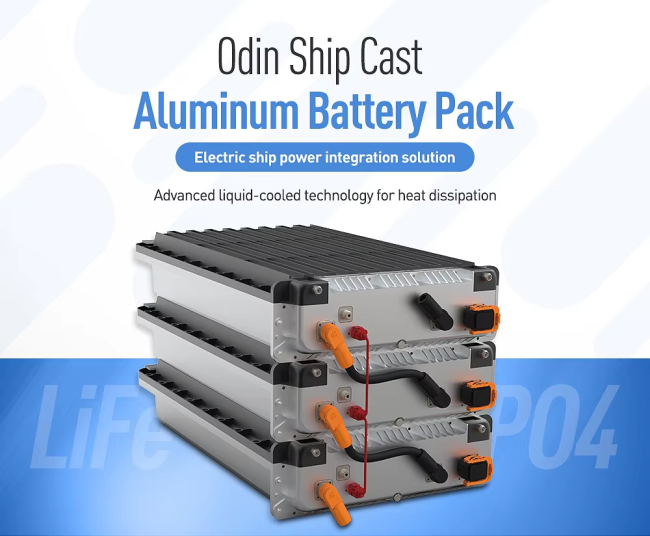

CLF 51.2-870.4V/50-322Kwh LiFePO4 Battery With BMS And Fast Charge For Power Traction Electric Ship Marine Custom
PRODUCT PARAMETER
| Specification | 1P16S | 1P32S | 1P48S | 2P48S |
| Number of Battery Packs | 1 | 2 | 3 | 6 |
| Rated Voltage (V) | 51.2 | 102.4 | 153.6 | 153.6 |
| Rated Capacity (Ah) | 150/175 | 150/175 | 150/175 | 300/350 |
| Rated Power (Kwh) | 7.68/8.96 | 15.36/17.92 | 23.04/26.88 | 46.08/53.76 |
| Weight (kg) | ≈99 | ≈198 | ≈297 | ≈594 |
| PDU Type | A | A | A | B |
| Specification | 3P48S | 1P96S | 2P96S | 3P96S |
| Number of Battery Packs | 9 | 6 | 12 | 18 |
| Rated Voltage (V) | 153.6 | 307.2 | 307.2 | 307.2 |
| Rated Capacity (Ah) | 450/525 | 150/175 | 300/350 | 450/525 |
| Rated Power (Kwh) | 69.12/80.64 | 46.08/53.76 | 92.16/107.52 | 138.24/161.28 |
| Weight (kg) | ≈891 | ≈594 | ≈1188 | ≈1782 |
| PDU Type | B | A | B | B |
| Specification | 1P192S | 2P192S | 3P192S | 2P192S |
| Number of Battery Packs | 12 | 24 | 36 | 17 |
| Rated Voltage (V) | 614.4 | 614.4 | 614.4 | 870.4 |
| Rated Capacity (Ah) | 150/175 | 300/350 | 450/525 | 150/175 |
| Rated Power (Kwh) | 92.16/107.52 | 184.32/215.04 | 276.48/322.56 | 130.56/152.32 |
| Weight (kg) | ≈1188 | ≈2376 | ≈3564 | ≈1683 |
| PDU Type | A | B | B | A |
- C5 Protection: comprehensive advancedprotection,safe,reliable and stable
- Liquid cooling: ensure the stability ofhigh load operation
- High defense: integrated cast aluminummolding, easy to resist 20G impact
- Unit insulation: insulation up to 5500Vhigh safety factor
- Isolation design: key components aresealed and isolated from each other
- High security: one-way breathing valveprevents entry of foreign objects
FAQs
Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.
Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.
Q3. Can I have a sample order first?
A: Yes, sample order is acceptable.
Q4. How will my order be shipped?
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.
Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Q6. Can we sign a NDA in order for a long-term cooperation?
A: Yes, the client’s requirements is respected.
Q7. Why do you choose Chalong Fly?
A: Chalong Fly R&D center has more than 100 R&D engineers, 25 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
