CLF LiFePO4 Lithium Battery OEM ODM 12V 72V 96V 100AH 200AH Lithium Ion Lifepo4 Battery Pack for Marine Energy Solutions
|
ELECTRICAL SPECIFICATIONS |
|
| Cell Type - Chemistry | Prismatic- LiFePO4 |
| Rated Capacity | 50Ah |
| Rated Voltage | 76.8V |
| Energy | 3.84kWh |
| Resistance | 30mΩ |
| Self Discharge | <4% per month |
| Modules in Series | 4S1P to 307.2V 50Ah battery pack |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 500*370*160 |
| Weight | 32Kg/module |
| Enclosure Protection | IP67 |
| DISCHARGE/CHARGE SPECIFICATIONS | |
| Discharge Cut-off Voltage | 60V |
| Max Continuous Discharging Current | 50A |
| Peak Discharge Current | 100A for 30 seconds |
| Recommended Discharge Current | 50A |
| CHARGE SPECIFICATIONS | |
| Charging Limited Voltage | 87.6V |
| Max Charging Current | 50A |
| Recommended Charge Current | 25A |
| TEMPERATURE SPECIFICATIONS | |
| Charge Temperature Range | 0~45ºC |
| Discharge Temperature Range | -20~60ºC |
| Recommended Operating Temperature | 15~35ºC |
| Storage Temperature & Humidity Range (Less than 1 month) |
-20~35ºC, 45~75%RH |
| Storage Temperature & Humidity Range (Less than 3 months) |
-10~35ºC, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35ºC, 45~75%RH |
| OEM | |
| Available on request | yes |

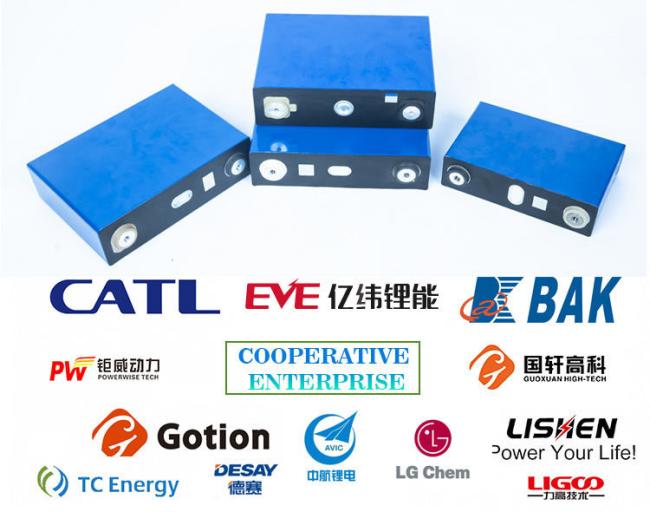

Top Automotive-Grade Cells
We have established long-term partnerships with leading battery cell brands such as EVE, BAK, and Lishen. We carefully select lithium iron phosphate cells that meet automotive-grade standards and ensure consistency through rigorous screening to provide customers with reliable battery solutions that are highly stable and have a long life (≥ 6,000 cycles).
Intelligent BMS
Our BMS employs automotive-grade core chips and features a dual hardware-software architecture to provide multi-layer safety protection (over-charge/discharge, over-current, short circuit, and temperature anomalies). With high-precision cell balancing and support for CAN/RS485 communication protocols, it enables real-time monitoring of voltage, temperature, SOC, and other critical data, delivering full lifecycle intelligent management for the battery pack.
- Lighter weight, smaller size.
- High-temperature performance.
- Extremely safe, no explosion, no fire under collision.
- Strong over-discharge resistance and charge retention.
- Strong charging acceptance and quick-charging capability.
- Excellent large current discharge performance especially in startup and climbing.
- Large capability and long life for all high-power output applications.
- Environmentally friendly non-toxic, non-contaminating, no rare metal.
- Low self-discharge and good discharge performance at low temperatures.
If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.

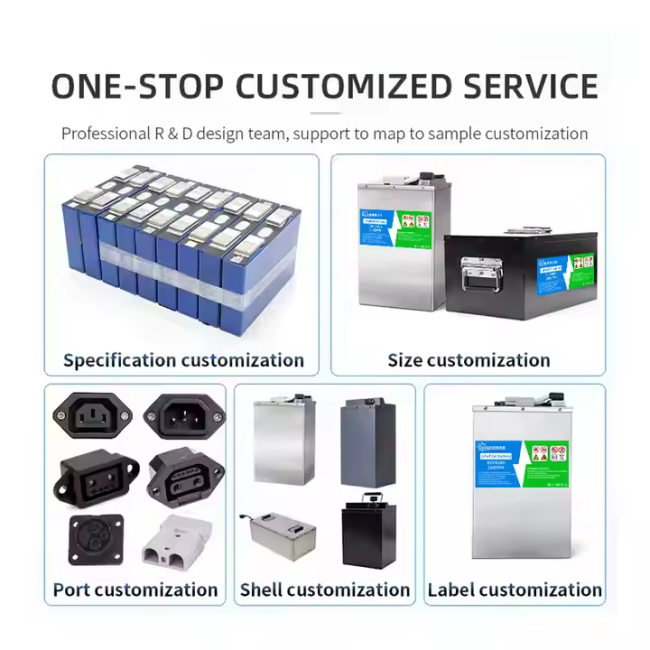

Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
