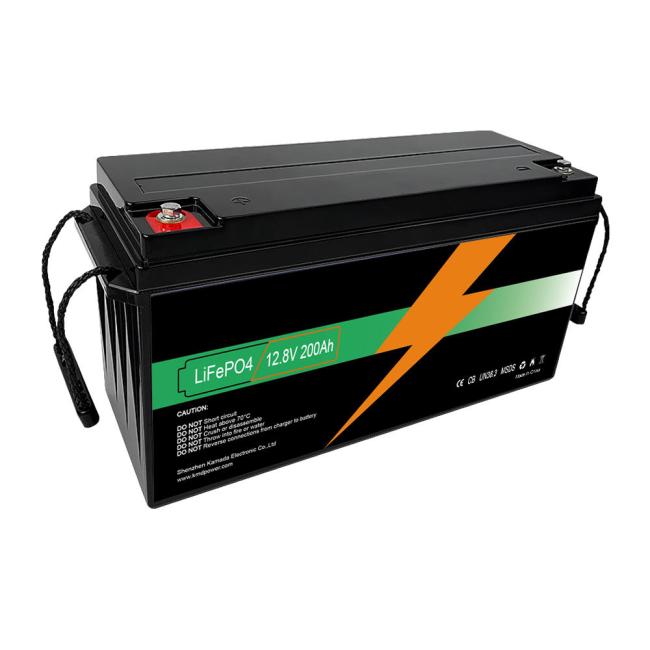

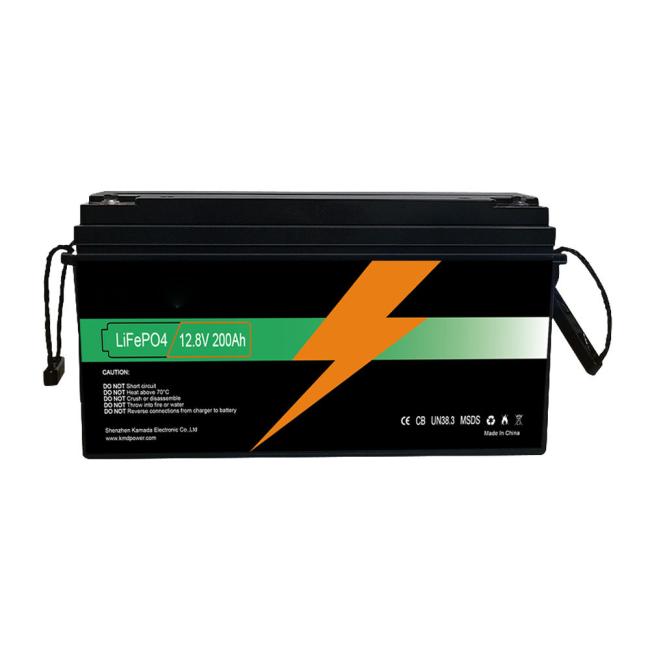

Factory 12V 24V Lithium Battery Pack Power Batteries 24v 50Ah 100Ah 200ah 300Ah Lifepo4 Lithium Ion Batteries
| Parameter | Value |
|---|---|
| MODEL | 12200 |
| Cell Type - Chemistry | Prismatic- LiFePO4 |
| Rated Capacity | 200Ah |
| Rated Voltage | 12.8V |
| Energy | 2.56KWh |
| Resistance | 30mΩ |
| Self Discharge | <3% per month |
| BMS | Bluetooth / Display optional |
| Dimensions (L x W x H) | L1300*W500*H380mm (Can make it smaller if you want) |
| Weight | 19Kg |
| Enclosure Protection | ABS |
| Discharge Cut-off Voltage | 10V |
| Max Continuous Discharging Current | 200A |
| Peak Discharge Current | 250A for 10 seconds |
| Recommended Discharge Current | 200A |
| Charging Limited Voltage | 14.8V |
| Max Charging Current | 100A |
| Recommended Charge Current | 50A |
| Charge Temperature Range | 0~50℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
-
High Energy Density
1/3 the weight & 1/2 the size of lead-acid for equivalent capacity. Increases payload, extends range, and saves critical onboard space.
-
Long Life & Low Total Cost
5-10x longer cycle life (2000-5000+ cycles). Higher upfront cost is offset by minimal maintenance and replacement needs, offering superior lifetime value.
-
Fast Charging & High Power
Charges 2-3x faster than lead-acid. Supports high-rate discharges for powerful thrust and stable voltage, ensuring strong performance for propulsion and heavy equipment.
-
Maintenance-Free & Safe
No watering, equalizing, or acid leaks. Integrated Smart BMS provides real-time monitoring and full protection (over-charge/discharge, temperature, short circuit).
-
Silent & Clean Operation
Enables zero-emission electric propulsion and generator-free silent anchoring. Ideal for sensitive environments and enhances onboard comfort.
-
Pure Electric Propulsion: Ferries, tour boats, workboats, yachts.
-
Hybrid Propulsion Systems: Tugboats, fishing vessels, research ships.
-
Hotel & Auxiliary Loads: Powers AC, galley, and electronics without running generators.
-
Thruster & DP Power: Reliable, high-quality power for dynamic positioning and deck machinery.
-
Backup & Safety Systems: Lightweight, reliable power for emergency systems.
