147.2V 600Ah Marine Lithium Battery with 600A Peak Discharge and 600Ah Rated Capacity for Electric Boats
147.2V 600Ah Marine Lithium Battery with 400A Peak Discharge and 304Ah Rated Capacity for Electric Boats
Product Parameter| Items | Parameter |
|---|---|
| Battery Cell Composition | LiFePo4 |
| Nominal Voltage(V) | 147.2 |
| Nominal Capacity(Ah) | 600士3% |
| Energy(kWh) | 88.32土3% |
| Dimensions(mm) | 1037*320*260*2 PDU:425*275*135 |
| Weight(kg) | 60士5% |
| Operating Voltage(V) | 115-167.9 |
| Max Continuous Discharge Current(A) | 500A |
| Max Peak Discharge Current(A) | 600A(25℃,30s) |
| Max Continuous Charging Current(A) | 200A(25℃) |
| Max Peak Charging Current(A) | 300A(25℃,30s) |
| Operating Temperature(℃) | -20~55 |
| IP Rating | IP67 |
| BMS | Yes |
| Heating System | Yes |
| Communications System | CAN Bus |
| Optional Accessories | 7inch display |
| Charging Time(h) | 6(6kW Charger) |

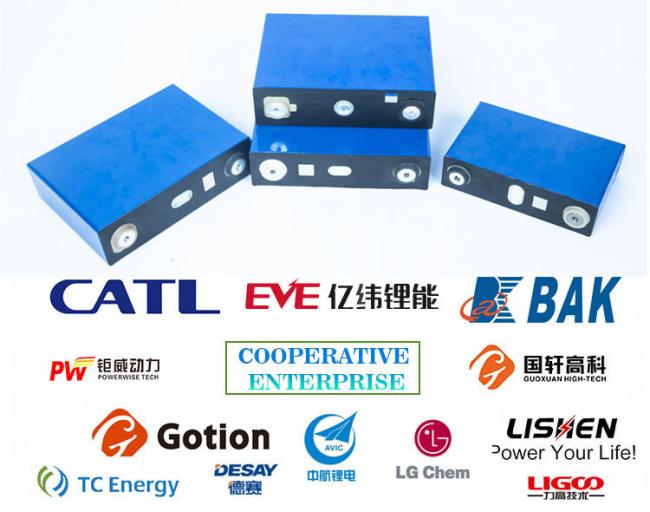

We have established long-term partnerships with leading battery cell brands such as EVE, BAK, and Lishen. We carefully select lithium iron phosphate cells that meet automotive-grade standards and ensure consistency through rigorous screening to provide customers with reliable battery solutions that are highly stable and have a long life (≥ 6,000 cycles).

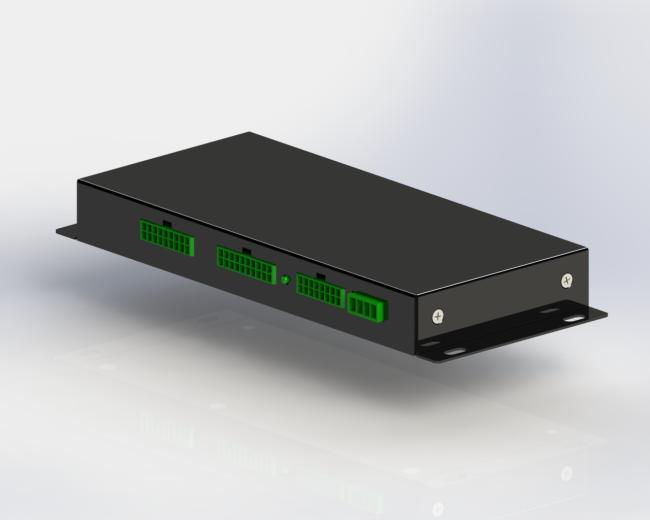

Our BMS employs automotive-grade core chips and features a dual hardware-software architecture to provide multi-layer safety protection (over-charge/discharge, over-current, short circuit, and temperature anomalies). With high-precision cell balancing and support for CAN/RS485 communication protocols, it enables real-time monitoring of voltage, temperature, SOC, and other critical data, delivering full lifecycle intelligent management for the battery pack.

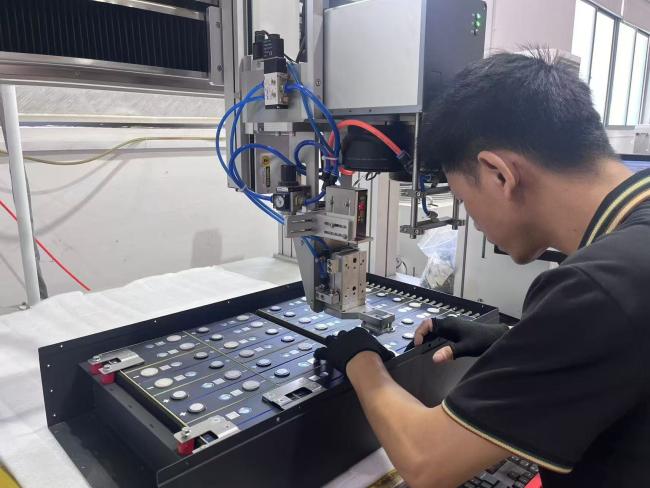

Laser welding further strenathens the connection and completely eliminates the risk of screws falling out. The contact surface between the screw and the busbar is reduced, which improves the current capability and also reduces internal resistance and power consumption.

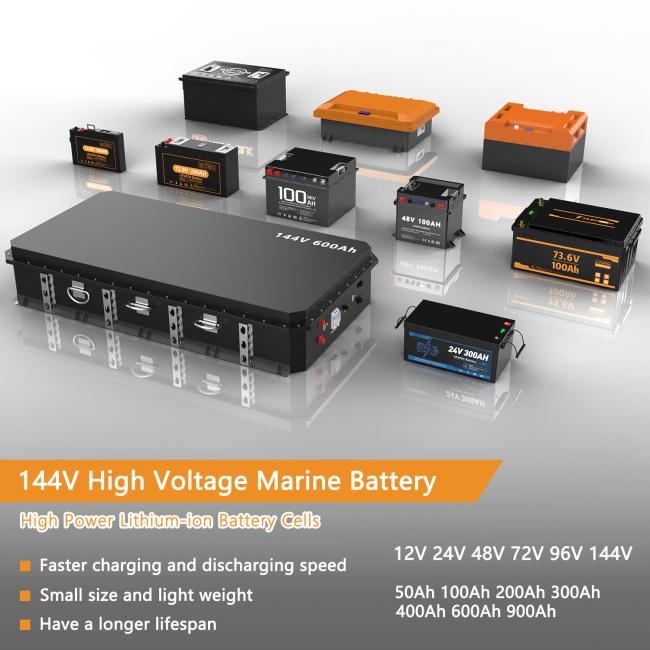

Built to meet the demands of modern electric and hybrid vessels, our 144V 600Ah marine lithium battery delivers both high capacity and powerful performance. With 600A peak discharge capability, this system supports a wide range of marine applications for a cleaner, quieter experience on the water.
Perfect For:
-
Electric Boats & Ferries: Provides reliable power for daily operations and extended cruising
-
Yachts & Cruisers: Supports onboard systems and comfortable liveaboard journeys
-
Fishing & Work Boats: Delivers instant power for equipment and sudden acceleration needs
-
Hybrid Systems: Serves as efficient energy storage in hybrid propulsion setups
If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.
Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.
Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.
Q3. Can I have a sample order first?
A: Yes, sample order is acceptable.
Q4. How will my order be shipped?
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.
Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Q6. Can we sign a NDA in order for a long-term cooperation?
A: Yes, the client’s requirements is respected.
O7: Is there any warranty or After-Sale Service?
A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.
Q8. Why do you choose Chalong Fly?
A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
