EcoVolt 192V 230Ah Marine Lithium Battery | Safe LiFePO4 | Marine Power Solution
EcoVolt 192V 230Ah marine lithium battery features LiFePO4 cells and a smart BMS, offering 4000+ cycles. Designed for fishing boats, yachts, and commercial vessels. Contact us for custom solutions!

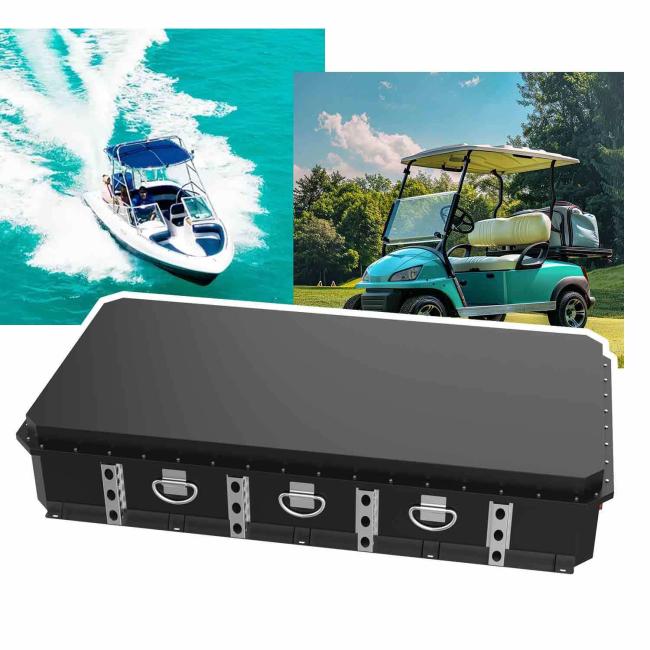

The EcoVolt 192V 230Ah marine lithium battery is a high-performance power solution designed for demanding marine environments. Utilizing automotive-grade LiFePO4 cells, it offers high energy density and reliability. The built-in smart BMS provides comprehensive protection, making it an ideal replacement for traditional lead-acid batteries and delivering lasting green power for your vessel.
| Parameter | Value |
|---|---|
| Nominal Voltage | 192V |
| Nominal Capacity | 230Ah @ 0.5C |
| Energy | 44.16 kWh |
| Cell Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >4000 cycles @ 80% DOD |
| Operating Voltage Range | 150V – 218.4V |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge Current | 150A |
| Peak Discharge Current | 300A (for 10s) |
| Built-in BMS | Yes (Over-voltage, Under-voltage, Over-current, Short-circuit, Temperature protection) |
| Communication Port | CAN / RS485 (optional) |
| Weight | Approx. 280 kg |
| Dimensions (L x W x H) | 800 x 600 x 300 mm |
| Ingress Protection | IP67 (waterproof and dustproof) |
| Operating Temperature | Charge: 0°C~55°C / Discharge: -20°C~60°C |
| Certifications | CE, UN38.3, MSDS |
- Ultra-Long Cycle Life: With high-quality LiFePO4 cells, the battery offers over 4000 cycles at 80% depth of discharge (DOD)—more than 4 times longer than lead-acid batteries, significantly reducing replacement costs.
- Multi-Level Safety Protection: The built-in smart BMS monitors voltage, current, and temperature in real time, providing protection against over-charge, over-discharge, over-current, short circuit, and over-temperature.
- High Energy Density & Lightweight: 60% lighter than lead-acid batteries of equivalent capacity, saving space on board, reducing fuel consumption, and improving vessel speed.
- Wide Temperature Range & Marine Durability: IP67 waterproof and dustproof rating, resistant to humidity and salt spray, and operates reliably from -20°C to 60°C.
- Intelligent Communication & Monitoring: Supports CAN/RS485 communication, allowing integration with onboard displays to monitor SOC, SOH, voltage, temperature, etc.
- Fishing Vessels: Provides stable power for trawling, longlining, etc., with silent and emission-free operation.
- Yachts: Powers onboard appliances, navigation equipment, and propulsion systems, enhancing cruising comfort.
- Commercial Passenger Boats: Meets frequent start-stop and high-power propulsion demands while reducing maintenance costs.
- Solar/Wind Energy Storage: Can be used as an energy storage unit for off-grid vessels combined with renewable sources.
![]()
Why Choose Our Marine Lithium Batteries
Your reliable partner for marine power solutions. We adhere to strict quality control standards with international certifications, provide 5-year warranty coverage, and offer professional after-sales service. Whether you're a personal angler or marine equipment manufacturer, we deliver high-quality, cost-effective marine lithium battery solutions. Contact us today for customized quotes!
