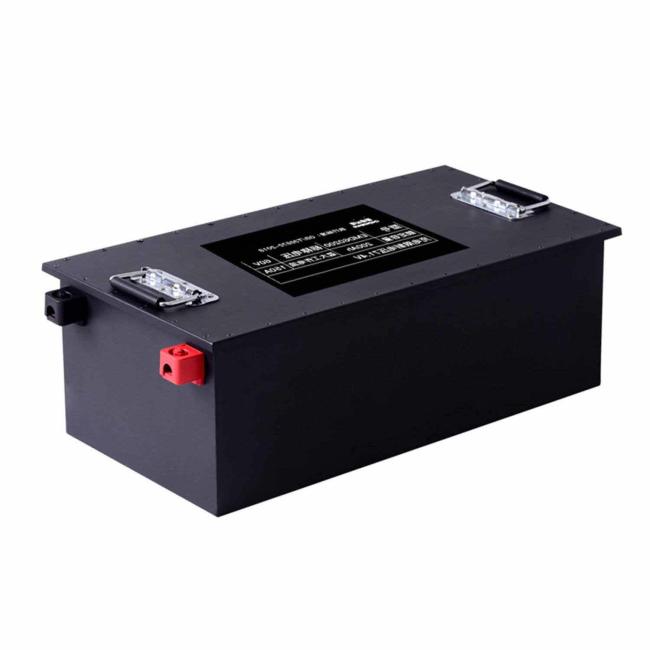

72V 100Ah LiFePO4 Battery – 3000+ Cycles for Electric Tricycle
This 72V 100Ah LiFePO4 battery is specifically designed for electric tricycles, cargo trikes, passenger tuk-tuks, and low-speed electric vehicles. With 7.68kWh energy storage, it delivers 150-200 km range per charge and supports motors above 3000W. The built‑in smart BMS ensures safety and longevity – 5‑8 years of service life, making it the perfect lead‑acid replacement.
-
High Capacity & Long Range – 100Ah capacity delivers 150-200 km per charge, reducing frequent recharging.
-
High Power Output – 72V high‑voltage platform with 200A peak discharge, handles heavy loads and steep hills.
-
3000+ Cycle Life – LiFePO4 cells last 5‑8 years, 5‑8 times longer than lead‑acid.
-
Smart BMS Protection – Over‑charge, over‑discharge, over‑current, short‑circuit, and over‑temperature protection with real‑time monitoring.
-
Lightweight Design – Over 50% lighter than lead‑acid, increasing payload capacity.
-
Wide Temperature Operation – Discharge from -20℃ to 60℃, suitable for extreme climates.
| Parameter | Value |
|---|---|
| Nominal Voltage | 73.6V / 76.8V (depending on cell configuration) |
| Nominal Capacity | 100Ah |
| Total Energy | 7.68 – 7.987 kWh |
| Cell Type | LiFePO₄ (Lithium Iron Phosphate) |
| Cycle Life (80% DoD) | ≥3000 – 3500 cycles |
| Weight | 54 – 68.5 kg (119 – 151 lbs) |
| Dimensions (L*W*H) | 520*470*150 mm to 680*400*160 mm |
| Max. Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A (≤30s) |
| Max. Charge Current | 50A |
| Charge Cut‑off Voltage | 83.95V |
| Discharge Cut‑off Voltage | 57.5V |
| Charge Temperature | 0℃ ~ 45℃ |
| Discharge Temperature | -20℃ ~ 60℃ |
| Enclosure Material | Stainless steel / Metal sheet |
| Recommended Motor Power | ≤3000W |
| Communication (Optional) | CAN, RS485, Bluetooth, 4G |
| Certification | CE, UN38.3, MSDS, ISO9001 |
-

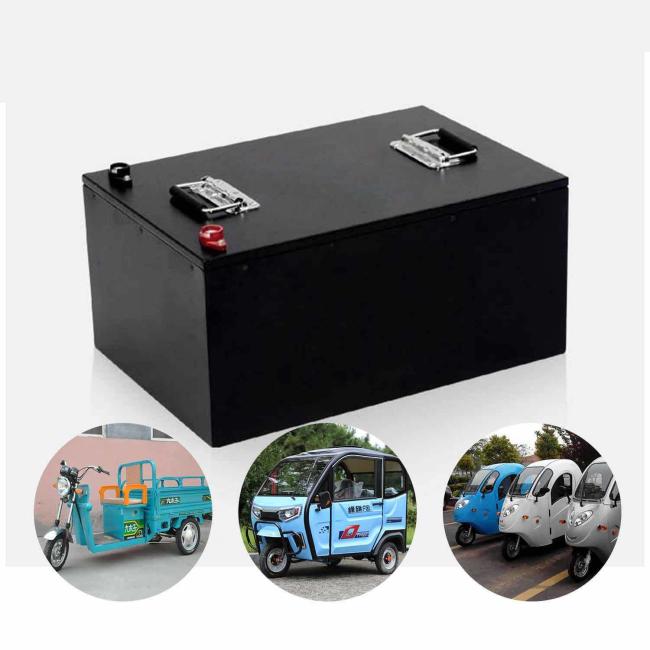

Delivery & logistics cargo tricycles
-
Passenger tricycles / tuk-tuks
-
Agricultural tricycles (hilly & muddy terrain)
-
Municipal service tricycles (waste collection, patrol)
-
Low-speed electric vehicles (golf carts, tour carts)
-
Battery‑swapping stations for shared mobility
-
Q1: Is this 60V 58Ah battery suitable for my electric tricycle?
A1: Yes, it fits most 60V electric tricycle systems. Please confirm your vehicle voltage before purchase to avoid incompatibility.
-
Q2: What is the cycle life of this battery?
A2: It can support more than 1500 charge-discharge cycles. Under normal use, it can meet long-term use needs and greatly reduce the replacement frequency.
-
Q3: Does the battery come with BMS protection?
A3: Yes, built-in smart BMS provides full safety protection against overcharge, over-discharge, over-current and short circuit.
-
Q4: What is the charging time?
A4: With a standard charger, it takes about 6-8 hours to fully charge; if using a fast charger, the charging time can be appropriately shortened (subject to charger parameters).
-
Q5: Can I customize the size or connector of the battery?
A5: Yes, we accept customized dimensions, connector types and wiring methods, which can be personalized according to your specific needs.
-
Q6: What is the operating temperature range of the battery?
A6: It works stably from -20℃ to 60℃, which can work stably under different climate conditions such as cold and hot, suitable for use in different regions.
-
Q7: What is the weight of the battery?
A7: It is the weight of the standard version. The specific weight can be adjusted according to customized needs. For detailed weight parameters, please contact customer service for consultation.
